BAER BRAKEPART NUMBER: 136-4301680R

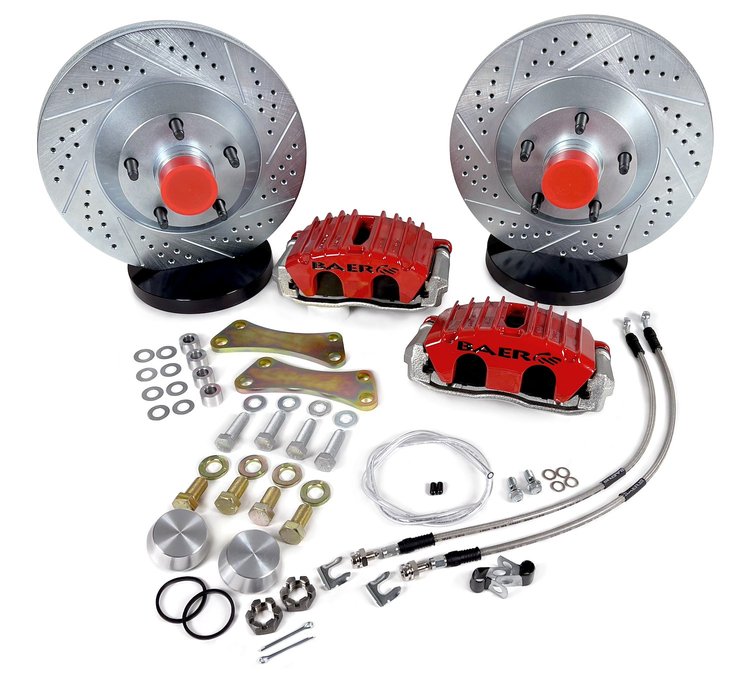

4301680R 13 in. Classic Series Front Brake Kit
$1,11795
13 in. Classic Series Front Brake Kit
Baer Brake 4301680R Features:

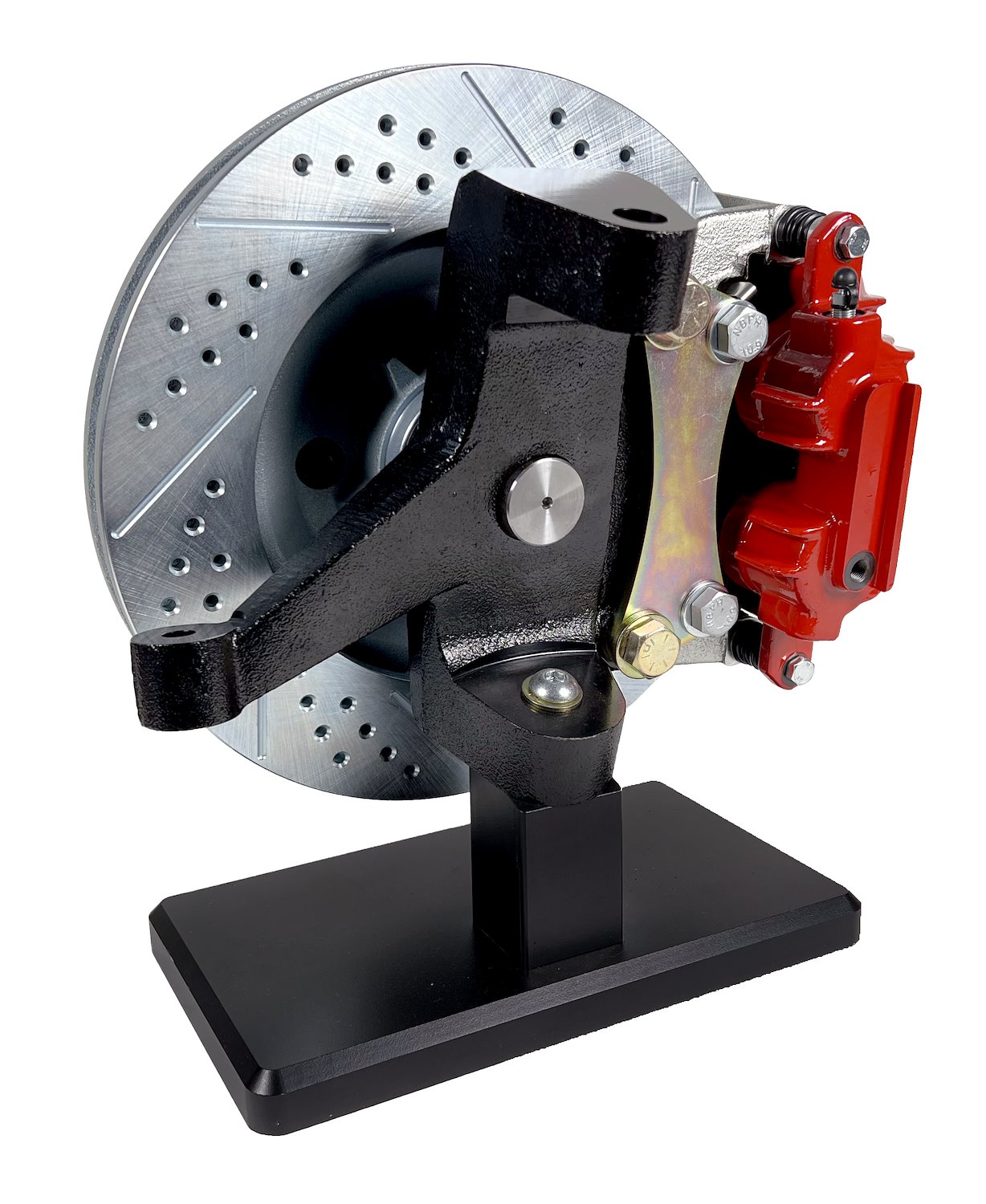

This Classic Series brake kit features an aluminum. 2-piston, pin drive caliper (PDC) mounted to a 13.150 in., 1-piece slot, drill, zinc plated integral hub rotor and is designed to fit vehicles using the CPP 2.5 in. nodular iron drop spindles. The caliper comes in a red powder coated finish with the Baer logo painted black, includes dust & weather seal's and uses the popular D0731 pad type. Rotors are ready to install with races installed and bearings packed with Redline synthetic grease. Dust caps, mounting brackets, stainless braided hoses and all necessary hardware are also included. This 13 in. Classic Series system fits most 17 in. or larger wheels.- Aluminum, 2-Piston, Pin Drive Caliper
- Red Powder Coated Caliper w/Black Baer Logo
- Slot, Drill, Zinc Plated Rotor Finish
- Stainless Braided Brake Hoses
- Uses Common FMSI D0731 Brake Pad
- Modern Brakes for Small Wheels at an Economical Price
Part TypeBrake Conversion Kit
BrandBAER BRAKE
Package Height9.0
Package Width15.5
Package Length15.5
Weight44.0 PG
Part CategoryPerformance Parts
Rotor Type1-Piece Integral Hub
Caliper Piston Quantity2
PositionFront
Friction Material CompositionCeramic
Solid Or Vented Type RotorVented
Front Rotor StyleVented
Brake Hose Dot ApprovedYes
Caliper TypeFloating
Caliper ColorRed
Rotor Diameter13.150
Disc Brake Pad Fmsi NumberD0731
Bolt Pattern5x5.00
Rotor Thickness1.150
Wheel Stud Size1/2-20 x 2.25 inch
Front Rotor Diameter13.150
Surface TypeSlotted, Drilled & Zinc Plated
Part FitmentDirect Fit
Hose MaterialStainless Steel
Notesw/CPP 2.5 inch Drop Modular Spindle (5 Lug, 5x5BC), Fits CPP 2.5" nodular drop spindles: CP30106-1 (1960-1962 C10), CP30106-2 (1963-1970 C10), CP30106-3 (1971-1972 C10) or CP30106-4 (1973-1987 C10)
Grade TypePerformance
Vendor Part Number4301680R
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
