4301681R 13 in. Classic Series Front Brake Kit
InfoVehicle Info Needed
BAER BRAKEPART NUMBER: 136-4301681R

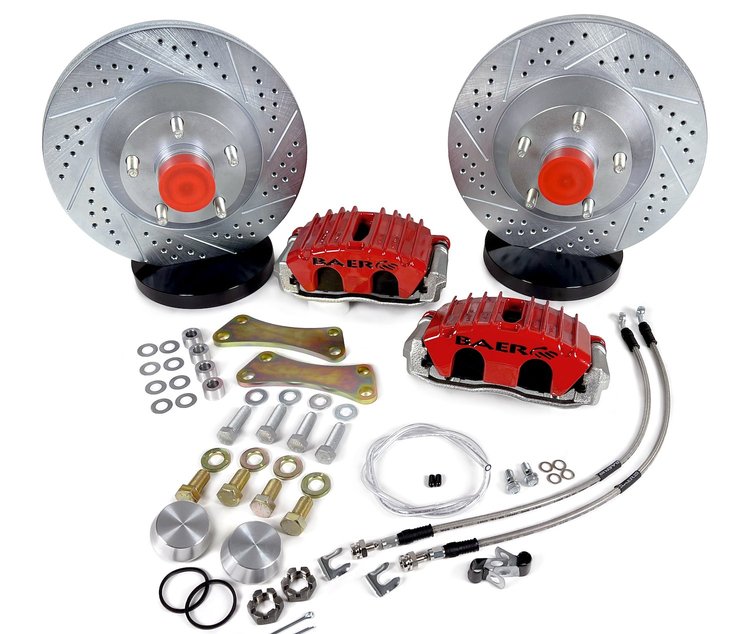

4301681R 13 in. Classic Series Front Brake Kit

$1,11795
ShippingShips Tomorrow
Lowest PriceLowest Price Guarantee

13 in. Classic Series Front Brake Kit

Baer Brake 4301681R Features:

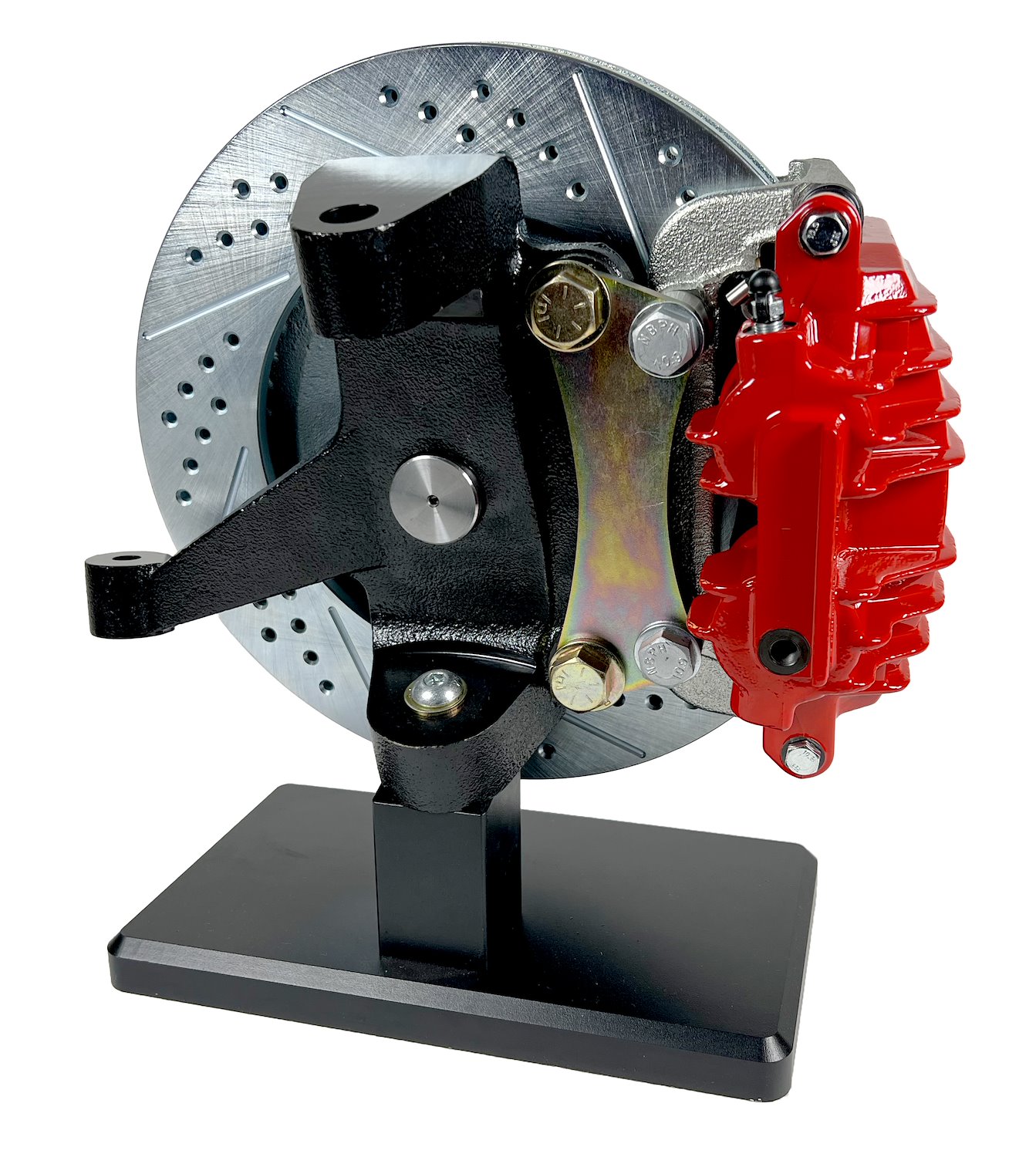

This Classic Series brake kit features an aluminum. 2-piston, pin drive caliper (PDC) mounted to a 13.150 in., 1-piece slot, drill, zinc plated integral hub rotor and is designed to fit vehicles using the AZ Pro Performance REACT 2 in. drop spindles (Baer p/n 6800258). The caliper comes in a red powder coated finish with the Baer logo painted black, includes dust & weather seal's and uses the popular D0731 pad type. Rotors are ready to install with races installed and bearings packed with Redline synthetic grease. Dust caps, mounting brackets, stainless braided hoses and all necessary hardware are also included. This 13 in. Classic Series system fits most 17 in. or larger wheels and with or without ABS.
  • Aluminum, 2-Piston, Pin Drive Caliper
  • Red Powder Coated Caliper w/Black Baer Logo
  • Slot, Drill, Zinc Plated Rotor Finish
  • Works With ABS and Non-ABS Applications
  • Stainless Braided Brake Hoses
  • Uses Common FMSI D0731 Brake Pad
  • Modern Brakes for Small Wheels at an Economical Price
  • Designed to Fit AZ Pro Performance REACT Drop Spindles (Baer p/n 6800258)
Part TypeBrake Conversion Kit
BrandBAER BRAKE
Package Height9.0
Package Width15.5
Package Length15.5
Weight44.0 PG
Part CategoryPerformance Parts
Rotor Type1-Piece Integral Hub
Caliper Piston Quantity2
PositionFront
Friction Material CompositionCeramic
Solid Or Vented Type RotorVented
Front Rotor StyleVented
Brake Hose Dot ApprovedYes
Caliper TypeFloating
Caliper ColorRed
Rotor Diameter13.150
Disc Brake Pad Fmsi NumberD0731
Bolt Pattern5x5.00
Rotor Thickness1.150
Wheel Stud SizeM14-1.50 x 47.5mm
Front Rotor Diameter13.150
Abs Tone Ring IncludedYes
Surface TypeSlotted, Drilled & Zinc Plated
Part FitmentDirect Fit
Hose MaterialStainless Steel
Notesw/React 2 inch Drop Spindles, Designed to be used with React 2" drop spindles Baer p/n 6800258 sold separately
Grade TypePerformance
Vendor Part Number4301681R
Package Qty1
Package TypeEA
