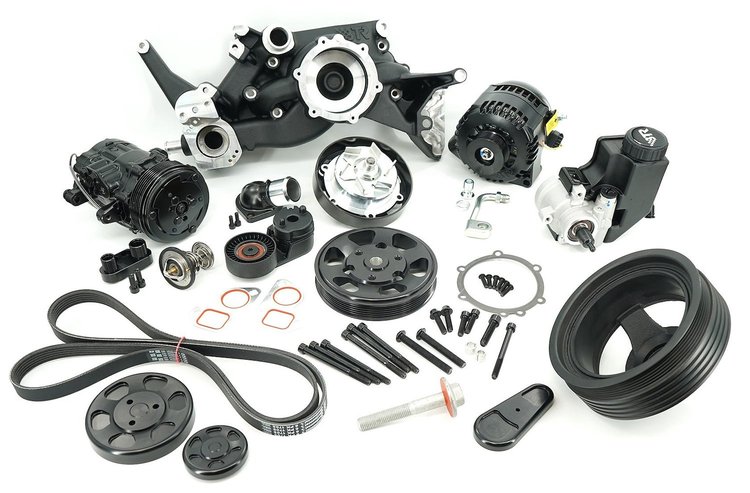

ACD-LS05B Hyperdrive Front Drive Dress Kit for GM Gen III/IV LS Engines w/OE-Style Crank Damper [Black]

Name: ACD-LS05B Hyperdrive Front Drive Dress Kit for GM Gen III/IV LS Engines w/OE-Style Crank Damper [Black]
Brand: BRIAN TOOLEY RACING BTR
SKU: 559-ACD-LS05B
Price: 2299.99 USD
Availability: InStock

^$2,299⁹⁹

2 left in stock

Ships Today

Lowest Price Guarantee

GM Gen III/IV LS

Hyperdrive Front Drive Dress Kit

GM Gen III/IV LS

Compact Bracketless Design

Black Finish

Includes:

Alternator, A/C Compressor, P/S Pump
Billet Pulley Covers
OE-Style Crank Damper
Tensioner
Serpentine Belt
Hardware

Brian Tooley Racing BTR ACD-LS05-SFI Features:
- Compact, Bracketless Front-Drive Layout For Maximum Clearance
- Engineered Cooling Manifold Integrates Water Pump And Thermostat Housing
- Application: GM Gen III/IV LS Engines
- Finish: Natural Finish
- Damper: SFI-Certified
- Includes Billet Pulley Covers For A/C, Alternator, And Tensioner
- Thermostat Housing With Three Index Angles For Hose Routing
- High-Performance Accessory System With Stable Belt Wrap
Brian Tooley Racing BTR ACD-LS05-SFI Includes:
- Alternator With Harness Pigtail
- SD7-Type Mini A/C Compressor
- A/C Line Adapter To #8 And #10 With (2) M8 x 1.25 x 20 Bolts
- Billet Pulley Covers (A/C, Alternator, Tensioner)

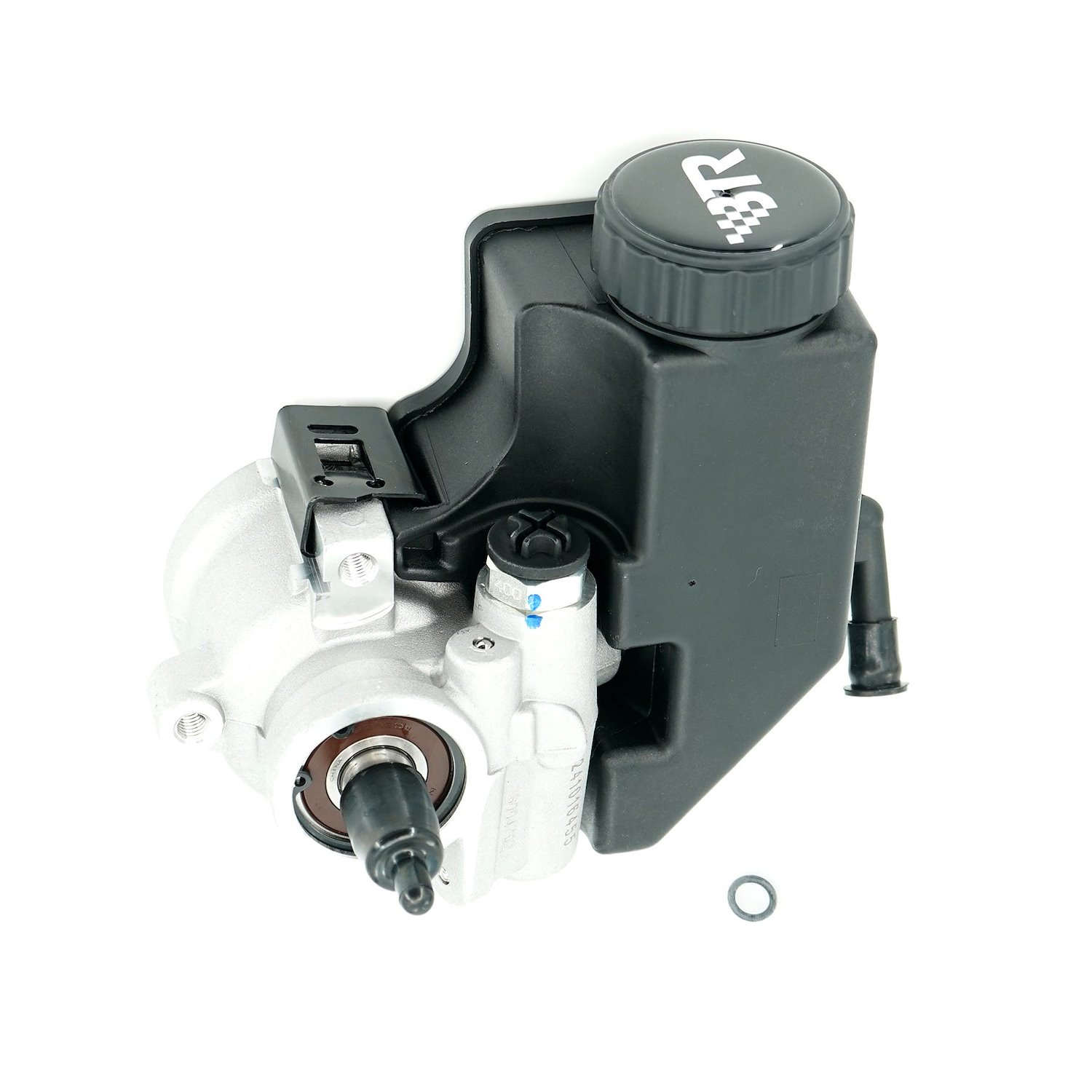

- Power Steering Pump With Reservoir
- Power Steering Pump Pulley
- Power Steering Pressure Hardline To -6 AN With Banjo Bolt And (2) Crush Washers
- Cooling Manifold And Gaskets
- Water Pump And Gasket
- Thermostat Housing And 187° Thermostat
- Belt Tensioner
- Serpentine Belt
- ATI SFI-Certified Damper and Billet Crank Pulley
- Complete Mounting Hardware And Spacers
Brian Tooley Racing BTR ACD-LS05-SFI Notes:
- Alternator Pigtail Requires Switched 12V In Run Position
- Recommend RPM Window Switch To Disengage A/C Clutch Over 5,000 RPM In High-RPM Use
- Power Steering Reservoir May Require Remote Adapter In Tight Bays; See Compatible Reservoir Options
- Verify Bolt Lengths And Locations During Install; Torque Per Instructions

Rev-Up With the BTR HyperDrive Front-Drive Kits — Bold Power & Clean Engine Bay Design

Brian Tooley Racing (BTR) HyperDrive front-engine accessory drive kits deliver a high-performance, all-in-one solution built for modern LS, LT, LV, and L8T engines. With a compact, bracketless design, the system eliminates clutter and simplifies packaging, allowing you to focus on performance rather than accessory layout. Designed for both form and function, the kit features premium hardware, fully inclusive accessories, and is engineered for high RPM readiness (7,500+ RPM applications) and engine-swap-friendly installs.

Part TypeSerpentine Belt Drive Component Kit

Product LineBrian Tooley Racing BTR Hyperdrive Front Drive Accessory Kits

BrandBRIAN TOOLEY RACING BTR

Package Height15.0

Package Width23.0

Package Length23.0

Weight69.0 PG

Part CategoryAccessories

Hardware IncludedYes

Water Pump Pulley IncludedYes

Pulley StyleSerpentine

Accessory Drive Kit Component TypeMid-Mount
