Brian Tooley Racing BTR ACD-LT05B Features:

• Compact, Bracketless Front-Drive Layout For Maximum Clearance
• Engineered Cooling Manifold Integrates Water Pump And Thermostat Housing
• Application: GM Gen V LT Engines
• Finish: Black Finish
• Damper: OE-Style
• Includes Billet Pulley Covers For A/C, Alternator, And Tensioner
• Thermostat Housing With Three Index Angles For Hose Routing
• High-Performance Accessory System With Stable Belt Wrap

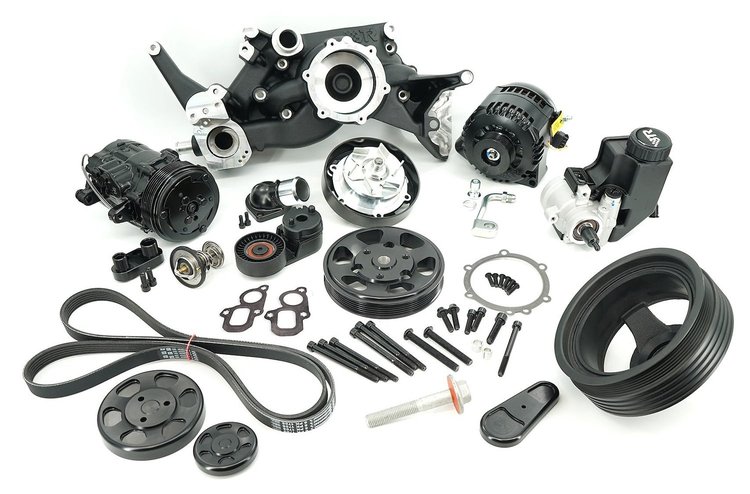

Brian Tooley Racing BTR ACD-LT05B Includes:

• Alternator With Harness Pigtail
• SD7-Type Mini A/C Compressor
• A/C Line Adapter To #8 And #10 With (2) M8 x 1.25 x 20 Bolts
• Billet Pulley Covers (A/C, Alternator, Tensioner)

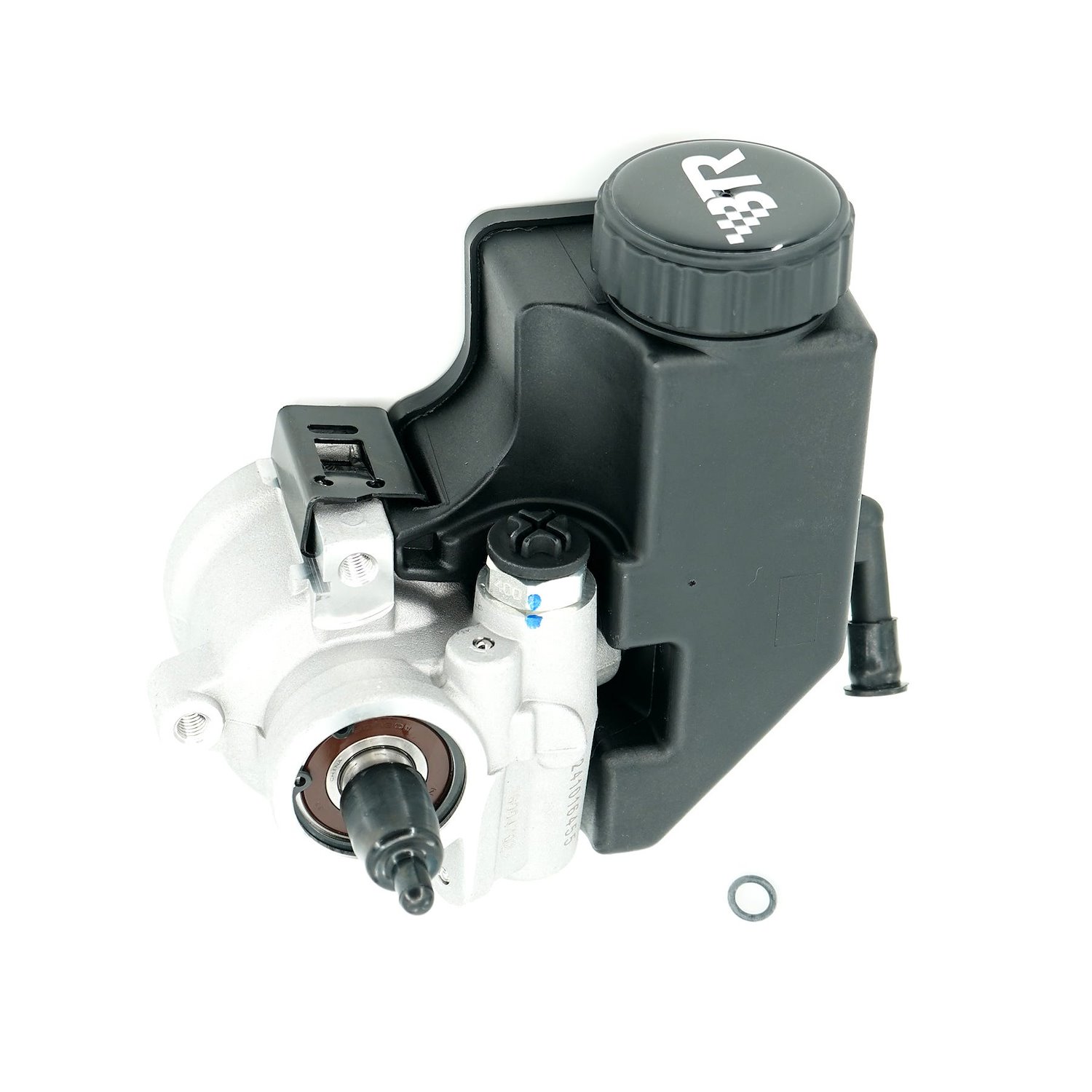

• Power Steering Pump With Reservoir
• Power Steering Pump Pulley
• Power Steering Pressure Hardline To -6 AN With Banjo Bolt And (2) Crush Washers
• Cooling Manifold And Gaskets
• Water Pump And Gasket
• Thermostat Housing And 187° Thermostat
• Belt Tensioner
• Serpentine Belt
• OE-Style Crank Damper
• Complete Mounting Hardware And Spacers

Brian Tooley Racing BTR ACD-LT05B Notes:

• Alternator Pigtail Requires Switched 12V In Run Position
• Recommend RPM Window Switch To Disengage A/C Clutch Over 5,000 RPM In High-RPM Use
• Power Steering Reservoir May Require Remote Adapter In Tight Bays; See Compatible Reservoir Options
• Verify Bolt Lengths And Locations During Install; Torque Per Instructions
