Made in USA

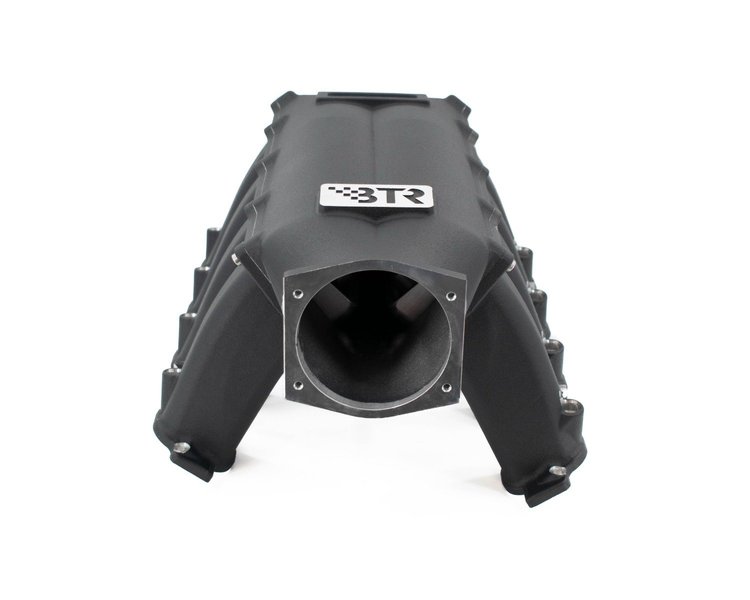

TRA-LTTK-INJ-BLK Trinity Intake Manifold, GM Gen V LT Truck, w/ Injectors Holes [Black Finish]
InfoVehicle Info Needed
BRIAN TOOLEY RACING BTRPART NUMBER: 559-J000175

TRA-LTTK-INJ-BLK Trinity Intake Manifold, GM Gen V LT Truck, w/ Injectors Holes [Black Finish]

$1,05999
ShippingShips on 09/15/2026
Lowest PriceLowest Price Guarantee

GM Truck
Trinity Intake Manifold
  • GM Gen V LT Truck
  • w/ Injectors Holes
  • Cast Aluminum
  • Black Finish

    Brian Tooley Racing BTR TRA-LTTK-INJ-BLK Features:

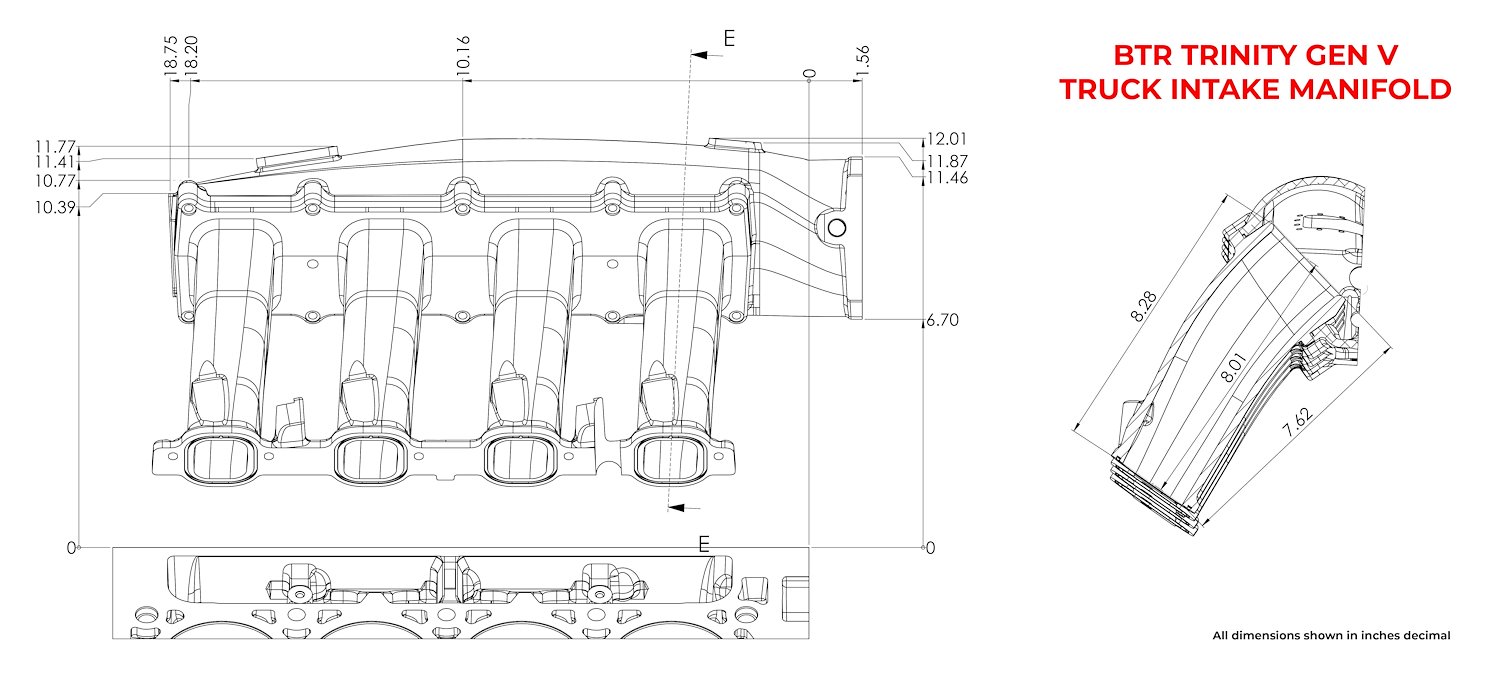

    Introducing the newest rendition of our popular Trinity Intake Manifold lineup! The ALL NEW Gen V Trinity Truck Intake. This 3 piece, cast aluminum, 8” long runner design was developed for our Gen V LTx equipped truck clients, looking to add every bit of horsepower to their combination. The runner length will allow for more mid-range torque compared to the short runner Trinity offerings. It's modular design makes servicing and porting easier than any other cast units on the market, and offers the ultimate flexibility for end user needs. It should be noted, these versions do not have port injector openings, and also do not fit LT4 applications, but we have more options just over the horizon!

    • NOTE: To use this manifold on a L83 engine, a L86/LT1 or 103mm aftermarket throttle body is required

    Emissions Note:

    This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.

    CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART

  • Part TypeIntake Manifold
    BrandBRIAN TOOLEY RACING BTR
    Package Height12.0
    Package Width15.0
    Package Length24.0
    Weight32.0 PG
    Part CategoryPerformance Parts
    Throttle Body IncludedNo
    Fuel Rail(S) IncludedNo
    Fuel Injectors IncludedNo
    MaterialCast Aluminum
    Part FitmentSemi Universal
    Plenum FinishBlack
    Vendor Part NumberTRA-LTTK-INJ-BLK
    Package Qty1
    Package TypeEA
