TRA-LTTK-INJ Trinity Intake Manifold, GM Gen V LT Truck, w/Injector Holes [Natural Finish]
InfoVehicle Info Needed
BRIAN TOOLEY RACING BTRPART NUMBER: 559-TRA-LTTK-INJ

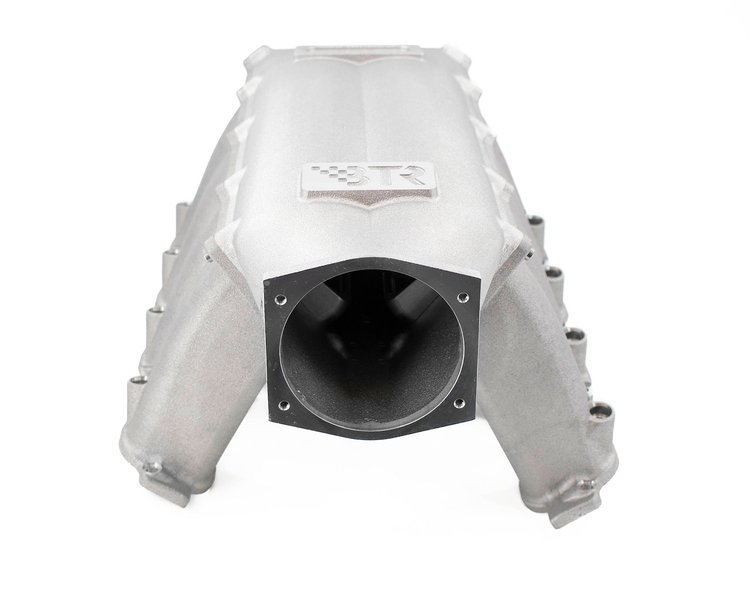

TRA-LTTK-INJ Trinity Intake Manifold, GM Gen V LT Truck, w/Injector Holes [Natural Finish]

$99999
ShippingShips on 09/15/2026
Lowest PriceLowest Price Guarantee

GM Truck
Trinity Intake Manifold
  • GM Gen V LT Truck
  • w/Injector Holes
  • Cast Aluminum
  • Natural Finish

    Brian Tooley Racing BTR TRA-LTTK-INJ Features:

    Introducing the newest rendition of our popular Trinity Intake Manifold lineup! The ALL NEW Gen V Trinity Truck Intake. This 3 piece, cast aluminum, 8” long runner design was developed for our Gen V LTx equipped truck clients, looking to add every bit of horsepower to their combination. The runner length will allow for more mid-range torque compared to the short runner Trinity offerings. It's modular design makes servicing and porting easier than any other cast units on the market, and offers the ultimate flexibility for end user needs. It should be noted, these versions do not have port injector openings, and also do not fit LT4 applications, but we have more options just over the horizon!

    • NOTE: To use this manifold on a L83 engine, a L86/LT1 or 103mm aftermarket throttle body is required
    • Boost High-RPM Performance with Brian Tooley Racing BTR Trinity Intake Manifolds – Versatile Power for N/A & Boosted Builds

      The Brian Tooley Racing BTR Trinity Intake Manifolds are engineered for serious performance, featuring a short-runner, 3-piece design that offers unmatched flexibility for both naturally aspirated and boosted setups. Operating best between 6000–8500 RPM, the Trinity bridges the power gap with dual runners and an interchangeable plenum for customizable airflow. This intake system includes all necessary hardware for a seamless install, making it a go-to upgrade for racers and tuners looking to maximize high-RPM power and adaptability. Perfect for aggressive builds that demand top-end horsepower and application versatility.

    Part TypeIntake Manifold
    Product LineBrian Tooley Racing BTR Trinity-Series Intake Manifolds
    BrandBRIAN TOOLEY RACING BTR
    Package Height12.0
    Package Width15.0
    Package Length24.0
    Weight32.0 PG
    Part CategoryPerformance Parts
    Throttle Body IncludedNo
    Fuel Rail(S) IncludedNo
    Fuel Injectors IncludedNo
    MaterialCast Aluminum
    Part FitmentSemi Universal
    Plenum FinishNatural
    Vendor Part NumberTRA-LTTK-INJ
    Package Qty1
    Package TypeEA
