AS-1016CG Complete Leaf Spring Rear End Mounting Kit for 1935-1936 Chevy Master (Gas Shocks)
InfoVehicle Info Needed
CHASSIS ENGINEERING INC.PART NUMBER: 141-AS-1016CG

AS-1016CG Complete Leaf Spring Rear End Mounting Kit for 1935-1936 Chevy Master (Gas Shocks)

$1,10200
ShippingShips on 12/15/2026
Lowest PriceLowest Price Guarantee

Items You Need

2-in-1 Folding Creeper & Z-Seat

JEGS

2-in-1 Folding Creeper & Z-Seat

Part Number : 555-81165
$5519$68.99
You Save$13.80
123-Piece Tool Set with Carry Case

JEGS

123-Piece Tool Set with Carry Case

Part Number : 555-80427
$3199$51.99
You Save$20.00
Penetrating Oil [11 oz. Aerosol Can]

LUCAS OIL

Penetrating Oil [11 oz. Aerosol Can]

Part Number : 639-11043
$878$9.49
You Save$0.71
Breaker Bar [1/2 in. Drive, 30 in. L]

JEGS

Breaker Bar [1/2 in. Drive, 30 in. L]

Part Number : 555-W32126
$3399$40.99
You Save$7.00

GM
    Complete Leaf Spring Rear End Mounting Kit
  • For 1935-1936 Chevy Master (Gas Shocks)

    Chassis Engineering AS-1016CG Features:

    AS-1016CG Complete Rear End Mounting Kit for 1935-1936 Chevy Master (Gas Shocks).This weld in kit for 1935-1936 Chevrolet fits wide variety of rear ends, ( up to 3 in. axle housing diameter) depending upon the off set of wheels and tire choice. We recommend approx. 58-60 in..

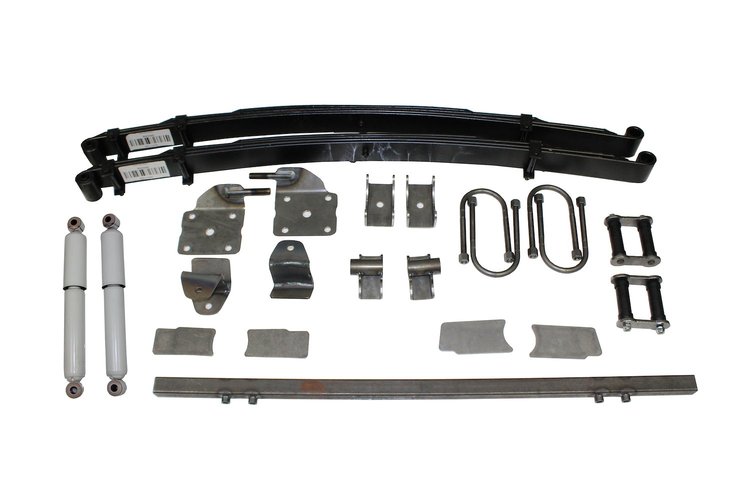

    This Kit Includes:

    Chassiss Engineering's 2-1/2 in. slider springs
    Front and rear spring mounts
    shackles
    u-bolts
    spring pads
    New shock mounting kit
    New gas shocks
    Hardware
    Instructions

    Prevent your suspension from bottoming-out and expensive vehicle damage by including a pair of adjustable rubber snubbers with your order.

    Installation Instructions for AS-1016CG 1936 Chevy
    Important: Remove gas tank and cap the line before starting installation. Welding near gas tanks can be extremely dangerous.

    1. Remove original rear end, springs and shocks. Remove original rear (rear spring) mounts. Leave front (rear spring) mounts in place.

    2. Clamp new front spring mounts in place. The notch in the mount points forward.

    3. Install short boxing plates behind the rear most crossmember. Clamp rear spring shackle mounts to frame. Offset goes to the outside. Base of mount is even with the outside of frame.

    4. Be sure front and rear spring mounts are aligned with each other. Recheck measurements and tack weld mounts to frame.

    5. Remove original front spring mount.

    6. At this point check to make sure that your wheels are in the center of your fender opening. Do this by installing springs at the front mounts and then attaching rear end to springs. Make sure car is safely supported with jack stands. Install wheels and tires and visually check for centering in the fender opening. If needed, make any adjustments to the mounts now,. Do not neglect this check!

    7. Disassemble and finish welding mounts to frame.

    Chassis Engineering Complete Rear End Leaf Spring Suspension Kits For Classic Rear Axle Mounting

    Chassis Engineering Complete Rear End Leaf Spring Suspension Kits deliver a bolt-on rear suspension upgrade for classic cars and trucks, with vehicle-specific and universal options for custom builds. Kits include leaf springs, gas shocks, mounts, shackles, U-bolts, spring pads, hardware, and instructions, supporting a wide range of rear ends up to 3-inch axle housings, depending on wheel offset and tire choice. Built for hot rods, restorations, and rear axle conversions, these rear leaf spring kits offer dependable fitment, improved stance, and trusted aftermarket suspension engineering.

Part TypeLeaf Spring Mount Kit
Product LineChassis Engineering Complete Rear End Leaf Spring Suspension Kits
BrandCHASSIS ENGINEERING INC.
Package Height4.0
Package Width8.0
Package Length49.0
Weight121.0 PG
Part CategoryPerformance Parts
Part FitmentSemi Universal
Vendor Part NumberAS-1016CG
Package Qty1
Package TypeEA
