Vehicle Info NeededCOMP CAMSPART NUMBER: 249-01-416-8

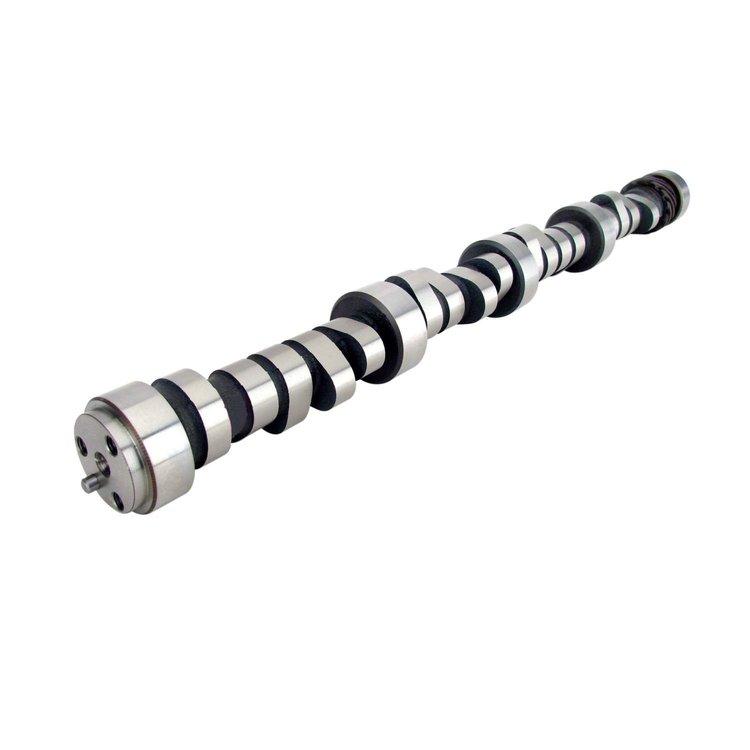

Comp Cams Xtreme Energy Hydraulic Roller Camshafts
$57795
3 left in stock
Ships Tomorrow
Lowest Price GuaranteeChevrolet Gen VI Big Block 454ci & 502 c.i. 8 CYL. 1996-1999
- Xtreme Energy XR276HR Hydraulic Roller Camshaft
- Produces Better Throttle Response
- Produces Top Engine Horsepower
- Delivers Increased Engine Vacuum
- 1 Year Limited Warranty
Chevelle, Camaro, Corvette, Stingray, Silverado, C10, Firebird, Chevrolet, Big Block, Chevy, BBC, 454, 427, 502, 396, Caprice, Malibu, Impala, Nova, Monte Carlo, S10, 572
Great for high performance street machines, needs intake, headers, lower gears and 2000+ stall.
Lift: .510"/.510"
Duration: 276/282
Lobe Separation Angle: 110°
RPM Range: 1900-5600
Emissions Note:
This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.
CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
Part TypeCamshaft
BrandCOMP CAMS
Package Height3.0
Package Width3.0
Package Length25.0
Weight10.91 PG
Part CategoryPerformance Parts
Exh. Duration @ .050 In. (Deg)230
Cam StyleHydraulic roller tappet
Grind NumberXR276FR
Exh. Duration Advertised (Deg)282
Engine Make/SizeChevy Gen VI 454
Intake Valve Lift With Factory Rocker Arm Ratio (I0.51
Int. Duration @ .050 In. (Deg)224
Basic Operating Rpm Range1,900-5,600
Intake Valve Lift0.51 in (12.954 mm)
Computer-Controlled CompatibleNo
Int. Duration Advertised (Deg)276
Lobe Separation (Deg)110
Rpm Range1900-5600
Advertised Duration276 int./282 exh.
Exhaust Valve Lift With Factory Rocker Arm Ratio (0.51
UsageStreet/Performance
Valve Lift With Factory Rocker Arm Ratio0.510 int./0.510 exh.
QuantitySold individually
Exhaust Valve Lift0.51 in (12.954 mm)
Advertised Intake Duration276
Intake Duration At 050 Inch Lift224
Exhaust Duration At 050 Inch Lift230
Advertised Exhaust Duration282
Lifter TypeHydraulic Roller
Part FitmentSemi Universal
Duration At 050 Inch Lift224 int./230 exh.
Valve Springs RequiredYes
Vendor Part Number01-416-8
Package Qty1
Package TypeEA
