Vehicle Info NeededCOMP CAMSPART NUMBER: 249-01-712-9

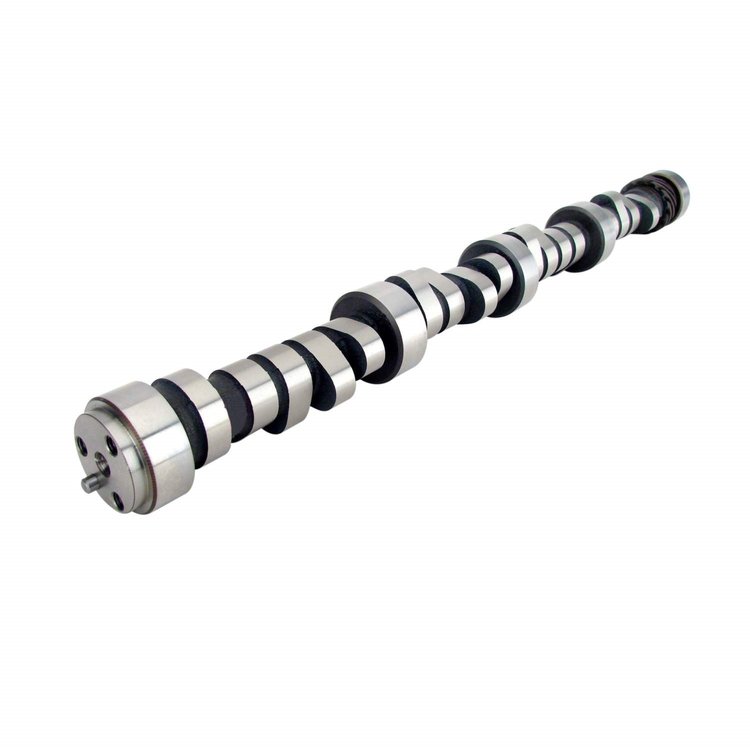

Drag Race Mechanical Roller Camshaft Lift .714"/.714" Duration 296/304 RPM Range 3500-6800
$55895
Ships on 09/15/2026
Lowest Price GuaranteeChevrolet Gen VI 454 & 502 C.i. 8 CYL. 1996-1999
- Drag Race Mechanical Roller Camshaft
Lift .714"/.714"
Duration 296/304
RPM Range 3500-6800
Mechanical Roller-Great in Super Street when using a heavy car, very good power band.
Chevelle, Camaro, Corvette, Stingray, Silverado, C10, Firebird, Chevrolet, Big Block, Chevy, BBC, 454, 427, 502, 396, Caprice, Malibu, Impala, Nova, Monte Carlo, S10, 572
Great in Super Street when using a heavy car, very good power band.
Emissions Note:
This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.
CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
Part TypeCamshaft
BrandCOMP CAMS
Package Height3.0
Package Width3.0
Package Length24.5
Weight10.49 PG
Part CategoryPerformance Parts
Exh. Duration @ .050 In. (Deg)268
Cam StyleMechanical roller tappet
Grind NumberCBVI 296ER-8
Exh. Duration Advertised (Deg)304
Engine Make/SizeChevy Gen VI 454
Intake Valve Lift With Factory Rocker Arm Ratio (I0.714
Int. Duration @ .050 In. (Deg)260
Basic Operating Rpm Range3,500-6,800
Intake Valve Lash0.024 in (0.61 mm)
Intake Valve Lift0.714 in (18.136 mm)
Computer-Controlled CompatibleNo
Int. Duration Advertised (Deg)296
Lobe Separation (Deg)108
Rpm Range3500-6800
Advertised Duration296 int./304 exh.
Exhaust Valve Lift With Factory Rocker Arm Ratio (0.714
UsageStrip
Valve Lift With Factory Rocker Arm Ratio0.714 int./0.714 exh.
Camshaft Gear Attachment3-bolt
QuantitySold individually
Exhaust Valve Lash0.026 in (0.66 mm)
Exhaust Valve Lift0.714 in (18.136 mm)
Advertised Intake Duration296
Intake Duration At 050 Inch Lift260
Exhaust Duration At 050 Inch Lift268
Advertised Exhaust Duration304
Lifter TypeMechanical Roller
Part FitmentSemi Universal
Duration At 050 Inch Lift260 int./268 exh.
Valve Springs RequiredYes
Vendor Part Number01-712-9
Package Qty1
Package TypeEA
