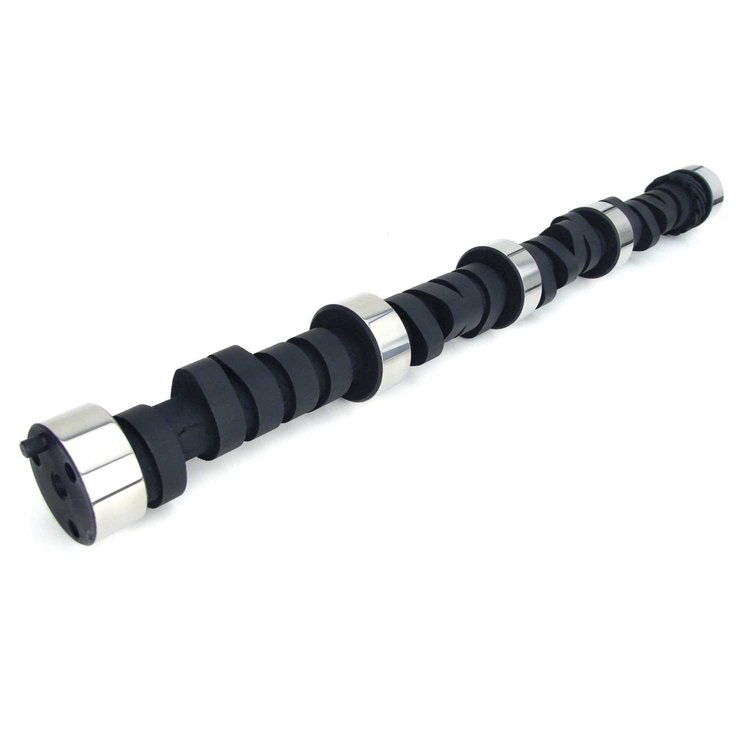

Magnum 292H Hydraulic Flat Tappet Camshaft
Lift: .550''/.550"
Duration: 292°/292°
RPM Range: 2500-6500


*Note: In order to use these camshafts in 1965-66 396/427ci blocks, it is necessary to machine a 3/16' wide x 7/64' deep groove in the rear main journal of the cam to allow oil flow to the top of the engine.

Street/Strip napplications. 10:1+ compression, 3000 stall converter or 4-speed, 4.10:1 or lower gears & aftermarket intake. Very rough idle.

Operating Range:	2500-6500 RPM
Duration Advertised:	292° Intake / 292° Exhaust
Duration @ .050' Lift:	244° Intake / 244° Exhaust
Valve Lift w/1.7 Rockers:	.550' Intake / .550' Exhaust
Lobe Separation Angle:	110°

Chevelle, Camaro, Corvette, Stingray, Silverado, C10, Firebird, Chevrolet, Big Block, Chevy, BBC, 454, 427, 502, 396, Caprice, Malibu, Impala, Nova, Monte Carlo, S10, 572


Street/strip applications. 10:1+ compression, 3000+ stall or 4 speed. 4.10 or lower gears and aftermarket intake. Very rough idle.

Emissions Note:

This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.

CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
