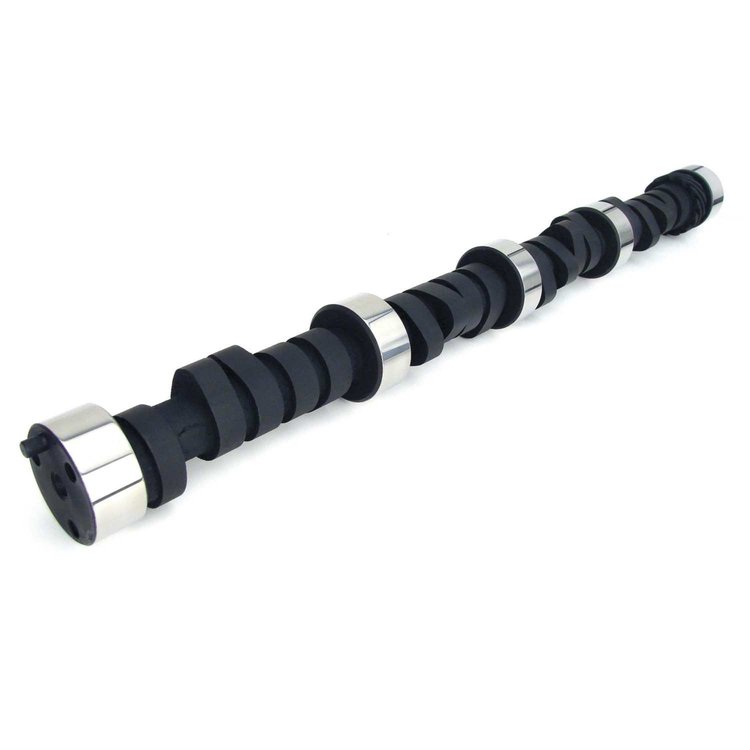

Magnum 286H Hydraulic Flat Tappet Camshaft
Lift: .556''/.556"
Duration: 286°/286°
RPM Range: 2200-6200


*Note: In order to use these camshafts in 1965-66 396/427ci blocks, it is necessary to machine a 3/16' wide x 7/64' deep groove in the rear main journal of the cam to allow oil flow to the top of the engine.

Needs 9.5:1 compression, 2800 stall converter, headers and lower gear. Choppy idle.

Operating Range:	2200-6200 RPM
Duration Advertised:	286° Intake / 286° Exhaust
Duration @ .050' Lift:	236° Intake / 236° Exhaust
Valve Lift w/1.7 Rockers:	.556' Intake / .556' Exhaust
Lobe Separation Angle:	110°

Chevelle, Camaro, Corvette, Stingray, Silverado, C10, Firebird, Chevrolet, Big Block, Chevy, BBC, 454, 427, 502, 396, Caprice, Malibu, Impala, Nova, Monte Carlo, S10, 572


Needs 9.5:1 compression, 2800+ stall, headers and lower gears. Choppy idle.

Emissions Note:

This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.

CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
