Product Discontinued
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.
Chevy Big Block

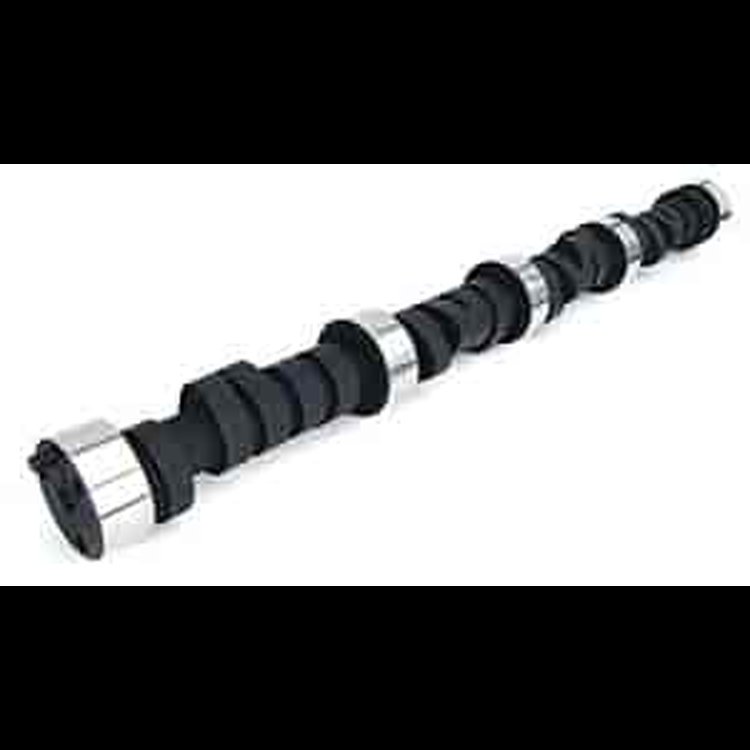

- COMP Cams Oval Track Specialty 286AH-10 Hydraulic Flat Tappet Camshaft
- Oval Track Camshaft
- 1 Year Limited Warranty
396; 402; 427; 454; 496; 502; 572; 632; Chevrolet; BBC; Big Block Chevy; Big Block Chevrolet; Chevelle; Corvette; Mark IV; GEN 4; Monte Carlo; Caprice; Sprint; Nova; Camaro; Firebird; L78; Z16; L37; L34; L35; L37; L66; LS3; L34; L35; L37; L66; COPO; ZL1; C10; K10
Lift .556"/.550"
Duration 286/292
Lobe Angle 110°
Chevrolet V8 396-454 1965-1996
Part TypeCamshaft
BrandCOMP CAMS
Package Height2.75
Package Width3.0
Package Length24.5
Weight10.37 PG
Part CategoryPerformance Parts
Exh. Duration @ .050 In. (Deg)244
Cam StyleHydraulic flat tappet
Grind NumberCB 286AH-10
Exh. Duration Advertised (Deg)292-3
Engine Make/SizeChevy Big Block (396-454)
Intake Valve Lift With Factory Rocker Arm Ratio (I0.556
Int. Duration @ .050 In. (Deg)236
Intake Valve Lift0.556 in (14.122 mm)
Computer-Controlled CompatibleNo
Int. Duration Advertised (Deg)286-3
Lobe Separation (Deg)110
Rpm Range2800-6700
Advertised Duration286 int./292 exh.
Exhaust Valve Lift With Factory Rocker Arm Ratio (0.55
UsageStrip
Valve Lift With Factory Rocker Arm Ratio0.556 int./0.550 exh.
Camshaft Gear Attachment3-bolt
QuantitySold individually
Exhaust Valve Lift0.55 in (13.97 mm)
Advertised Intake Duration286
Intake Duration At 050 Inch Lift236
Exhaust Duration At 050 Inch Lift244
Advertised Exhaust Duration292
Lifter TypeHydraulic Flat Tappet
Duration At 050 Inch Lift236 int./244 exh.
Valve Springs RequiredYes
Vendor Part Number11-319-4
Package Qty1
Package TypeEA
