Vehicle Info NeededCOMP CAMSPART NUMBER: 249-11-460-8

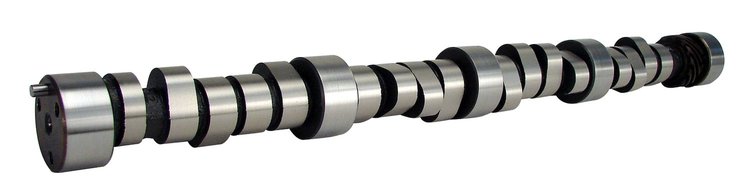

Magnum Hydraulic Roller Camshaft Chevy Big Block 396-454 Retro Fit Lift: .612"/.612"
$57795
1 left in stock
Ships Tomorrow
Lowest Price GuaranteeChevy 396-454ci Big Block 1965-96Retro-Fit for Non Factory Roller
- Magnum Hydraulic Roller Camshaft
- Lift: .612"/.612"
- Duration: 304°/304°
- Lobe Separation Angle: 110°
- RPM Range: 3000-6500
Hydraulic Roller-Street / Strip. 10:1+ compression, 3000 stall, 4.10 gears, aftermarket intake and headers. Very rough idle.Chevelle, Camaro, Corvette, Stingray, Silverado, C10, Firebird, Chevrolet, Big Block, Chevy, BBC, 454, 427, 502, 396, Caprice, Malibu, Impala, Nova, Monte Carlo, S10, 572
Street/strip. 10:1+ compression, 3000+ stall, 4.10+ gears, aftermarket intake and headers. Very rough idle.
Chevy Big Block 396-454 Retro Fit
Emissions Note:
This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.
CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
Part TypeCamshaft
BrandCOMP CAMS
Package Height2.75
Package Width2.87
Package Length24.5
Weight10.35 PG
Part CategoryPerformance Parts
Exh. Duration @ .050 In. (Deg)244
Cam StyleHydraulic roller tappet
Grind NumberCB 304H-R10
Exh. Duration Advertised (Deg)304
Engine Make/SizeChevy Big Block (396-454)
Intake Valve Lift With Factory Rocker Arm Ratio (I0.612
Int. Duration @ .050 In. (Deg)244
Basic Operating Rpm Range3,000-6,500
Intake Valve Lift0.612 in (15.545 mm)
Computer-Controlled CompatibleNo
Int. Duration Advertised (Deg)304
Lobe Separation (Deg)110
Rpm Range3000-6500
Advertised Duration304 int./304 exh.
Exhaust Valve Lift With Factory Rocker Arm Ratio (0.612
UsageStreet/Strip
Valve Lift With Factory Rocker Arm Ratio0.612 int./0.612 exh.
QuantitySold individually
Exhaust Valve Lift0.612 in (15.545 mm)
Advertised Intake Duration304
Intake Duration At 050 Inch Lift244
Exhaust Duration At 050 Inch Lift244
Advertised Exhaust Duration304
Lifter TypeHydraulic Roller
Part FitmentSemi Universal
Duration At 050 Inch Lift244 int./244 exh.
Valve Springs RequiredYes
Vendor Part Number11-460-8
Package Qty1
Package TypeEA
