Vehicle Info NeededCOMP CAMSPART NUMBER: 249-20-618-5

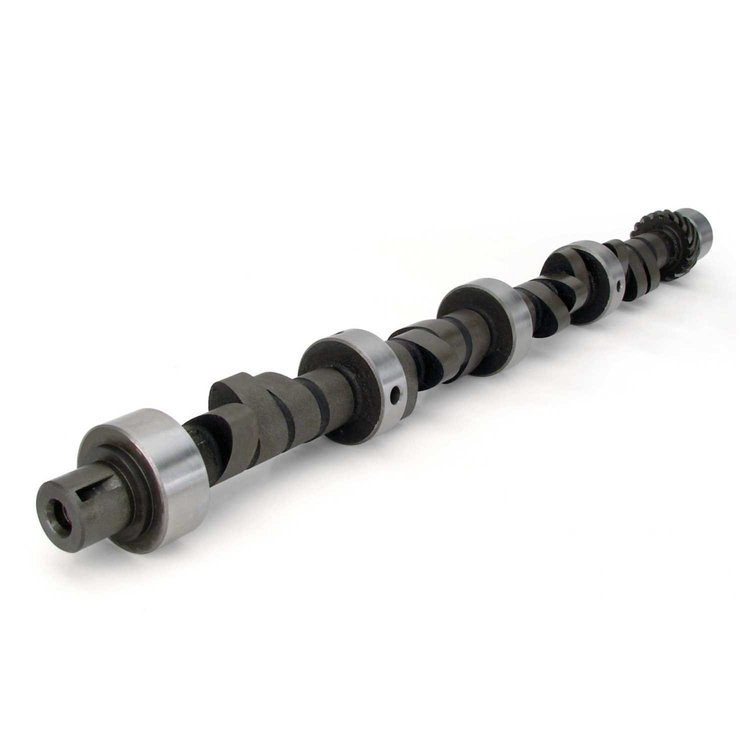

Drag Race Mechanical Flat Tappet Camshaft Chrysler 273-360 1964-2000 Lift: .540"/.540"
$39595
Ships on 09/15/2026
Lowest Price GuaranteeChrysler 273-360 1964-2000
- Drag Race Mechanical Flat Tappet Camshaft
- Lift: .540"/.540"
- Duration: 290°/290°
- Lobe Separation Angle: 106°
- RPM Range: 4000-7000
- Drag Race Xtreme RX Camshaft
- 1 Year Limited Warranty
273, 360, 318, AMC, Dodge, Mopar, Plymouth, Dart, Road Runner, Charger, Challenger, 383, 400, 440, 426, HEMI, 426 Wedge, 426 HEMI, RB, B, HEMI, 392, Chrysler, LA
318-340. 4000+ stall, 750 CFM, manifold. 4.88 gear. 10.5:1+ compression.
Chrysler 273-360 1964-2000
Emissions Note:
This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.
CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
Part TypeCamshaft
BrandCOMP CAMS
Package Height2.75
Package Width2.87
Package Length24.5
Weight9.0 PG
Part CategoryPerformance Parts
Exh. Duration @ .050 In. (Deg)255
Cam StyleMechanical flat tappet
Grind NumberCRS 290A-6
Exh. Duration Advertised (Deg)290-1
Engine Make/SizeMopar 273-360
Intake Valve Lift With Factory Rocker Arm Ratio (I0.54
Int. Duration @ .050 In. (Deg)255
Basic Operating Rpm Range4,000-7,000
Intake Valve Lash0.026 in (0.66 mm)
Intake Valve Lift0.54 in (13.716 mm)
Computer-Controlled CompatibleNo
Int. Duration Advertised (Deg)290-1
Lobe Separation (Deg)106
Rpm Range4000-7000
Advertised Duration290 int./290 exh.
Exhaust Valve Lift With Factory Rocker Arm Ratio (0.54
UsageStrip
Valve Lift With Factory Rocker Arm Ratio0.540 int./0.540 exh.
QuantitySold individually
Exhaust Valve Lash0.028 in (0.711 mm)
Exhaust Valve Lift0.54 in (13.716 mm)
Advertised Intake Duration290
Intake Duration At 050 Inch Lift255
Exhaust Duration At 050 Inch Lift255
Advertised Exhaust Duration290
Lifter TypeMechanical Flat Tappet
Part FitmentSemi Universal
Duration At 050 Inch Lift255 int./255 exh.
Valve Springs RequiredYes
Vendor Part Number20-618-5
Package Qty1
Package TypeEA
