Vehicle Info NeededCOMP CAMSPART NUMBER: 249-20-632-5

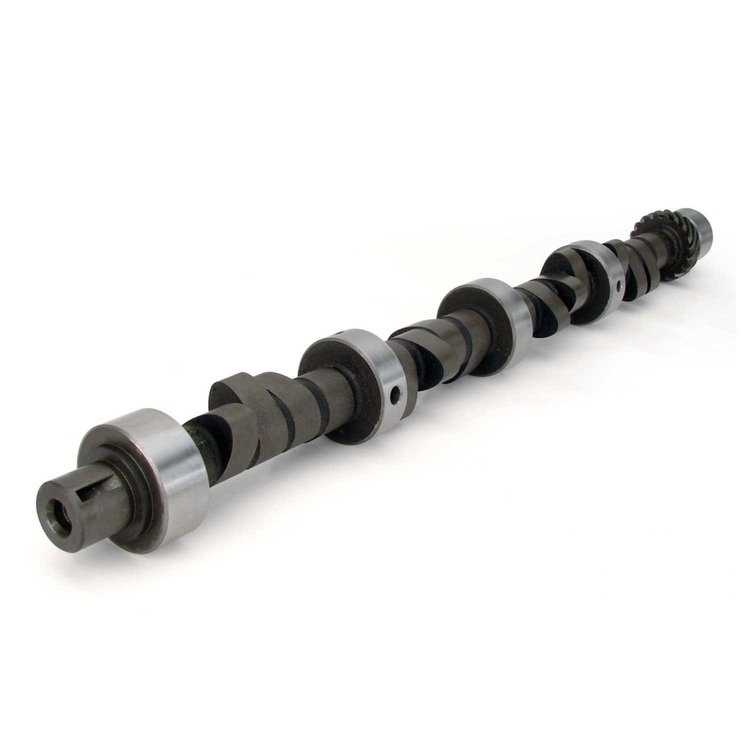

Drag Race Mechanical Flat Tappet Camshaft Chrysler 273-360 1964-2000 Lift: .579"/.578"
$39595
Ships on 09/15/2026
Lowest Price GuaranteeChrysler 273-360 1964-2000
- Drag Race Mechanical Flat Tappet Camshaft
- Lift: .579"/.578"
- Duration: 300°/316°
- Lobe Separation Angle: 108°
- RPM Range: 4500-7500
- Drag Race Xtreme RX Camshaft
- 1 Year Limited Warranty
273, 360, 318, AMC, Dodge, Mopar, Plymouth, Dart, Road Runner, Charger, Challenger, 383, 400, 440, 426, HEMI, 426 Wedge, 426 HEMI, RB, B, HEMI, 392, Chrysler, LA
Good Super Street or fast bracket cam. Works best with 12:1 compression and 5000+ converter.
Chrysler 273-360 1964-2000
Emissions Note:
This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.
CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
Part TypeCamshaft
BrandCOMP CAMS
Package Height2.75
Package Width3.0
Package Length24.5
Weight10.0 PG
Part CategoryPerformance Parts
Exh. Duration @ .050 In. (Deg)278
Cam StyleMechanical flat tappet
Grind NumberCRS TL300S-8
Exh. Duration Advertised (Deg)316
Engine Make/SizeChevy Big Block (396-454)
Intake Valve Lift With Factory Rocker Arm Ratio (I0.579
Int. Duration @ .050 In. (Deg)270
Basic Operating Rpm Range4,500-7,500
Intake Valve Lash0.018 in (0.457 mm)
Intake Valve Lift0.579 in (14.707 mm)
Computer-Controlled CompatibleNo
Int. Duration Advertised (Deg)300
Lobe Separation (Deg)108
Rpm Range4500-7500
Advertised Duration300 int./316 exh.
Exhaust Valve Lift With Factory Rocker Arm Ratio (0.578
UsageStrip
Valve Lift With Factory Rocker Arm Ratio0.579 int./0.578 exh.
QuantitySold individually
Exhaust Valve Lash0.02 in (0.508 mm)
Exhaust Valve Lift0.578 in (14.681 mm)
Advertised Intake Duration300
Intake Duration At 050 Inch Lift270
Exhaust Duration At 050 Inch Lift278
Advertised Exhaust Duration316
Lifter TypeMechanical Flat Tappet
Part FitmentSemi Universal
Duration At 050 Inch Lift270 int./278 exh.
Valve Springs RequiredYes
Vendor Part Number20-632-5
Package Qty1
Package TypeEA
