Vehicle Info NeededCOMP CAMSPART NUMBER: 249-23-227-4

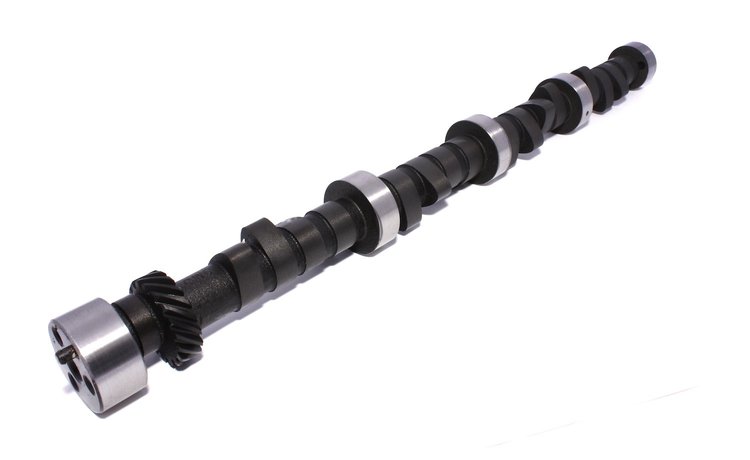

Comp Cams Xtreme Energy Hydraulic Flat Tappet Camshafts
$30995
Ships Tomorrow
Lowest Price GuaranteeChrysler 383-440ci Big Block 1959-80
- Xtreme Energy Hi-Lift Hydraulic Flat Tappet Camshaft Only
- Produces Better Throttle Response
- Produces Top Engine Horsepower
- Delivers Increased Engine Vacuum
- 1 Year Limited Warranty
Chrysler; Dodge; Plymouth; Challenger; Charger; Charger 500; Li' Red Express; Ram; Ramcharger; Cuda; MOPAR; 383; 400; 413; Wedge; 426 Wedge; 426 HEMI; 440; B; RB; Fury; Cuda; Road Runner; GTX; Duster; Coronet; Super Bee; Daytona; Valiant
Lift .525"/.525"
Duration 275°/287°
RPM Range 2000-5800
Lobe Angle 110°
Emissions Note:
This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.
CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
Part TypeCamshaft
BrandCOMP CAMS
Package Height2.75
Package Width3.0
Package Length24.5
Weight10.3 PG
Part CategoryPerformance Parts
Exh. Duration @ .050 In. (Deg)237
Cam StyleHydraulic flat tappet
Exh. Duration Advertised (Deg)287
Engine Make/SizeMopar 383-440
Intake Valve Lift With Factory Rocker Arm Ratio (I0.525
Int. Duration @ .050 In. (Deg)231
Basic Operating Rpm Range2,000-5,800
Intake Valve Lift0.525 in (13.335 mm)
Computer-Controlled CompatibleNo
Int. Duration Advertised (Deg)275
Lobe Separation (Deg)110
Rpm Range2000-5800
Advertised Duration275 int./287 exh.
Exhaust Valve Lift With Factory Rocker Arm Ratio (0.525
UsageStreet/Performance
Valve Lift With Factory Rocker Arm Ratio0.525 int./0.525 exh.
Camshaft Gear Attachment3-bolt
QuantitySold individually
Exhaust Valve Lift0.525 in (13.335 mm)
Advertised Intake Duration275
Intake Duration At 050 Inch Lift231
Exhaust Duration At 050 Inch Lift237
Advertised Exhaust Duration287
Lifter TypeHydraulic Flat Tappet
Part FitmentSemi Universal
Duration At 050 Inch Lift231 int./237 exh.
Valve Springs RequiredYes
Vendor Part Number23-227-4
Package Qty1
Package TypeEA
