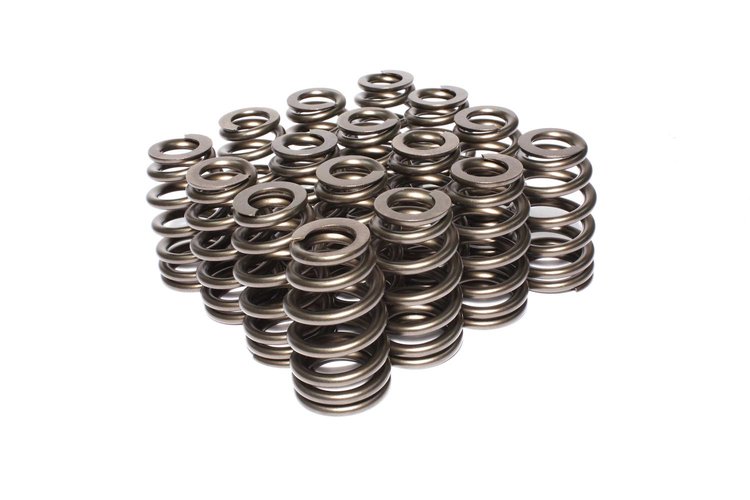

Beehive Valve Spring Universal
InfoVehicle Info Needed
COMP CAMSPART NUMBER: 249-26120-16

Beehive Valve Spring Universal

$30295
2 left in stock
ShippingShips on Nov 23, 2026
Lowest PriceLowest Price Guarantee

Items You Need

Valve Spring Shim Kit Kit Includes 16 of Each Listed Thickness

COMP CAMS

Valve Spring Shim Kit Kit Includes 16 of Each Listed Thickness

Part Number : 249-4754
$3495
Big Block Chevrolet Exhaust Rotator Eliminator Thickness:.300"

COMP CAMS

Big Block Chevrolet Exhaust Rotator Eliminator Thickness:.300"

Part Number : 249-4698-8
$6995
Valve Spring Compressor [Stud Mount]

JEGS

Valve Spring Compressor [Stud Mount]

Part Number : 555-80521
$5299$58.99
You Save$6.00
10° Titanium Retainers Valve Spring Diameter: 1.300"

COMP CAMS

10° Titanium Retainers Valve Spring Diameter: 1.300"

Part Number : 249-794-16
$39395

Universal
    Beehive Valve Spring
  • Universal
  • O.D. Base: 1.445
  • 16/pkg

    Specs:
  • OD: Top 1.095" Bottom 1.445"
  • ID: Top .650" Bottom 1.000"
  • Seat Pressure: 155 lbs @ 1.880'
  • Open Pressure: 377 lbs @ 1.280'
  • Coil Bind: 1.230"
  • Spring Rate: 370 lbs/in

    Valve Springs; Dual Valve Springs; Single Valve Springs; Beehive Springs; Conical Springs; Valve Lift; Max Lift; Spring Kit

    Advanced Beehive Valve Spring Technology

    Comp Cams Beehive Valve Springs are revolutionizing performance street/strip applications! These valve springs deliver increased valve train stability while offering a reduction in weight. This is achieved with less spring pressure for better valve control and reduced weight of both the spring and the retainer. Using Comp Spintron testing equipment, the Beehive spring was engineered to maximize "harmonic resistance" through reduced mass and unique coil spacing.

    Show More

    With highly reduced internal spring harmonics, engines equipped with these state-of-the-art Beehive valve springs rev higher and live longer as compared with other "performance" springs. For street/strip applications, these valve springs are the best choice possible. Because of the unique Beehive design, the valve train can handle more rpm and more aggressive cam profiles for occasional bracket racing but still retain durability for street driving.

Part TypeValve Spring Kit
Product LineComp Cams Beehive Valve Springs
BrandCOMP CAMS
Package Height2.9
Package Width3.7
Package Length13.6
Weight3.85 PG
Part CategoryPerformance Parts
CoatedNo
Damper Spring IncludedNo
Spring Rate370 lbs./in.
PositionN/A
Open Height1.28 in (32.5 mm)
Open Pressure (Lbs.)377
Installed Pressure (Lbs.)155
QuantitySold as a set of 16
Installed Height1.88 in (47.752 mm)
Valve Spring StyleBeehive
Outside Diameter Of Outer Spring1.445 in (36.7 mm)
Inside Diameter Of Outer Spring0.65 in (16.51 mm)
Inside Diameter0.650/1
Spring TypeSingle
Spring Rate (Lbs./In.)370
Part FitmentSemi Universal
Outside Diameter1.445 in (36.7 mm)
Number Of Springs Per ValveSingle
Camshaft TypeOEM
Vendor Part Number26120-16
Package Qty1
Package TypeEA
