Vehicle Info NeededCOMP CAMSPART NUMBER: 249-23-633-5

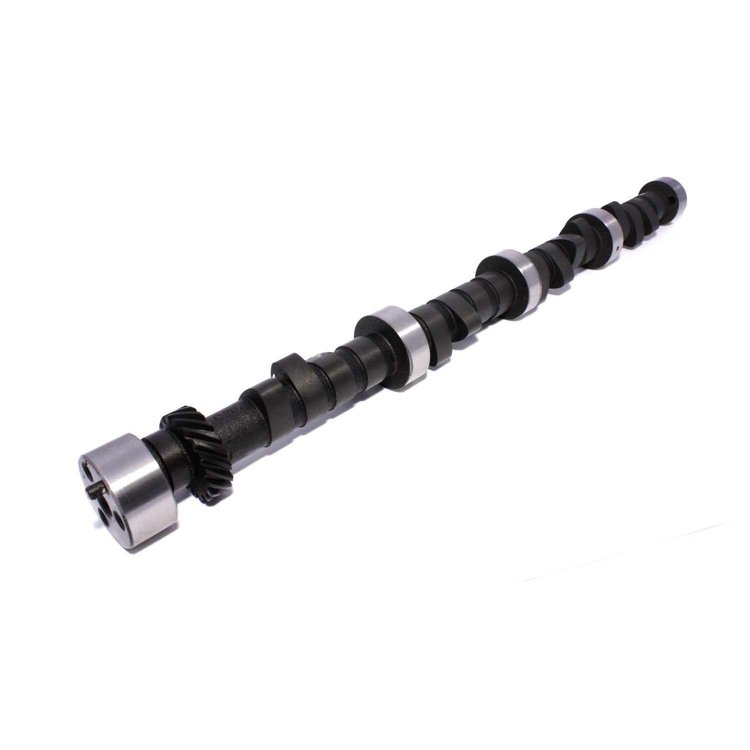

Drag Race Mechanical Flat Tappet Camshaft Chrysler 383-440 1959-80 Three Bolt Lift: .590"/.609"
$32595
Ships on 09/15/2026
Lowest Price GuaranteeChrysler 383-440 1959-80
- Drag Race Mechanical Flat Tappet Camshaft
- Lift: .590"/.609"
- Duration: 302°/311°
- Lobe Separation Angle: 108°
- RPM Range: 4500-7200
- Drag Race Xtreme RX Camshaft
- 1 Year Limited Warranty
273, 360, 318, AMC, Dodge, Mopar, Plymouth, Dart, Road Runner, Charger, Challenger, 383, 400, 440, 426, HEMI, 426 Wedge, 426 HEMI, RB, B, HEMI, 392, Chrysler, LA
Good Super Street, Super Gas or bracket cam. Best with 12:1 compression in 440 with 5000+ stall or 5500+ stall in 383.
Chrysler 383-440 1959-80
Three Bolt
Emissions Note:
This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.
CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
Part TypeCamshaft
BrandCOMP CAMS
Package Height2.8
Package Width3.1
Package Length24.4
Weight9.2 PG
Part CategoryPerformance Parts
Exh. Duration @ .050 In. (Deg)282
Cam StyleMechanical flat tappet
Grind NumberTL304S-8
Exh. Duration Advertised (Deg)311
Engine Make/SizeChevy Big Block (396-454)
Intake Valve Lift With Factory Rocker Arm Ratio (I0.59
Int. Duration @ .050 In. (Deg)274
Basic Operating Rpm Range4,500-7,200
Intake Valve Lash0.018 in (0.457 mm)
Intake Valve Lift0.59 in (14.986 mm)
Computer-Controlled CompatibleNo
Int. Duration Advertised (Deg)302
Lobe Separation (Deg)108
Rpm Range4500-7200
Advertised Duration302 int./311 exh.
Exhaust Valve Lift With Factory Rocker Arm Ratio (0.609
UsageStrip
Valve Lift With Factory Rocker Arm Ratio0.590 int./0.609 exh.
Camshaft Gear Attachment3-bolt
QuantitySold individually
Exhaust Valve Lash0.02 in (0.508 mm)
Exhaust Valve Lift0.609 in (15.469 mm)
Advertised Intake Duration302
Intake Duration At 050 Inch Lift274
Exhaust Duration At 050 Inch Lift285
Advertised Exhaust Duration311
Lifter TypeMechanical Flat Tappet
Part FitmentSemi Universal
Duration At 050 Inch Lift274 int./282 exh.
Valve Springs RequiredYes
Vendor Part Number23-633-5
Package Qty1
Package TypeEA
