Vehicle Info NeededCOMP CAMSPART NUMBER: 249-24-292-4

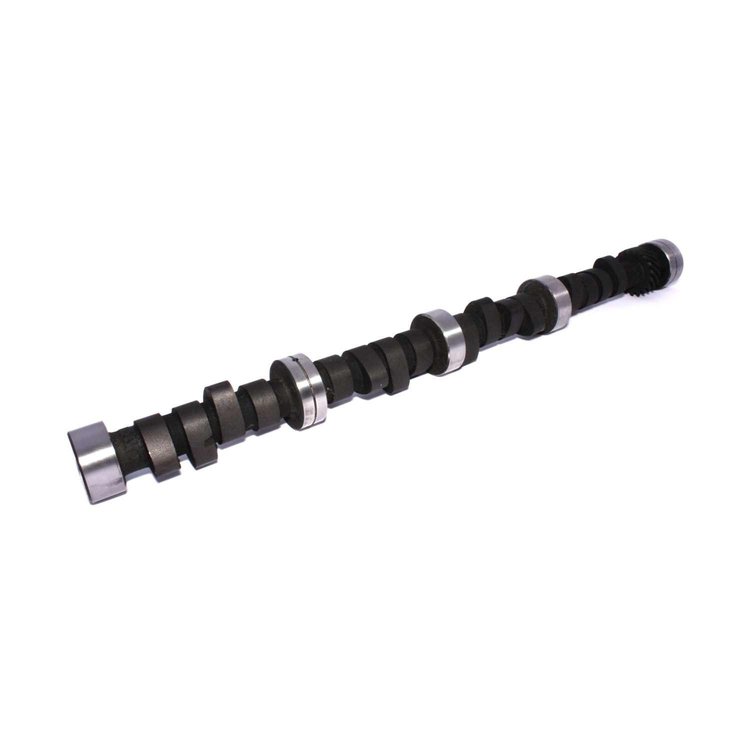

Street and Strip Hydraulic Flat Tappet Camshaft Chrysler 426 Hemi 1966-71 Lift: .534"/.517"
$30995
Ships on Sep 03, 2026
Lowest Price GuaranteeChrysler 426 Hemi 1966-1971Hydraulic Flat Tappet
- Street and Strip Hydraulic Flat Tappet Camshaft
- Lift: .534"/.517"
- Duration: 292°/292°
- Lobe Separation Angle: 108°
- RPM Range: 3000-6200
Street / Strip use. 3000+ stall or 4 speed, has rough idle.426 HEMI; 426; 392; Plymouth; Charger; Challenger; Six Pack; Barracuda; Cuda; Coronet; Wedge; B; RB; 440; 383; HEMI
Street/strip use. 3000+ stall or 4 speed, has rough idle.
Chrysler 426 Hemi 1966-71
Emissions Note:
This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.
CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
Part TypeCamshaft
BrandCOMP CAMS
Package Height2.8
Package Width3.0
Package Length24.3
Weight9.85 PG
Part CategoryPerformance Parts
Exh. Duration @ .050 In. (Deg)244
Cam StyleHydraulic flat tappet
Grind NumberCRH 292H-8
Exh. Duration Advertised (Deg)292
Engine Make/SizeMopar 426 Hemi
Intake Valve Lift With Factory Rocker Arm Ratio (I0.534
Int. Duration @ .050 In. (Deg)244
Basic Operating Rpm Range3,000-6,200
Intake Valve Lift0.534 in (13.564 mm)
Computer-Controlled CompatibleNo
Int. Duration Advertised (Deg)292
Lobe Separation (Deg)108
Rpm Range3000-6200
Advertised Duration292 int./292 exh.
Exhaust Valve Lift With Factory Rocker Arm Ratio (0.517
UsageStrip
Valve Lift With Factory Rocker Arm Ratio0.534 int./0.517 exh.
QuantitySold individually
Exhaust Valve Lift0.517 in (13.132 mm)
Advertised Intake Duration292
Intake Duration At 050 Inch Lift244
Exhaust Duration At 050 Inch Lift244
Advertised Exhaust Duration292
Lifter TypeHydraulic Flat Tappet
Duration At 050 Inch Lift244 int./244 exh.
Valve Springs RequiredYes
Vendor Part Number24-292-4
Package Qty1
Package TypeEA
