Vehicle Info NeededCOMP CAMSPART NUMBER: 249-31-254-4

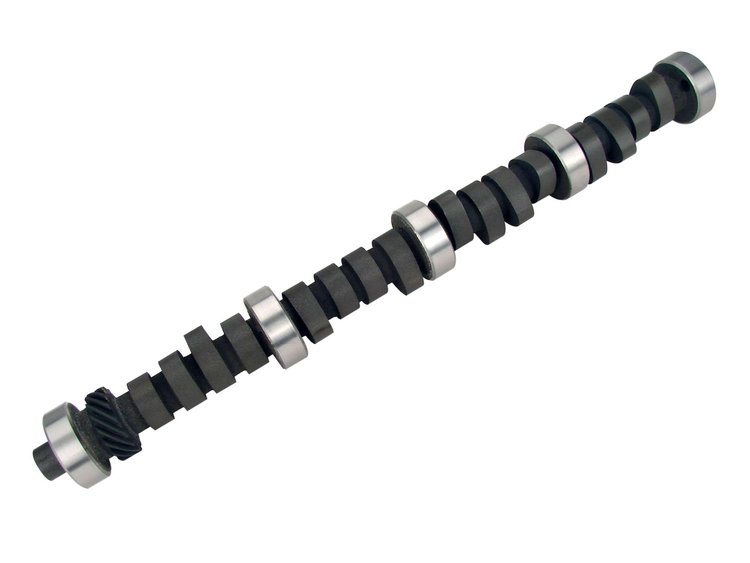

Xtreme Energy 294H Hydraulic Flat Tappet Camshaft Only Lift: .554" /.558" Duration: 294°/306° RPM Range: 2800-7000
$28295
Ships on Sep 04, 2026
Lowest Price GuaranteeFord 221-302 C.I. 8 cyl. 1963-1995 (Includes 221, 260, 289 & 302)
- Xtreme Energy 294H Hydraulic Flat Tappet Camshaft Only
Lift: .554''/.558''
Duration: 294°/306°
RPM Range: 2800-7000
*Note: Firing Order 1-5-4-2-6-3-7-8
Pro Street/Bracket Race, good intake, headers, gear, 3300+ stall converter.
| Operating Range: | 2800-7000 RPM |
| Duration Advertised: | 294° Intake / 306° Exhaust |
| Duration @ .050' Lift: | 250° Intake / 256° Exhaust |
| Valve Lift w/1.6 Rockers: | .554' Intake / .558' Exhaust |
| Lobe Separation Angle: | 110° |
Ford; SBF; Mustang; Windsor; Fairlane; Meteor; Mercury; GT; 22; 260; Sunbeam; Tiger; 289; 302; 351; 289; HiPo; K-Code; GT-350; Shelby; Boss; 5.0; 308; Windsor; Torino; Cougar; F-150; Squire; Thunderbird; LTD; Galaxie; Grand Marquis
Pro Street/bracket, good intake, headers, gear, 3300+ stall.
Emissions Note:
This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.
CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
Part TypeCamshaft
BrandCOMP CAMS
Package Height2.75
Package Width2.87
Package Length24.5
Weight9.45 PG
Part CategoryPerformance Parts
Exh. Duration @ .050 In. (Deg)256
Cam StyleHydraulic flat tappet
Grind NumberFS XE294H-10
Exh. Duration Advertised (Deg)306
Engine Make/SizeFord 289-302
Intake Valve Lift With Factory Rocker Arm Ratio (I0.554
Int. Duration @ .050 In. (Deg)250
Basic Operating Rpm Range2,800-7,000
Intake Valve Lift0.554 in (14.072 mm)
Computer-Controlled CompatibleNo
Int. Duration Advertised (Deg)294
Lobe Separation (Deg)110
Rpm Range2800-7000
Advertised Duration294 int./306 exh.
Exhaust Valve Lift With Factory Rocker Arm Ratio (0.558
UsageStreet/Performance
Valve Lift With Factory Rocker Arm Ratio0.554 int./0.558 exh.
QuantitySold individually
Exhaust Valve Lift0.558 in (14.173 mm)
Advertised Intake Duration294
Intake Duration At 050 Inch Lift250
Exhaust Duration At 050 Inch Lift256
Advertised Exhaust Duration306
Lifter TypeHydraulic Flat Tappet
Duration At 050 Inch Lift250 int./256 exh.
Valve Springs RequiredYes
Vendor Part Number31-254-4
Package Qty1
Package TypeEA
