Vehicle Info NeededCOMP CAMSPART NUMBER: 249-31-334-4

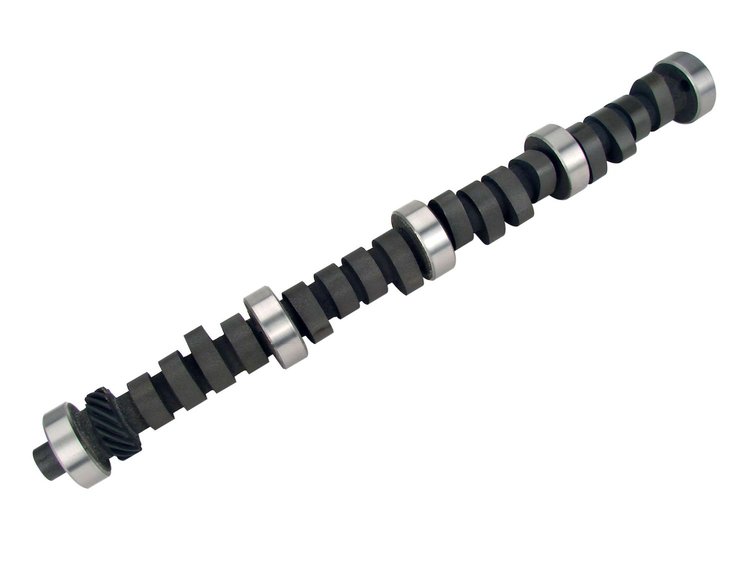

Comp Cams Magnum Mechanical Flat Tappet Camshafts
$30995
Ships on 09/08/2026
Lowest Price GuaranteeFord 289-302 ci. 8cyl. 1963-95
- Magnum 282S Mechanical Flat Tappet Camshaft
Lift: .528"/.528"
Duration: 282°/282°
Lobe Separation Angle: 110°
RPM Range: 2000-6000
Performance cam for Street Machines. Lower axle ratio and 2500 stall with headers. Rough idle.
| Operating Range: | 2000-6000 RPM |
| Duration Advertised: | 282° Intake / 282° Exhaust |
| Duration @ .050' Lift: | 236° Intake / 236° Exhaust |
| Valve Lift: | .528' Intake / .528' Exhaust |
| Lobe Separation Angle: | 110° |
Ford; SBF; Mustang; Windsor; Fairlane; Meteor; Mercury; GT; 22; 260; Sunbeam; Tiger; 289; 302; 351; 289; HiPo; K-Code; GT-350; Shelby; Boss; 5.0; 308; Windsor; Torino; Cougar; F-150; Squire; Thunderbird; LTD; Galaxie; Grand Marquis
Performance cam for street machines. Lower axle ratio and 2500+ stall with headers. Rough idle. Magnum Muscle Camshaft for 289c.i. 1965-68, factory 271 HP.
Emissions Note:
This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.
CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
Part TypeCamshaft
BrandCOMP CAMS
Package Height2.75
Package Width2.87
Package Length24.5
Weight9.5 PG
Part CategoryPerformance Parts
Exh. Duration @ .050 In. (Deg)236
Cam StyleMechanical flat tappet
Grind NumberFS 282S-10
Exh. Duration Advertised (Deg)282
Engine Make/SizeFord 289-302
Intake Valve Lift With Factory Rocker Arm Ratio (I0.528
Int. Duration @ .050 In. (Deg)236
Basic Operating Rpm Range2,000-6,000
Intake Valve Lash0.022 in (0.559 mm)
Intake Valve Lift0.528 in (13.411 mm)
Computer-Controlled CompatibleNo
Int. Duration Advertised (Deg)282
Lobe Separation (Deg)110
Rpm Range2000-6000
Advertised Duration282 int./282 exh.
Exhaust Valve Lift With Factory Rocker Arm Ratio (0.528
UsageStreet/Strip
Valve Lift With Factory Rocker Arm Ratio0.528 int./0.528 exh.
QuantitySold individually
Exhaust Valve Lash0.022 in (0.559 mm)
Exhaust Valve Lift0.528 in (13.411 mm)
Advertised Intake Duration282
Intake Duration At 050 Inch Lift236
Exhaust Duration At 050 Inch Lift236
Advertised Exhaust Duration282
Lifter TypeMechanical Flat Tappet
Duration At 050 Inch Lift236 int./236 exh.
Valve Springs RequiredYes
Vendor Part Number31-334-4
Package Qty1
Package TypeEA
