Vehicle Info NeededCOMP CAMSPART NUMBER: 249-31-335-4

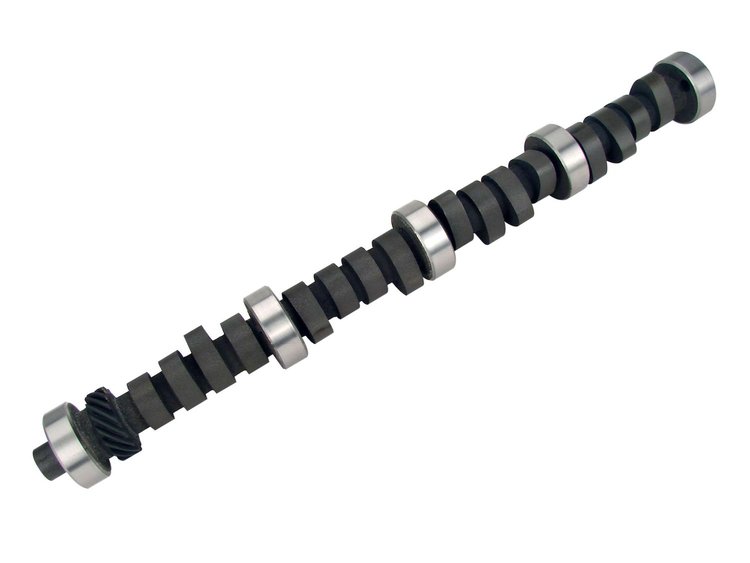

Comp Cams Magnum Mechanical Flat Tappet Camshafts
$30995
Ships on 09/08/2026
Lowest Price GuaranteeFord 289-302 ci. 8cyl. 1963-95
- Magnum 294S Mechanical Flat Tappet Camshaft
Lift: .560"/.560"
Duration: 294°/294°
Lobe Separation Angle: 110°
RPM Range: 2500-6500
Great for Street / Strip. 4 speed or automatic with 3500 stall. Intake, headers, low gears, very rough idle. 10:1 comp.
| Operating Range: | 2500-6500 RPM |
| Duration Advertised: | 294° Intake / 294° Exhaust |
| Duration @ .050' Lift: | 248° Intake / 248° Exhaust |
| Valve Lift: | .560' Intake / .560' Exhaust |
| Lobe Separation Angle: | 110° |
Ford; SBF; Mustang; Windsor; Fairlane; Meteor; Mercury; GT; 22; 260; Sunbeam; Tiger; 289; 302; 351; 289; HiPo; K-Code; GT-350; Shelby; Boss; 5.0; 308; Windsor; Torino; Cougar; F-150; Squire; Thunderbird; LTD; Galaxie; Grand Marquis
Great for street/strip. 4 speed or automatic with 3500+ stall. Intake, headers, low gears, very rough idle, 10:1 compression.
Emissions Note:
This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.
CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
Part TypeCamshaft
BrandCOMP CAMS
Package Height2.9
Package Width3.0
Package Length24.3
Weight9.35 PG
Part CategoryPerformance Parts
Exh. Duration @ .050 In. (Deg)248
Cam StyleMechanical flat tappet
Grind NumberFS 294S-10
Exh. Duration Advertised (Deg)294
Engine Make/SizeFord 289-302
Intake Valve Lift With Factory Rocker Arm Ratio (I0.56
Int. Duration @ .050 In. (Deg)248
Basic Operating Rpm Range2,500-6,500
Intake Valve Lash0.022 in (0.559 mm)
Intake Valve Lift0.56 in (14.224 mm)
Computer-Controlled CompatibleNo
Int. Duration Advertised (Deg)294
Lobe Separation (Deg)110
Rpm Range2500-6500
Advertised Duration294 int./294 exh.
Exhaust Valve Lift With Factory Rocker Arm Ratio (0.56
UsageStreet/Strip
Valve Lift With Factory Rocker Arm Ratio0.560 int./0.560 exh.
QuantitySold individually
Exhaust Valve Lash0.022 in (0.559 mm)
Exhaust Valve Lift0.56 in (14.224 mm)
Advertised Intake Duration294
Intake Duration At 050 Inch Lift248
Exhaust Duration At 050 Inch Lift248
Advertised Exhaust Duration294
Lifter TypeMechanical Flat Tappet
Part FitmentSemi Universal
Duration At 050 Inch Lift248 int./248 exh.
Valve Springs RequiredYes
Vendor Part Number31-335-4
Package Qty1
Package TypeEA
