Product Discontinued
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

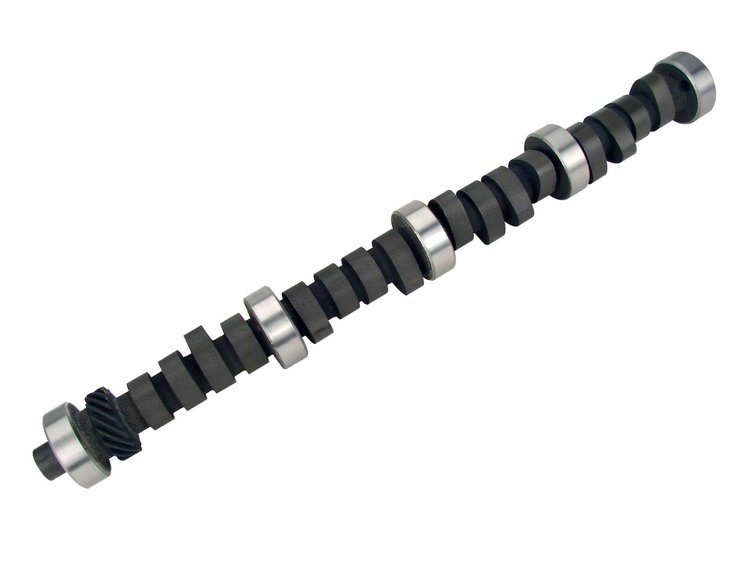

Ford 289-302 ci. 8cyl. 1963-95
- Magnum 306S Mechanical Flat Tappet Camshaft
Lift: .592"/.592"
Duration: 306°/306°
Lobe Separation Angle: 110°
RPM Range: 3000-7000
Limited Street use, with 4000 stall or 4 speed, with 4.10 or lower gear. Radical idle. 11:1 comp.
| Operating Range: | 3000-7000 RPM |
| Duration Advertised: | 306° Intake / 306° Exhaust |
| Duration @ .050' Lift: | 260° Intake / 260° Exhaust |
| Valve Lift: | .592' Intake / .592' Exhaust |
| Lobe Separation Angle: | 110° |
Ford; SBF; Mustang; Windsor; Fairlane; Meteor; Mercury; GT; 22; 260; Sunbeam; Tiger; 289; 302; 351; 289; HiPo; K-Code; GT-350; Shelby; Boss; 5.0; 308; Windsor; Torino; Cougar; F-150; Squire; Thunderbird; LTD; Galaxie; Grand Marquis
Limited street use, with 4000+ stall or 4 speed, with 4.10 or lower gear.
Emissions Note:
This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.
CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
Part TypeCamshaft
BrandCOMP CAMS
Package Height2.8
Package Width3.1
Package Length24.3
Weight9.09 PG
Part CategoryPerformance Parts
Exh. Duration @ .050 In. (Deg)260
Cam StyleMechanical flat tappet
Grind NumberFS 306S-10
Exh. Duration Advertised (Deg)306
Engine Make/SizeFord 289-302
Intake Valve Lift With Factory Rocker Arm Ratio (I0.592
Int. Duration @ .050 In. (Deg)260
Basic Operating Rpm Range3,000-7,000
Intake Valve Lash0.022 in (0.559 mm)
Intake Valve Lift0.592 in (15.037 mm)
Computer-Controlled CompatibleNo
Int. Duration Advertised (Deg)306
Lobe Separation (Deg)110
Rpm Range3000-7000
Advertised Duration306 int./306 exh.
Exhaust Valve Lift With Factory Rocker Arm Ratio (0.592
UsageStreet/Strip
Valve Lift With Factory Rocker Arm Ratio0.592 int./0.592 exh.
QuantitySold individually
Exhaust Valve Lash0.022 in (0.559 mm)
Exhaust Valve Lift0.592 in (15.037 mm)
Advertised Intake Duration306
Intake Duration At 050 Inch Lift260
Exhaust Duration At 050 Inch Lift260
Advertised Exhaust Duration306
Lifter TypeMechanical Flat Tappet
Duration At 050 Inch Lift260 int./260 exh.
Valve Springs RequiredYes
Vendor Part Number31-336-4
Package Qty1
Package TypeEA
