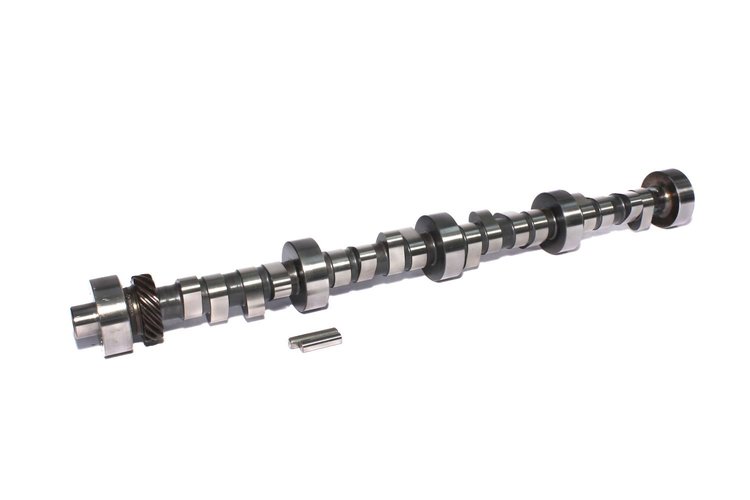

Magnum Hydraulic Roller Camshaft Ford 289-302 1963-95 Retro-Fit Lift: .544"/.544"
InfoVehicle Info Needed
COMP CAMSPART NUMBER: 249-31-452-8

Magnum Hydraulic Roller Camshaft Ford 289-302 1963-95 Retro-Fit Lift: .544"/.544"

$52295
ShippingShips on 09/16/2026
Lowest PriceLowest Price Guarantee

Ford 289-302ci 1963-1995
  • Retro-Fit Non-EFI
      • Magnum Hydraulic Roller Camshaft
      Ford 289-302 1963-95 Retro-Fit
    • Lift: .544"/.544"
    • Duration: 290°/290°
    • Lobe Separation Angle: 110°
    • RPM Range: 3000-6500

    • For engines that DID NOT come from the factory with hydraulic roller cams, NOT FOR E.F.I.
    • Cams Are Very Aggressive
    • Designed For Performance Oriented Vehicles
    • Deliver More Power Than Standard Camshafts
    • 1 Year Limited Warranty
    Part TypeCamshaft
    BrandCOMP CAMS
    Package Height2.9
    Package Width2.9
    Package Length24.3
    Weight7.7 PG
    Part CategoryPerformance Parts
    Exh. Duration @ .050 In. (Deg)230
    Cam StyleHydraulic roller tappet
    Grind NumberFS 290RF-HR10
    Exh. Duration Advertised (Deg)290
    Engine Make/SizeFord 289-302
    Intake Valve Lift With Factory Rocker Arm Ratio (I0.544
    Int. Duration @ .050 In. (Deg)230
    Basic Operating Rpm Range3,000-6,500
    Intake Valve Lift0.544 in (13.818 mm)
    Computer-Controlled CompatibleNo
    Int. Duration Advertised (Deg)290
    Lobe Separation (Deg)110
    Rpm Range3000-6500
    Advertised Duration290 int./290 exh.
    Exhaust Valve Lift With Factory Rocker Arm Ratio (0.544
    UsageStreet/Strip
    Valve Lift With Factory Rocker Arm Ratio0.544 int./0.544 exh.
    QuantitySold individually
    Exhaust Valve Lift0.544 in (13.818 mm)
    Advertised Intake Duration290
    Intake Duration At 050 Inch Lift230
    Exhaust Duration At 050 Inch Lift230
    Advertised Exhaust Duration290
    Lifter TypeHydraulic Roller
    Duration At 050 Inch Lift230 int./230 exh.
    Valve Springs RequiredYes
    Vendor Part Number31-452-8
    Package Qty1
    Package TypeEA
