Vehicle Info NeededCOMP CAMSPART NUMBER: 249-32-235-4

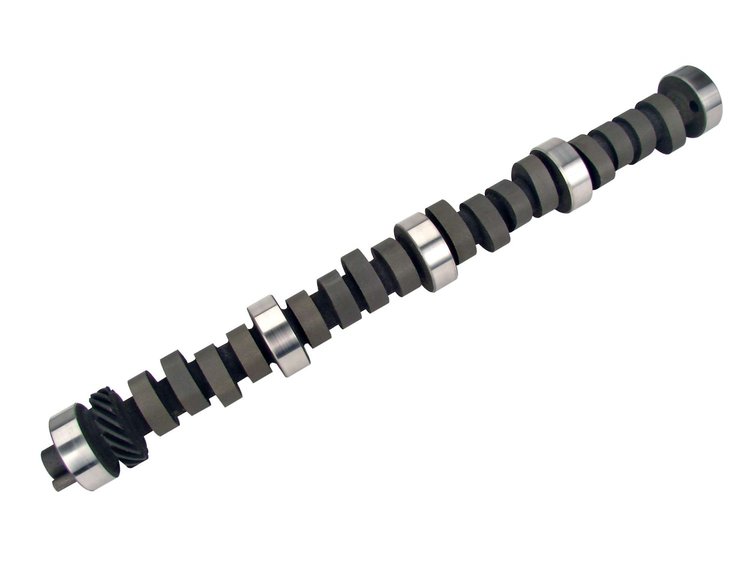

Magnum 305H Hydraulic Flat Tappet Camshaft Lift .585"/.585" Duration 305°/305° RPM Range 3000-7000
$30995
Ships on 09/15/2026
Lowest Price GuaranteeFord 351C, 351M-400M 1970-82
- Magnum 305H Hydraulic Flat Tappet Camshaft
Lift .585"/.585"
Duration 305°/305°
RPM Range 3000-7000
Hydraulic-Bracket Race / limited street use, 3500+ stall, 11:1 compression, radical rough idle.
Ford, 351, 351 Cleveland, 400, 351 Modified, 400 Modified, Ford F100, Mach 1, Mustang
Bracket race/limited street use, 3500+ stall, 11:1 compression, radical idle. Good torque in heavy car. 3500+ stall or 4 speed, 10:1 compression.
Emissions Note:
This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.
CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
Part TypeCamshaft
BrandCOMP CAMS
Package Height2.75
Package Width2.87
Package Length24.5
Weight9.7 PG
Part CategoryPerformance Parts
Exh. Duration @ .050 In. (Deg)253
Cam StyleHydraulic flat tappet
Grind NumberFC 305H-10
Exh. Duration Advertised (Deg)305
Engine Make/SizeFord 351M-400
Intake Valve Lift With Factory Rocker Arm Ratio (I0.585
Int. Duration @ .050 In. (Deg)253
Basic Operating Rpm Range3,000-7,000
Intake Valve Lift0.585 in (14.859 mm)
Computer-Controlled CompatibleNo
Int. Duration Advertised (Deg)305
Lobe Separation (Deg)110
Rpm Range3000-7000
Advertised Duration305 int./305 exh.
Exhaust Valve Lift With Factory Rocker Arm Ratio (0.585
UsageStreet/Strip
Valve Lift With Factory Rocker Arm Ratio0.585 int./0.585 exh.
QuantitySold individually
Exhaust Valve Lift0.585 in (14.859 mm)
Advertised Intake Duration305
Intake Duration At 050 Inch Lift253
Exhaust Duration At 050 Inch Lift253
Advertised Exhaust Duration305
Lifter TypeHydraulic Flat Tappet
Duration At 050 Inch Lift253 int./253 exh.
Valve Springs RequiredYes
Vendor Part Number32-235-4
Package Qty1
Package TypeEA
