Vehicle Info NeededCOMP CAMSPART NUMBER: 249-33-230-4

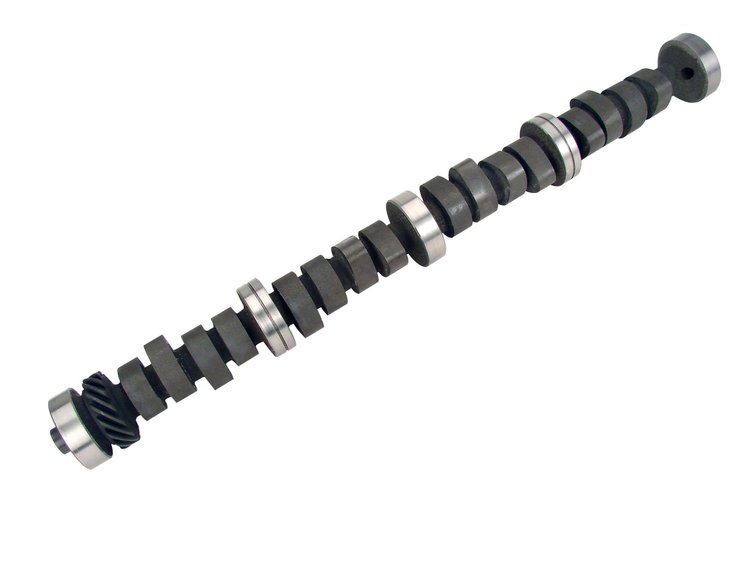

Magnum 280H Hydraulic Flat Tappet Camshaft Lift: .530" /.530" Duration: 280°/280° RPM Range: 2000-6000
$30995
2 left in stock
Ships Tomorrow
Lowest Price GuaranteeFord 352-428 c.i. 8 CYL. 1963-1976
- Magnum 280H Hydraulic Flat Tappet Camshaft
Lift: .530''/.530"
Duration: 280°/280°
RPM Range: 2000-6000
Works best in street machines with aftermarket stall, lower gears and headers. Rough idle.
| Operating Range: | 2000-6000 RPM |
| Duration Advertised: | 280° Intake / 280° Exhaust |
| Duration @ .050' Lift: | 230° Intake / 230° Exhaust |
| Valve Lift w/1.73 Rockers: | .530' Intake / .530' Exhaust |
| Lobe Separation Angle: | 110° |
Ford, FE, 352, 428, Super Cobra Jet, SCJ, Cobra Jet, Mustang, Mach 1, Shelby, 332, 361, 390, 406, 410, 427, 428, Truck, F100, F150, Ford Truck
Works best in street machines with 2000+ stall, lower gears and headers. Rough idle.
Emissions Note:
This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.
CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
Part TypeCamshaft
BrandCOMP CAMS
Package Height2.75
Package Width2.87
Package Length24.5
Weight11.2 PG
Part CategoryPerformance Parts
Exh. Duration @ .050 In. (Deg)230
Cam StyleHydraulic flat tappet
Grind NumberFB 280H-10
Exh. Duration Advertised (Deg)280
Engine Make/SizeFord 352-428
Intake Valve Lift With Factory Rocker Arm Ratio (I0.53
Int. Duration @ .050 In. (Deg)230
Basic Operating Rpm Range2,000-6,000
Intake Valve Lift0.53 in (13.462 mm)
Computer-Controlled CompatibleNo
Int. Duration Advertised (Deg)280
Lobe Separation (Deg)110
Rpm Range2000-6000
Advertised Duration280 int./280 exh.
Exhaust Valve Lift With Factory Rocker Arm Ratio (0.53
UsageStreet/Strip
Valve Lift With Factory Rocker Arm Ratio0.530 int./0.530 exh.
QuantitySold individually
Exhaust Valve Lift0.53 in (13.462 mm)
Advertised Intake Duration280
Intake Duration At 050 Inch Lift230
Exhaust Duration At 050 Inch Lift230
Advertised Exhaust Duration280
Lifter TypeHydraulic Flat Tappet
Duration At 050 Inch Lift230 int./230 exh.
Valve Springs RequiredYes
Vendor Part Number33-230-4
Package Qty1
Package TypeEA
