Vehicle Info NeededCOMP CAMSPART NUMBER: 249-33-245-4

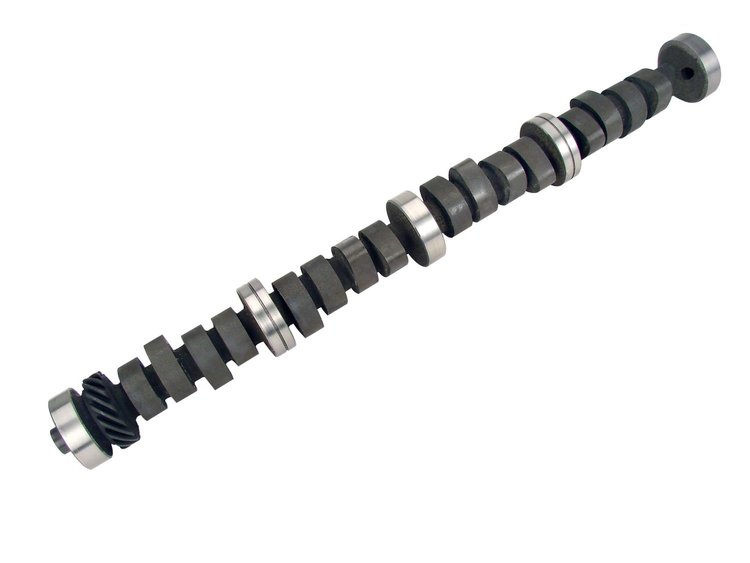

Comp Cams Magnum Mechanical Flat Tappet Camshafts
$30995
3 left in stock
Ships Today
Lowest Price GuaranteeFord 352-428 c.i. 8 CYL. 1963-1976
- Magnum 282S Mechanical Flat Tappet Camshaft
Lift: .571"/.571"
Duration: 282°/282°
Lobe Separation Angle: 110°
RPM Range: 2000-6000
Use in street machine with mild converter and lower gear. 9:1 compression and headers. Rough idle.
| Operating Range: | 2000-6000 RPM |
| Duration Advertised: | 282° Intake / 282° Exhaust |
| Duration @ .050' Lift: | 236° Intake / 236° Exhaust |
| Valve Lift w/1.73 Rockers: | .571' Intake / .571' Exhaust |
| Valve Setting: | .022' Intake / .022' Exhaust |
| Lobe Separation Angle: | 110° |
Ford, FE, 352, 428, Super Cobra Jet, SCJ, Cobra Jet, Mustang, Mach 1, Shelby, 332, 361, 390, 406, 410, 427, 428, Truck, F100, F150, Ford Truck
Use in street machine with 2400+ stall and lower gear. 9:1 compression and headers. Rough idle.
Emissions Note:
This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.
CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
Part TypeCamshaft
BrandCOMP CAMS
Package Height2.8
Package Width3.0
Package Length24.2
Weight10.9 PG
Part CategoryPerformance Parts
Exh. Duration @ .050 In. (Deg)236
Cam StyleMechanical flat tappet
Grind NumberFB 282S-10
Exh. Duration Advertised (Deg)282
Engine Make/SizeFord 352-428
Intake Valve Lift With Factory Rocker Arm Ratio (I0.571
Int. Duration @ .050 In. (Deg)236
Basic Operating Rpm Range2,000-6,000
Intake Valve Lash0.022 in (0.559 mm)
Intake Valve Lift0.571 in (14.503 mm)
Computer-Controlled CompatibleNo
Int. Duration Advertised (Deg)282
Lobe Separation (Deg)110
Rpm Range2000-6000
Advertised Duration282 int./282 exh.
Exhaust Valve Lift With Factory Rocker Arm Ratio (0.571
UsageStreet/Strip
Valve Lift With Factory Rocker Arm Ratio0.571 int./0.571 exh.
QuantitySold individually
Exhaust Valve Lash0.022 in (0.559 mm)
Exhaust Valve Lift0.571 in (14.503 mm)
Advertised Intake Duration282
Intake Duration At 050 Inch Lift236
Exhaust Duration At 050 Inch Lift236
Advertised Exhaust Duration282
Lifter TypeMechanical Flat Tappet
Duration At 050 Inch Lift236 int./236 exh.
Valve Springs RequiredYes
Vendor Part Number33-245-4
Package Qty1
Package TypeEA
