Vehicle Info NeededCOMP CAMSPART NUMBER: 249-33-648-5

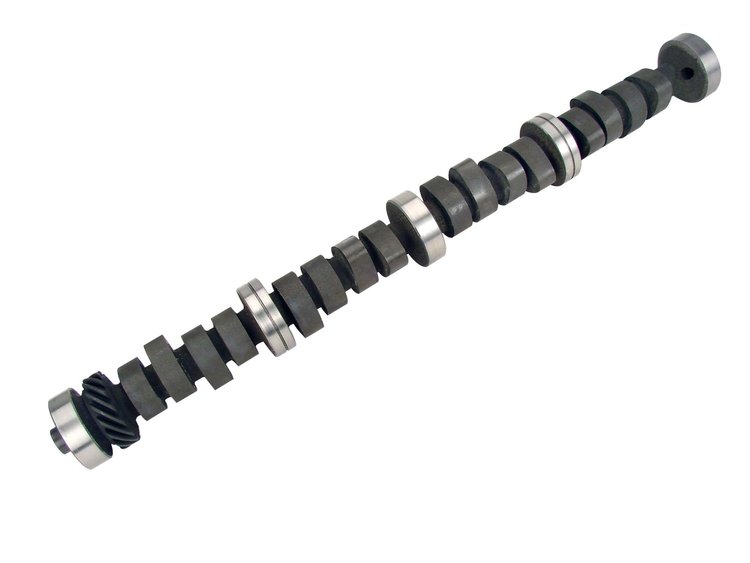

Drag Race Mechanical Flat Tappet Camshaft Ford 352-428 1963-76 Lift: .600"/.626"
$32595
Ships on 09/15/2026
Lowest Price GuaranteeFord 352-428 1963-76
- Drag Race Mechanical Flat Tappet Camshaft
- Lift: .600"/.626"
- Duration: 294°/304°
- Lobe Separation Angle: 108°
- RPM Range: 3500-6500
- Drag Race Xtreme RX Camshaft
- 1 Year Limited Warranty
Ford, FE, 352, 428, Super Cobra Jet, SCJ, Cobra Jet, Mustang, Mach 1, Shelby, 332, 361, 390, 406, 410, 427, 428, Truck, F100, F150, Ford Truck
Great torque in heavy car with 3500+ stall, 10:1 compression.
Ford 352-428 1963-76
Emissions Note:
This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.
CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
Part TypeCamshaft
BrandCOMP CAMS
Package Height2.9
Package Width3.0
Package Length24.2
Weight10.45 PG
Part CategoryPerformance Parts
Exh. Duration @ .050 In. (Deg)266
Cam StyleMechanical flat tappet
Grind Number294B-8
Exh. Duration Advertised (Deg)304-1
Engine Make/SizeFord 352-428
Intake Valve Lift With Factory Rocker Arm Ratio (I0.6
Int. Duration @ .050 In. (Deg)256
Basic Operating Rpm Range3,500-6,500
Intake Valve Lash0.028 in (0.711 mm)
Intake Valve Lift0.6 in (15.24 mm)
Computer-Controlled CompatibleNo
Int. Duration Advertised (Deg)294-1
Lobe Separation (Deg)108
Rpm Range3500-6500
Advertised Duration294 int./304 exh.
Exhaust Valve Lift With Factory Rocker Arm Ratio (0.626
UsageStrip
Valve Lift With Factory Rocker Arm Ratio0.600 int./0.626 exh.
QuantitySold individually
Exhaust Valve Lash0.03 in (0.762 mm)
Exhaust Valve Lift0.626 in (15.9 mm)
Advertised Intake Duration294
Intake Duration At 050 Inch Lift256
Exhaust Duration At 050 Inch Lift266
Advertised Exhaust Duration304
Lifter TypeMechanical Flat Tappet
Part FitmentSemi Universal
Duration At 050 Inch Lift256 int./266 exh.
Valve Springs RequiredYes
Vendor Part Number33-648-5
Package Qty1
Package TypeEA
