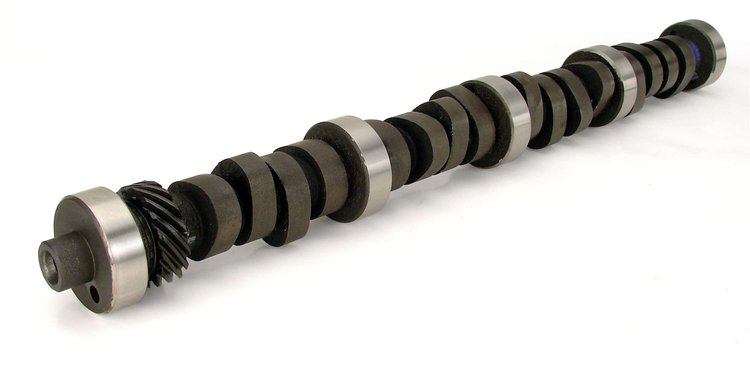

Xtreme Energy 274H Hydraulic Flat Tappet Camshaft Only Lift: .519" /.523" Duration: 274°/286° RPM Range: 1800-6000
InfoVehicle Info Needed
COMP CAMSPART NUMBER: 249-35-246-3

Xtreme Energy 274H Hydraulic Flat Tappet Camshaft Only Lift: .519" /.523" Duration: 274°/286° RPM Range: 1800-6000

$29795
3 left in stock
ShippingShips Today
Lowest PriceLowest Price Guarantee

Items You Need

Hi-Tech Pushrod Ford 351W 1969-78

COMP CAMS

Hi-Tech Pushrod Ford 351W 1969-78

Part Number : 249-7965-1
$2495
Magnum Pushrod Set Ford 351W 1969-78

COMP CAMS

Magnum Pushrod Set Ford 351W 1969-78

Part Number : 249-7472-16
$16795
Composite Distributor Gear Small Block Ford 302-351W .467" Shaft Diameter

COMP CAMS

Composite Distributor Gear Small Block Ford 302-351W .467" Shaft Diameter

Part Number : 249-35200
$15995
10° Super Lock Steel Retainers Valve Spring Diameter: 1.437" to 1.500"

COMP CAMS

10° Super Lock Steel Retainers Valve Spring Diameter: 1.437" to 1.500"

Part Number : 249-740-16
$8699

Ford 351W 8 cyl. 1969-1996
    Xtreme Energy 274H Hydraulic Flat Tappet Camshaft Only
    Lift: .519''/.523''
    Duration: 274°/286°
    RPM Range: 1800-6000


    *Note: Firing Order 1-3-7-2-6-5-4-8

    Very strong torque and throttle response, 2500+ stall converter.

    Operating Range:1800-6000 RPM
    Duration Advertised:274° Intake / 286° Exhaust
    Duration @ .050' Lift:230° Intake / 236° Exhaust
    Valve Lift w/1.6 Rockers:.519' Intake / .523' Exhaust
    Lobe Separation Angle:110°

    Ford, 351W, Windsor, 351 Windsor, 302, 5.0 HO, Explorer, Mutang, Ford Mustang, 408, 347, Fox Body Mustang, Fox Body, 302 HO, Cougar, F100, F150


    Very strong torque and throttle response, 2500+ stall.

Emissions Note:

This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.

CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART

Part TypeCamshaft
BrandCOMP CAMS
Package Height2.8
Package Width2.8
Package Length24.3
Weight9.6 PG
Part CategoryPerformance Parts
Exh. Duration @ .050 In. (Deg)236
Cam StyleHydraulic flat tappet
Grind NumberFW XE274H-10
Exh. Duration Advertised (Deg)286
Engine Make/SizeFord 351W
Intake Valve Lift With Factory Rocker Arm Ratio (I0.519
Int. Duration @ .050 In. (Deg)230
Basic Operating Rpm Range1,800-6,000
Intake Valve Lift0.519 in (13.183 mm)
Computer-Controlled CompatibleNo
Int. Duration Advertised (Deg)274
Lobe Separation (Deg)110
Rpm Range1800-6000
Advertised Duration274 int./286 exh.
Exhaust Valve Lift With Factory Rocker Arm Ratio (0.523
UsageStreet/Performance
Valve Lift With Factory Rocker Arm Ratio0.519 int./0.523 exh.
QuantitySold individually
Exhaust Valve Lift0.523 in (13.284 mm)
Advertised Intake Duration274
Intake Duration At 050 Inch Lift230
Exhaust Duration At 050 Inch Lift236
Advertised Exhaust Duration286
Lifter TypeHydraulic Flat Tappet
Duration At 050 Inch Lift230 int./236 exh.
Valve Springs RequiredYes
Vendor Part Number35-246-3
Package Qty1
Package TypeEA
Some parts are not legal for use in California or other states with similar laws / regulations
