Vehicle Info NeededCOMP CAMSPART NUMBER: 249-35-324-8

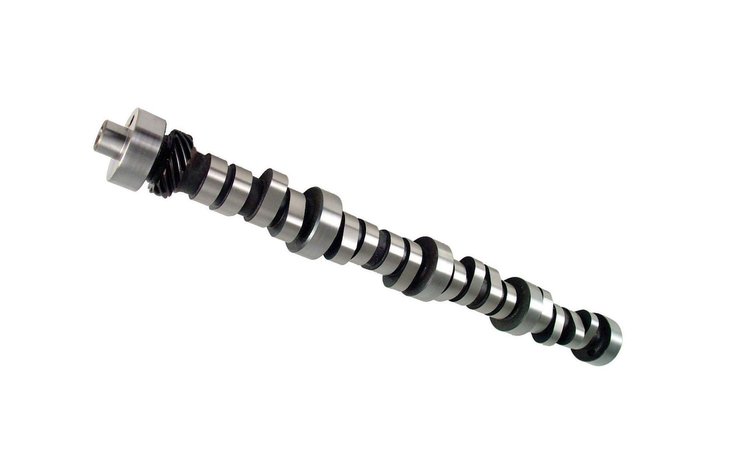

Comp Cams Xtreme Energy Hydraulic Roller Camshafts
$57795
Ships on 09/09/2026
Lowest Price GuaranteeFord 5.0L 8 cyl. 1982-2002Computer Controlled (EFI) for engines originally equipped with hydraulic roller camshaft. (WITH 1.7 ROCKERS)
- Xtreme Energy XE270HR Hydraulic Roller CamshaftLift: .544"/.544"
- Computer compatible (E.F.I.) with O.E. hydraulic roller cams 1985-95 USING 1.7:1 ROCKERS
Ford; SBF; Mustang; Windsor; Fairlane; Meteor; Mercury; GT; 22; 260; Sunbeam; Tiger; 289; 302; 351; 289; HiPo; K-Code; GT-350; Shelby; Boss; 5.0; 308; Windsor; Torino; Cougar; F-150; Squire; Thunderbird; LTD; Galaxie; Grand Marquis
For use with 1.7:1 rockers. Mild modifications, 3.20-3.73 gears, larger throttle body and mass air, good heads and manifold.
Duration: 270°/276°
Lobe Separation Angle: 112°
RPM Range: 1800-5800
Hydraulic Roller-For use with 1.7:1 rockers. Mild modifications, 3.20 - 3.73, larger throttle body and mass air, good heads and manifold.
Emissions Note:
This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.
CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
Part TypeCamshaft
BrandCOMP CAMS
Package Height2.8
Package Width3.0
Package Length24.2
Weight9.85 PG
Part CategoryPerformance Parts
Exh. Duration @ .050 In. (Deg)224
Cam StyleHydraulic roller tappet
Grind NumberFW XE270HR-12
Exh. Duration Advertised (Deg)276
Engine Make/SizeFord 5.0L/302
Intake Valve Lift With Factory Rocker Arm Ratio (I0.544
Int. Duration @ .050 In. (Deg)218
Basic Operating Rpm Range1,800-5,800
Intake Valve Lift0.544 in (13.818 mm)
Computer-Controlled CompatibleYes
Int. Duration Advertised (Deg)270
Lobe Separation (Deg)112
Rpm Range1800-5800
Advertised Duration270 int./276 exh.
Exhaust Valve Lift With Factory Rocker Arm Ratio (0.544
UsageStreet/Performance
Valve Lift With Factory Rocker Arm Ratio0.544 int./0.544 exh.
QuantitySold individually
Exhaust Valve Lift0.544 in (13.818 mm)
Advertised Intake Duration270
Intake Duration At 050 Inch Lift218
Exhaust Duration At 050 Inch Lift224
Advertised Exhaust Duration276
Lifter TypeHydraulic Roller
Duration At 050 Inch Lift218 int./224 exh.
Valve Springs RequiredYes
Vendor Part Number35-324-8
Package Qty1
Package TypeEA
