COMP CAMSPART NUMBER: 249-35-412-8

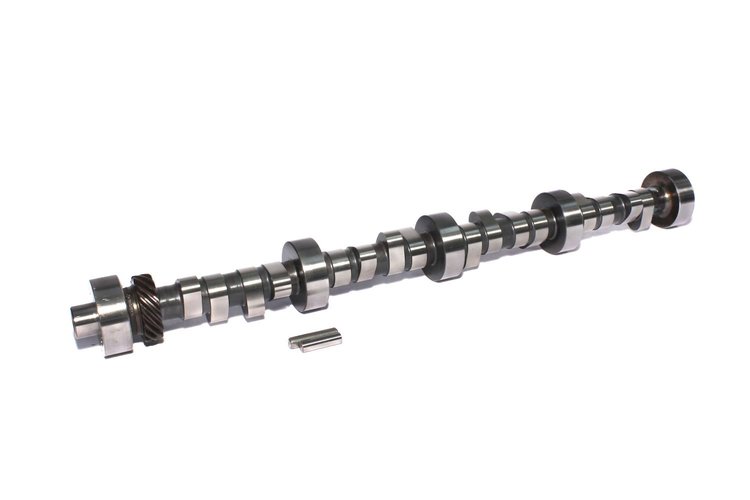

Magnum Hydraulic Roller Camshaft Ford 351W 1969-1995 Retro Fit Lift: .480"/.480"
$52295
Ford 351W 1969-1995Retro-Fit Non-EFI
- Magnum Hydraulic Roller Camshaft
- Lift: .480"/.480"
- Duration: 260°/260°
- Lobe Separation Angle: 110°
- RPM Range: 1200-4500
- For engines that DID NOT come from the factory with hydraulic roller cams, NOT FOR E.F.I.
- Cams Are Very Aggressive
- Designed For Performance Oriented Vehicles
- Deliver More Power Than Standard Camshafts
- 1 Year Limited Warranty
Ford, 351W, Windsor, 351 Windsor, 302, 5.0 HO, Explorer, Mutang, Ford Mustang, 408, 347, Fox Body Mustang, Fox Body, 302 HO, Cougar, F100, F150
Best with stock engine for economy or towing. Use with stock gears and converter, smooth idle.
Ford 351W 1969-1995 Retro Fit
Emissions Note:
This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.
CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
Part TypeCamshaft
BrandCOMP CAMS
Package Height3.9
Package Width7.1
Package Length25.1
Weight7.85 PG
Part CategoryPerformance Parts
Exh. Duration @ .050 In. (Deg)206
Cam StyleHydraulic roller tappet
Grind NumberFW 260RF-HR10
Exh. Duration Advertised (Deg)260
Engine Make/SizeFord 351W
Intake Valve Lift With Factory Rocker Arm Ratio (I0.48
Int. Duration @ .050 In. (Deg)206
Basic Operating Rpm Range1,800-6,200
Intake Valve Lift0.48 in (12.192 mm)
Computer-Controlled CompatibleNo
Int. Duration Advertised (Deg)260
Lobe Separation (Deg)110
Rpm Range1200-4500
Advertised Duration260 int./260 exh.
Exhaust Valve Lift With Factory Rocker Arm Ratio (0.48
UsageStreet/Strip
Valve Lift With Factory Rocker Arm Ratio0.480 int./0.480 exh.
QuantitySold individually
Exhaust Valve Lift0.48 in (12.192 mm)
Advertised Intake Duration260
Intake Duration At 050 Inch Lift205
Exhaust Duration At 050 Inch Lift205
Advertised Exhaust Duration260
Lifter TypeHydraulic Roller
Part FitmentSemi Universal
Duration At 050 Inch Lift205 int./205 exh.
Valve Springs RequiredYes
Vendor Part Number35-412-8
Package Qty1
Package TypeEA
