Product Discontinued
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.
Ford 351W 8 cyl. 1969-1996For engines NOT originally equipped with a hydraulic roller camshaft.

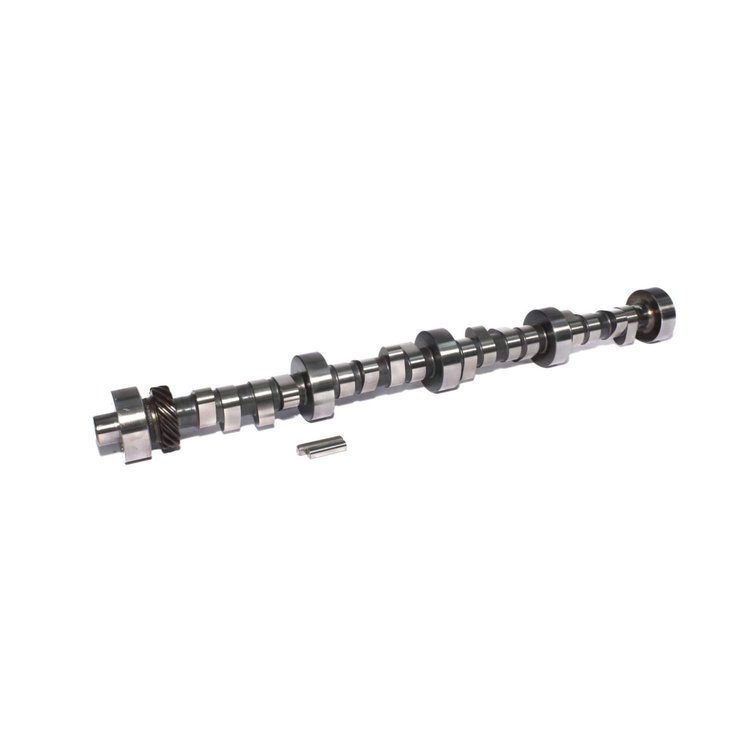

- Xtreme Energy XR276RF-HR Retro-Fit Hydraulic Roller Camshaft
Lift .513"/.513"
Duration 276°/282°
Lobe Separation Angle: 110°
RPM Range 1800-5800
Hydraulic Roller-Strong mid-range performance, Street Machines with 3.55+ gears, 2200+ converter
Ford, 351W, Windsor, 351 Windsor, 302, 5.0 HO, Explorer, Mutang, Ford Mustang, 408, 347, Fox Body Mustang, Fox Body, 302 HO, Cougar, F100, F150
Strong mid-range performance, street machines with 3.55+ gears, 2200+ converter.
Emissions Note:
This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.
CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
Part TypeCamshaft
BrandCOMP CAMS
Package Height2.7
Package Width3.0
Package Length24.2
Weight7.83 PG
Part CategoryPerformance Parts
Exh. Duration @ .050 In. (Deg)230
Cam StyleHydraulic roller tappet
Grind NumberXR2726RF-HR
Exh. Duration Advertised (Deg)282
Engine Make/SizeFord 351W
Intake Valve Lift With Factory Rocker Arm Ratio (I0.513
Int. Duration @ .050 In. (Deg)224
Basic Operating Rpm Range1,800-5,800
Intake Valve Lift0.513 in (13.03 mm)
Computer-Controlled CompatibleNo
Int. Duration Advertised (Deg)276
Lobe Separation (Deg)110
Rpm Range1800-5800
Advertised Duration276 int./282 exh.
Exhaust Valve Lift With Factory Rocker Arm Ratio (0.513
UsageStreet/Performance
Valve Lift With Factory Rocker Arm Ratio0.513 int./0.513 exh.
QuantitySold individually
Exhaust Valve Lift0.513 in (13.03 mm)
Advertised Intake Duration276
Intake Duration At 050 Inch Lift224
Exhaust Duration At 050 Inch Lift230
Advertised Exhaust Duration282
Lifter TypeHydraulic Roller
Part FitmentSemi Universal
Duration At 050 Inch Lift224 int./230 exh.
Valve Springs RequiredYes
Vendor Part Number35-424-8
Package Qty1
Package TypeEA
