Product Discontinued
COMP CAMSPART NUMBER: 249-35-462-8

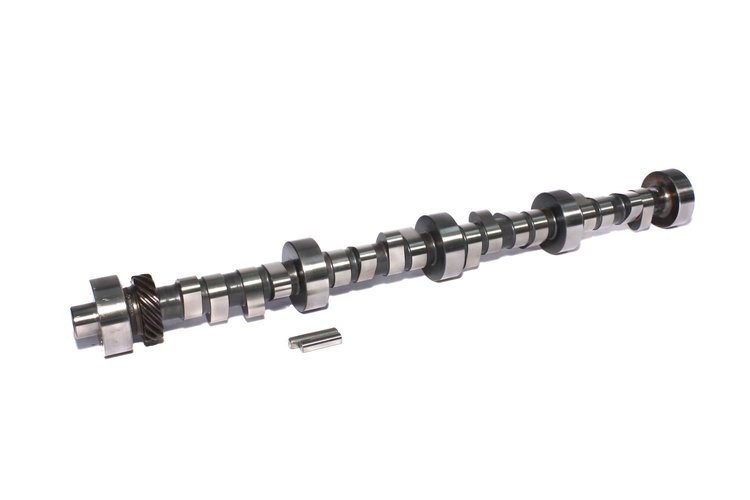

Magnum Hydraulic Roller Camshaft Ford 351W 1969-1995 Retro Fit Lift: .576"/.576"
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.
Ford 351W 1969-1995Retro-Fit Non-EFI
- Magnum Hydraulic Roller Camshaft
- Lift: .576"/.576"
- Duration: 304°/304°
- Lobe Separation Angle: 110°
- RPM Range: 3000-6500
- For engines that DID NOT come from the factory with hydraulic roller cams, NOT FOR E.F.I.
- Cams Are Very Aggressive
- Designed For Performance Oriented Vehicles
- Deliver More Power Than Standard Camshafts
- 1 Year Limited Warranty
Ford, 351W, Windsor, 351 Windsor, 302, 5.0 HO, Explorer, Mutang, Ford Mustang, 408, 347, Fox Body Mustang, Fox Body, 302 HO, Cougar, F100, F150
Street/strip, 4 speed or 3200+ stall and 4.10 or lower gear. Higher compression, good intake and headers.
Ford 351W 1969-1995 Retro Fit
Part TypeCamshaft
BrandCOMP CAMS
Package Height2.75
Package Width2.87
Package Length24.5
Weight7.7 PG
Part CategoryPerformance Parts
Exh. Duration @ .050 In. (Deg)244
Cam StyleHydraulic roller tappet
Grind NumberFW 304RF-HR10
Exh. Duration Advertised (Deg)304
Engine Make/SizeFord 351W
Intake Valve Lift With Factory Rocker Arm Ratio (I0.576
Int. Duration @ .050 In. (Deg)244
Basic Operating Rpm Range3,000-6,500
Intake Valve Lift0.576 in (14.63 mm)
Computer-Controlled CompatibleNo
Int. Duration Advertised (Deg)304
Lobe Separation (Deg)110
Rpm Range3000-6500
Advertised Duration304 int./304 exh.
Exhaust Valve Lift With Factory Rocker Arm Ratio (0.576
UsageStreet/Strip
Valve Lift With Factory Rocker Arm Ratio0.576 int./0.576 exh.
QuantitySold individually
Exhaust Valve Lift0.576 in (14.63 mm)
Advertised Intake Duration304
Intake Duration At 050 Inch Lift244
Exhaust Duration At 050 Inch Lift244
Advertised Exhaust Duration304
Lifter TypeHydraulic Roller
Part FitmentSemi Universal
Duration At 050 Inch Lift244 int./244 exh.
Valve Springs RequiredYes
Vendor Part Number35-462-8
Package Qty1
Package TypeEA
