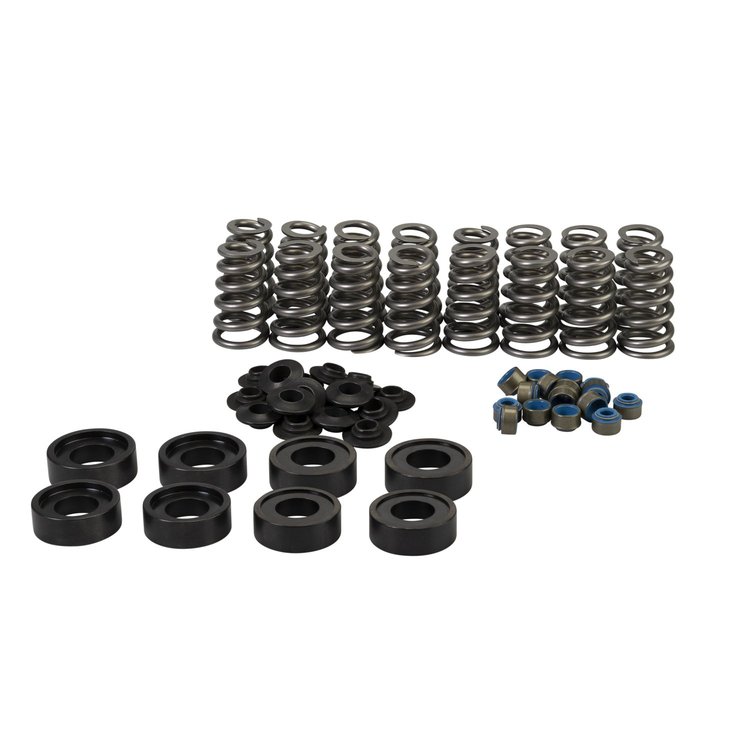

Comp Cams 7230GCS-KIT Conical Valve Spring Kit Includes:

• (16) Round Wire Conical Valve Springs
• (16) Chromoly Steel Retainers
• (16) Triple Groove 8 mm Valve Locks
• (16) Hardened Spring Seats
• (16) Viton Seals

Comp Cams 7230GCS-KIT Conical Valve Spring Kit Features:

• Increases valve train RPM limit while reducing resonance
• Allows for a more aggressive camshaft and longer spring life
• Round wire features a diameter and progressive pitch-driven natural frequency
• Decreases dynamic spring oscillations

Comp Cams 7230GCS-KIT Conical Valve Spring Kit Specs:

• Retainer Material: Chromoly
• Valve Stem Size: .315 in. (8 mm)
• Max Lift: 0.675 in.
• Installed Height: 1.900 in.
• Coil Bind Height: 1.185 in.
• Valve Lock Type: 7-Degree
• Spring Style: Conical
• Spring Seats Type: Non-Integrated
• Spring Rate: 520 lbs. per in.
• Number of Springs Per Valve: 1
• Load at Installed Height: 145 lbs.
• Load at Open Height: 496 lbs.
• Valve Spring Finish: Super Finished
• Spring Seat O.D: 1.650 in.
• Open Height: 1.225 in.
• Machine Work Required: No
