Vehicle Info NeededCOMP CAMSPART NUMBER: 249-CL01-409-8

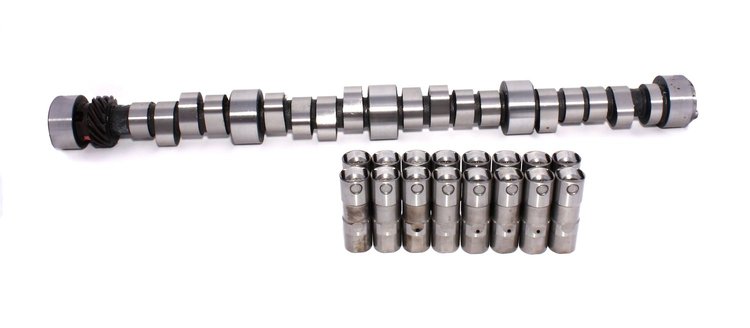

Comp Cams Xtreme Energy Hydraulic Roller Camshafts
$85795
Ships on 10/19/2026
Lowest Price GuaranteeChevrolet Gen VI Big Block 454ci & 502 c.i. 8 CYL. 1996-1999
- Xtreme Energy XR258HR Hydraulic Roller Camshaft & Lifter Kit
- Produces Better Throttle Response
- Produces Top Engine Horsepower
- Delivers Increased Engine Vacuum
- 1 Year Limited Warranty
Chevelle, Camaro, Corvette, Stingray, Silverado, C10, Firebird, Chevrolet, Big Block, Chevy, BBC, 454, 427, 502, 396, Caprice, Malibu, Impala, Nova, Monte Carlo, S10, 572
Great low end torque, good for towing or in RV. Works with stock intake and exhaust.
Lift: .510"/.510"
Duration: 258/264
Lobe Separation Angle: 110°
RPM Range: 1000-5000
Emissions Note:
This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.
CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
Part TypeCamshaft Kit
BrandCOMP CAMS
Package Height3.5
Package Width5.7
Package Length25.2
Weight16.3 PG
Part CategoryPerformance Parts
Exh. Duration @ .050 In. (Deg)212
Cam StyleHydraulic roller tappet
Grind NumberG6 XR252HR-10
Exh. Duration Advertised (Deg)264
Locks IncludedNo
Engine Make/SizeChevy Big Block (396-502)
Retainers IncludedNo
Intake Valve Lift With Factory Rocker Arm Ratio (I0.51
Int. Duration @ .050 In. (Deg)206
Assembly Lubricant IncludedNo
Basic Operating Rpm Range1,000-5,000
Pushrods IncludedNo
Gaskets IncludedNo
Rocker Arms IncludedNo
Intake Valve Lift0.51 in (12.954 mm)
Computer-Controlled CompatibleNo
Int. Duration Advertised (Deg)258
Lobe Separation (Deg)110
Rpm Range1000-5000
Lifter StyleHydraulic roller
Advertised Duration258 int./264 exh.
Exhaust Valve Lift With Factory Rocker Arm Ratio (0.51
Valve Springs IncludedNo
UsageStreet/Performance
Valve Lift With Factory Rocker Arm Ratio0.510 int./0.510 exh.
QuantitySold as a kit
Valve Stem Seals IncludedNo
Exhaust Valve Lift0.51 in (12.954 mm)
Advertised Intake Duration258
Intake Duration At 050 Inch Lift206
Exhaust Duration At 050 Inch Lift212
Timing Chain And Gears IncludedNo
Advertised Exhaust Duration264
Lifter TypeHydraulic Roller
Duration At 050 Inch Lift206 int./212 exh.
Valve Springs RequiredYes
Lifters IncludedYes
Vendor Part NumberCL01-409-8
Package Qty1
Package TypeEA
