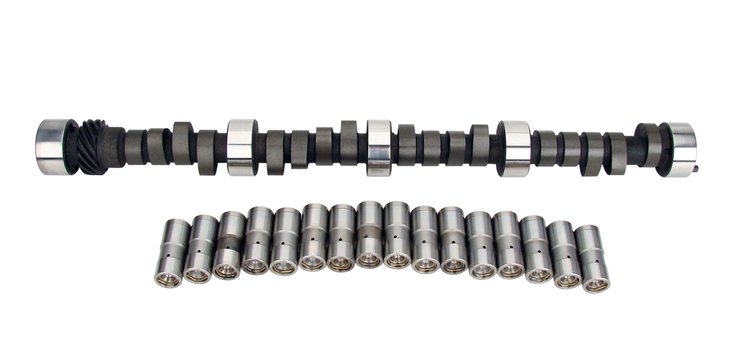

Xtreme Energy 294H Hydraulic Flat Tappet Camshaft & Lifter Kit
Lift: .588''/.593''
Duration: 294°/306°
RPM Range: 2800-7000


*Note: In order to use these camshafts in 1965-66 396/427ci blocks, it is necessary to machine a 3/16' wide x 7/64' deep groove in the rear main journal of the cam to allow oil flow to the top of the engine.

Pro Street/Bracket Race, good intake, headers, gear, 3200+ stall converter.

Operating Range:	2800-7000 RPM
Duration Advertised:	294° Intake / 306° Exhaust
Duration @ .050' Lift:	250° Intake / 256° Exhaust
Valve Lift w/1.7 Rockers:	.588' Intake / .593' Exhaust
Lobe Separation Angle:	110°

Chevelle, Camaro, Corvette, Stingray, Silverado, C10, Firebird, Chevrolet, Big Block, Chevy, BBC, 454, 427, 502, 396, Caprice, Malibu, Impala, Nova, Monte Carlo, S10, 572


Pro Street/bracket, good intake, headers, lower gears, 3200+ stall, 10.5:1+ compression.

Emissions Note:

This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.

CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
