Vehicle Info NeededCOMP CAMSPART NUMBER: 249-CL11-433-8
Comp Cams Xtreme Energy Hydraulic Roller Camshafts
$1,22595
4 left in stock
Ships Today
Lowest Price GuaranteeChevrolet Big Block 396-454 c.i. 8 CYL. 1965-1996

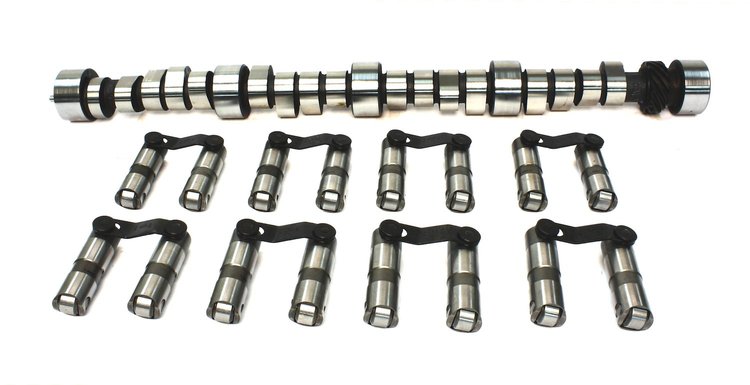

- Xtreme Energy Retro-Fit XR288HR Hydraulic Roller Camshaft & Lifter Kit
- Produces Better Throttle Response
- Produces Top Engine Horsepower
- Delivers Increased Engine Vacuum
- 1 Year Limited Warranty
Chevelle, Camaro, Corvette, Stingray, Silverado, C10, Firebird, Chevrolet, Big Block, Chevy, BBC, 454, 427, 502, 396, Caprice, Malibu, Impala, Nova, Monte Carlo, S10, 572
Street/strip applications, works well in large cubic inch street machine engines with 2500+ stall.
Lift: .521''/.540''
Duration: 288°/294°
Lobe Separation Angle: 110°
RPM Range: 2500-6000
Emissions Note:
This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.
CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
Part TypeCamshaft Kit
BrandCOMP CAMS
Package Height3.2
Package Width6.3
Package Length25.4
Weight17.05 PG
Part CategoryPerformance Parts
Exh. Duration @ .050 In. (Deg)242
Cam StyleHydraulic roller tappet
Grind NumberXR288HR
Exh. Duration Advertised (Deg)294
Locks IncludedNo
Engine Make/SizeChevy Big Block (396-454)
Retainers IncludedNo
Intake Valve Lift With Factory Rocker Arm Ratio (I0.521
Int. Duration @ .050 In. (Deg)236
Assembly Lubricant IncludedNo
Basic Operating Rpm Range2,500-6,000
Pushrods IncludedNo
Gaskets IncludedNo
Rocker Arms IncludedNo
Intake Valve Lift0.52 in (13.208 mm)
Computer-Controlled CompatibleNo
Int. Duration Advertised (Deg)288
Lobe Separation (Deg)110
Rpm Range2500-6000
Lifter StyleHydraulic roller
Advertised Duration288 int./294 exh.
Exhaust Valve Lift With Factory Rocker Arm Ratio (0.54
Valve Springs IncludedNo
UsageStreet/Performance
Valve Lift With Factory Rocker Arm Ratio0.521 int./0.540 exh.
QuantitySold as a kit
Valve Stem Seals IncludedNo
Exhaust Valve Lift0.54 in (13.716 mm)
Advertised Intake Duration288
Intake Duration At 050 Inch Lift236
Exhaust Duration At 050 Inch Lift242
Timing Chain And Gears IncludedNo
Advertised Exhaust Duration294
Lifter TypeHydraulic Roller
Part FitmentSemi Universal
Duration At 050 Inch Lift236 int./242 exh.
Valve Springs RequiredYes
Lifters IncludedYes
Vendor Part NumberCL11-433-8
Package Qty1
Package TypeEA
