Vehicle Info NeededCOMP CAMSPART NUMBER: 249-CL11-445-8

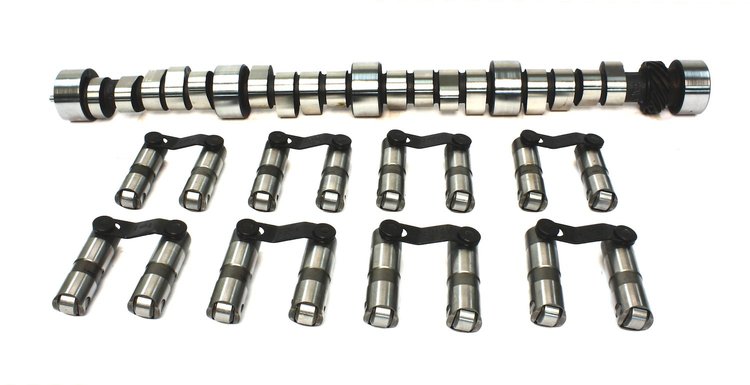

Xtreme Marine XM270HR Retro-Fit Hydraulic Roller Camshaft & Lifter Kit Lift .510"/.510" Duration 270°/276° RPM Range 1600-5400
$1,22595
Ships on 09/15/2026
Lowest Price GuaranteeChevrolet 396-454 c.i. 8 CYL. 1965-1996 Retro-Fit
- Xtreme Marine XM270HR Retro-Fit Hydraulic Roller Camshaft & Lifter Kit
- Xtreme Marine Camshaft
- 1 Year Limited Warranty
Chevelle, Camaro, Corvette, Stingray, Silverado, C10, Firebird, Chevrolet, Big Block, Chevy, BBC, 454, 427, 502, 396, Caprice, Malibu, Impala, Nova, Monte Carlo, S10, 572
Good for inboard/outboard pleasure boats, has good idle.
Lift .510"/.510"
Duration 270°/276°
RPM Range 1600-5400
Emissions Note:
This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.
CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
Part TypeCamshaft Kit
BrandCOMP CAMS
Package Height3.0
Package Width8.5
Package Length26.5
Weight17.5 PG
Part CategoryPerformance Parts
Exh. Duration @ .050 In. (Deg)224
Cam StyleHydraulic roller tappet
Grind NumberXM270HR
Exh. Duration Advertised (Deg)276
Locks IncludedNo
Engine Make/SizeChevy Big Block (396-454)
Retainers IncludedNo
Intake Valve Lift With Factory Rocker Arm Ratio (I0.51
Int. Duration @ .050 In. (Deg)218
Assembly Lubricant IncludedNo
Basic Operating Rpm Range1,600-5,400
Pushrods IncludedNo
Gaskets IncludedNo
Rocker Arms IncludedNo
Intake Valve Lift0.51 in (12.954 mm)
Computer-Controlled CompatibleNo
Int. Duration Advertised (Deg)270
Lobe Separation (Deg)112
Rpm Range1600-5400
Lifter StyleHydraulic roller
Advertised Duration270 int./278 exh.
Exhaust Valve Lift With Factory Rocker Arm Ratio (0.51
Valve Springs IncludedNo
UsageOEM
Valve Lift With Factory Rocker Arm Ratio0.510 int./0.510 exh.
QuantitySold as a kit
Valve Stem Seals IncludedNo
Exhaust Valve Lift0.51 in (12.954 mm)
Advertised Intake Duration270
Intake Duration At 050 Inch Lift218
Exhaust Duration At 050 Inch Lift224
Timing Chain And Gears IncludedNo
Advertised Exhaust Duration278
Lifter TypeHydraulic Roller
Part FitmentSemi Universal
Duration At 050 Inch Lift218 int./224 exh.
Valve Springs RequiredYes
Lifters IncludedYes
Vendor Part NumberCL11-445-8
Package Qty1
Package TypeEA
