Magnum 292H Hydraulic Flat Tappet Camshaft & Lifter Kit Lift: .501" /.501" Duration: 292°292° RPM Range: 2500-6500
InfoVehicle Info Needed
COMP CAMSPART NUMBER: 249-CL12-213-3

Magnum 292H Hydraulic Flat Tappet Camshaft & Lifter Kit Lift: .501" /.501" Duration: 292°292° RPM Range: 2500-6500

$38695
4 left in stock
ShippingShips Tomorrow
Lowest PriceLowest Price Guarantee

Items You Need

Billet Timing Set Torrington Roller Bearing

JEGS

Billet Timing Set Torrington Roller Bearing

Part Number : 555-20410
$9999$109.99
You Save$10.00
Billet Timing Set Bronze Thrust Washer

JEGS

Billet Timing Set Bronze Thrust Washer

Part Number : 555-20411
$9999$109.99
You Save$10.00
Roller Timing Chain Set for 1955-1992 Small Block Chevy 265-400 ci

JEGS

Roller Timing Chain Set for 1955-1992 Small Block Chevy 265-400 ci

Part Number : 555-20412
$5999$65.99
You Save$6.00
Engine Assembly Lube [4 oz. Bottle]

JEGS

Engine Assembly Lube [4 oz. Bottle]

Part Number : 555-28000
$599$6.99
You Save$1.00

Chevy 262-400ci Small Block 1955-98

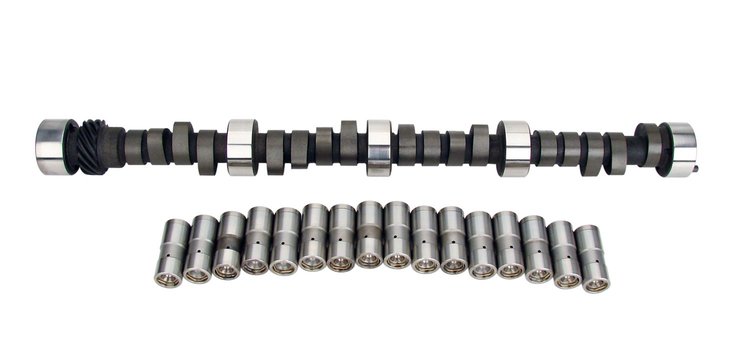

    Magnum 292H Hydraulic Flat Tappet Camshaft & Lifter Kit
    Lift: .501''/.501"
    Duration: 292°292°
    RPM Range: 2500-6500


    *Note: In order to use these camshafts in 1955-57 265ci blocks, it is necessary to machine a small groove in the rear main journal of the cam to allow oil flow to the top of the engine.

    Stree/strip special, 3000 stall converter, headers, gears, 9.5:1 compression. Very rough idle.

    Operating Range:2500-6500 RPM
    Duration Advertised:292° Intake / 292° Exhaust
    Duration @ .050' Lift:244° Intake / 244° Exhaust
    Valve Lift w/1.5 Rockers:.501' Intake / .501' Exhaust
    Lobe Separation Angle:110°

    265, 283, 307, 302, 305, 327, 350, 383, 400, 427, L46, L48, L65, LM1, LT-1, L82, L81, LS9, L83, L98, L05, LG3, LG4, LT1, LT4, Camaro, Corvette, Chevelle, Stingray, Silverado, C10, Firebird, Chevrolet, Chevy, Small Block Chevy, Caprice, Malibu, Impala, Nova, 355, GEN1, Monte Carlo, S10


    Great for street machines. Needs 2500+stall, headers and gears. Rough idle.

Emissions Note:

This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.

CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART

Part TypeCamshaft Kit
BrandCOMP CAMS
Package Height3.1
Package Width5.5
Package Length25.3
Weight13.35 PG
Part CategoryPerformance Parts
Exh. Duration @ .050 In. (Deg)244
Cam StyleHydraulic flat tappet
Grind NumberCS 292H-10
Exh. Duration Advertised (Deg)292
Locks IncludedNo
Engine Make/SizeChevy Small Block (262-400)
Retainers IncludedNo
Intake Valve Lift With Factory Rocker Arm Ratio (I0.501
Int. Duration @ .050 In. (Deg)244
Assembly Lubricant IncludedYes
Basic Operating Rpm Range2,500-6,500
Pushrods IncludedNo
Gaskets IncludedNo
Rocker Arms IncludedNo
Intake Valve Lift0.501 in (12.725 mm)
Computer-Controlled CompatibleNo
Int. Duration Advertised (Deg)292
Lobe Separation (Deg)110
Rpm Range2500-6500
Lifter StyleHydraulic flat tappet
Advertised Duration292 int./292 exh.
Exhaust Valve Lift With Factory Rocker Arm Ratio (0.501
Valve Springs IncludedNo
UsageStreet/Performance
Valve Lift With Factory Rocker Arm Ratio0.501 int./0.501 exh.
QuantitySold as a kit
Valve Stem Seals IncludedNo
Exhaust Valve Lift0.501 in (12.725 mm)
Advertised Intake Duration292
Intake Duration At 050 Inch Lift244
Exhaust Duration At 050 Inch Lift244
Timing Chain And Gears IncludedNo
Advertised Exhaust Duration292
Lifter TypeHydraulic Flat Tappet
Duration At 050 Inch Lift244 int./244 exh.
Valve Springs RequiredYes
Lifters IncludedYes
Vendor Part NumberCL12-213-3
Package Qty1
Package TypeEA
