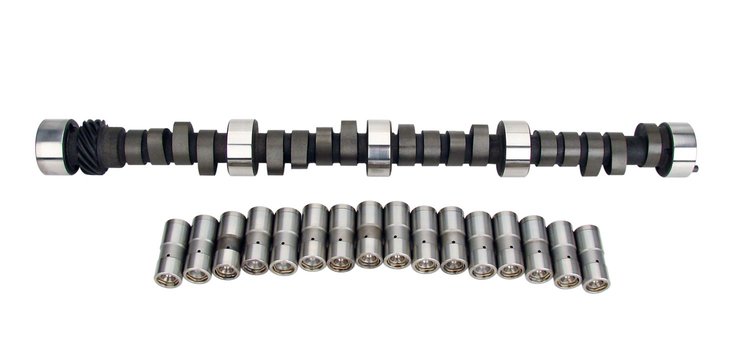

Magnum 305H Hydraulic Flat Tappet Camshaft & Lifter Kit
Lift: .525''/.525"
Duration: 305°/305°
RPM Range: 3000-7000


*Note: In order to use these camshafts in 1955-57 265ci blocks, it is necessary to machine a small groove in the rear main journal of the cam to allow oil flow to the top of the engine.

Pro Street/Bracket Race, limited street driving. Intake, gears, 3500+ stall. Racy Idle. 10.5:1 compression ratio.

Operating Range:	3000-7000 RPM
Duration Advertised:	305° Intake / 305° Exhaust
Duration @ .050' Lift:	253° Intake / 253° Exhaust
Valve Lift w/1.5 Rockers:	.525' Intake / .525' Exhaust
Lobe Separation Angle:	110°

265, 283, 307, 302, 305, 327, 350, 383, 400, 427, L46, L48, L65, LM1, LT-1, L82, L81, LS9, L83, L98, L05, LG3, LG4, LT1, LT4, Camaro, Corvette, Chevelle, Stingray, Silverado, C10, Firebird, Chevrolet, Chevy, Small Block Chevy, Caprice, Malibu, Impala, Nova, 355, GEN1, Monte Carlo, S10


Pro Street/bracket, limited street driving. Intake, gears, 3500+ stall. Racy idle. 10.5:1 compression.

Emissions Note:

This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.

CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
