Vehicle Info NeededCOMP CAMSPART NUMBER: 249-CL35-239-3

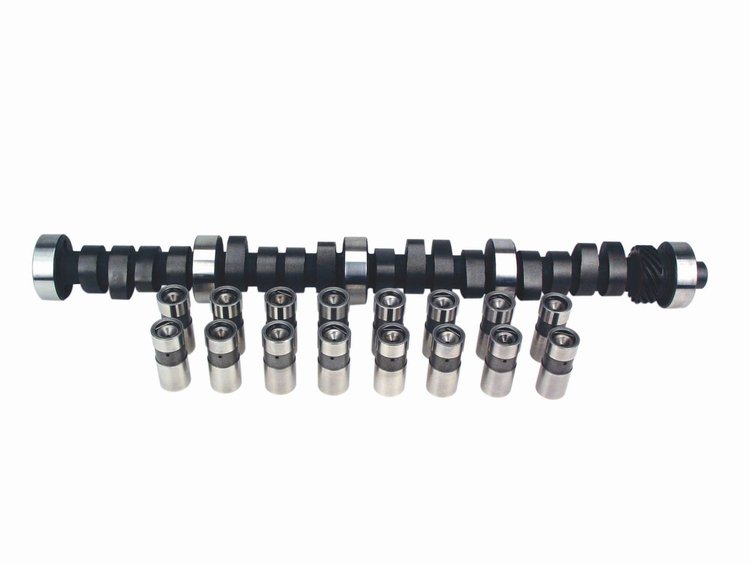

'Xtreme 4x4' Hydraulic Flat Tappet Camshaft
$38695
Ships on 09/09/2026
Lowest Price GuaranteeFord 351W 8 cyl. 1969-1995
- Xtreme 4x4 X4262H Hydraulic Flat Tappet Camshaft & Lifter Kit
Lift: .493''/.512''
Duration: 262°/270°
Lobe Separation Angle: 111°
RPM Range: 1400-5500
*Note: Firing Order 1-3-7-2-6-5-4-8
Good torque for 4x4 with aftermarket intake and headers. Excellent mid-range, works with lower gears.
| Operating Range: | 1600-5800 RPM |
| Duration Advertised: | 270° Intake / 278° Exhaust |
| Duration @ .050' Lift: | 226° Intake / 234° Exhaust |
| Valve Lift w/1.6 Rockers: | .512' Intake / .531' Exhaust |
| Lobe Separation Angle: | 111° |
Ford, 351W, Windsor, 351 Windsor, 302, 5.0 HO, Explorer, Mutang, Ford Mustang, 408, 347, Fox Body Mustang, Fox Body, 302 HO, Cougar, F100, F150
Good torque for 4x4 with aftermarket intake and headers. Excellent mid-range, works with lower gears.
Emissions Note:
This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.
CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
Part TypeCamshaft Kit
BrandCOMP CAMS
Package Height3.2
Package Width5.6
Package Length25.2
Weight13.72 PG
Part CategoryPerformance Parts
Exh. Duration @ .050 In. (Deg)226
Cam StyleHydraulic flat tappet
Grind NumberFW X4 262H-11
Exh. Duration Advertised (Deg)270
Locks IncludedNo
Engine Make/SizeFord 351W
Retainers IncludedNo
Intake Valve Lift With Factory Rocker Arm Ratio (I0.493
Int. Duration @ .050 In. (Deg)218
Assembly Lubricant IncludedYes
Basic Operating Rpm Range1,400-5,500
Pushrods IncludedNo
Gaskets IncludedNo
Rocker Arms IncludedNo
Intake Valve Lift0.493 in (12.522 mm)
Computer-Controlled CompatibleNo
Int. Duration Advertised (Deg)262
Lobe Separation (Deg)111
Rpm Range1400-5500
Lifter StyleHydraulic flat tappet
Advertised Duration262 int./270 exh.
Exhaust Valve Lift With Factory Rocker Arm Ratio (0.512
Valve Springs IncludedNo
UsageStreet/Performance
Valve Lift With Factory Rocker Arm Ratio0.493 int./0.512 exh.
QuantitySold as a kit
Valve Stem Seals IncludedNo
Exhaust Valve Lift0.512 in (13.005 mm)
Advertised Intake Duration262
Intake Duration At 050 Inch Lift218
Exhaust Duration At 050 Inch Lift226
Timing Chain And Gears IncludedNo
Advertised Exhaust Duration270
Lifter TypeHydraulic Flat Tappet
Duration At 050 Inch Lift218 int./226 exh.
Valve Springs RequiredYes
Lifters IncludedYes
Vendor Part NumberCL35-239-3
Package Qty1
Package TypeEA
