Magnum Hydraulic Roller Camshaft and Lifter Kit Ford 5.0L 1985-95 Factory Roller Lift: .560"/.598"
InfoVehicle Info Needed
COMP CAMSPART NUMBER: 249-CL35-314-8

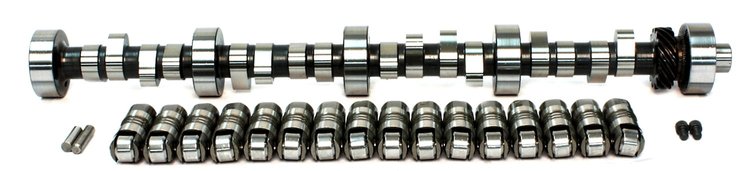

Magnum Hydraulic Roller Camshaft and Lifter Kit Ford 5.0L 1985-95 Factory Roller Lift: .560"/.598"

$82595
ShippingShips on 09/16/2026
Lowest PriceLowest Price Guarantee

Ford 5.0L 1985-95 Factory Roller
    Magnum Hydraulic Roller Camshaft and Lifter Kit
    Ford 5.0L 1985-95 Factory Roller
  • Lift: .560"/.598"
  • Duration: 280°/286°
  • Lobe Separation Angle: 112°
  • RPM Range: 2200-6200

  • Cams Are Very Aggressive
  • Designed For Performance Oriented Vehicles
  • Deliver More Power Than Standard Camshafts
  • 1 Year Limited Warranty

    Ford; SBF; Mustang; Windsor; Fairlane; Meteor; Mercury; GT; 22; 260; Sunbeam; Tiger; 289; 302; 351; 289; HiPo; K-Code; GT-350; Shelby; Boss; 5.0; 308; Windsor; Torino; Cougar; F-150; Squire; Thunderbird; LTD; Galaxie; Grand Marquis


    Needs injectors, larger mass air and throttle body, intake, heads, headers, gears and 2500+ stall or 5 speed.

Emissions Note:

This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.

CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART

Part TypeCamshaft Kit
BrandCOMP CAMS
Package Height3.2
Package Width5.8
Package Length25.3
Weight15.3 PG
Part CategoryPerformance Parts
UsageStreet/Performance
Intake Valve Lift0.56 in (14.224 mm)
Int. Duration Advertised (Deg)280
Exh. Duration @ .050 In. (Deg)230
Rpm Range2200-6200
Lifter TypeHydraulic Roller
Exh. Duration Advertised (Deg)286
Engine Make/SizeFord 260-302
Int. Duration @ .050 In. (Deg)224
Exhaust Valve Lift0.598 in (15.189 mm)
Vendor Part NumberCL35-314-8
Package Qty1
Package TypeEA
