Comp Cams Xtreme Energy Hydraulic Roller Camshafts

Vehicle Info Needed

COMP CAMSPART NUMBER: 249-CL35-514-8

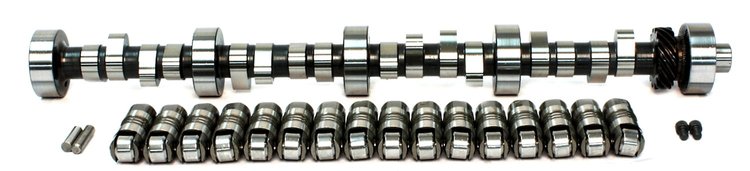

Comp Cams Xtreme Energy Hydraulic Roller Camshafts

Name: Comp Cams Xtreme Energy Hydraulic Roller Camshafts
Brand: COMP CAMS
SKU: 249-CL35-514-8
Price: 911.95 USD
Availability: InStock

^$911⁹⁵

Ships on 09/09/2026

Lowest Price Guarantee

Ford 5.0L 8 cyl. 1982-2002

Computer Controlled (EFI) for engines originally equipped with hydraulic roller camshaft.

Xtreme Energy XE266HR Hydraulic Roller Camshaft & Lifter Kit
Lift: .544''/.555''
Duration: 266°/274°
Lobe Separation Angle: 112°
RPM Range: 1600-5600

Produces Better Throttle Response
Produces Top Engine Horsepower
Delivers Increased Engine Vacuum
1 Year Limited Warranty
Ford; SBF; Mustang; Windsor; Fairlane; Meteor; Mercury; GT; 22; 260; Sunbeam; Tiger; 289; 302; 351; 289; HiPo; K-Code; GT-350; Shelby; Boss; 5.0; 308; Windsor; Torino; Cougar; F-150; Squire; Thunderbird; LTD; Galaxie; Grand Marquis

Mild modifications, 3.27-3.73 gears, mass air, larger throttle body.

Emissions Note:

This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.

CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART

Part TypeCamshaft Kit
BrandCOMP CAMS
Package Height3.2
Package Width5.4
Package Length25.2
Weight15.0 PG
Part CategoryPerformance Parts
Exh. Duration @ .050 In. (Deg)224
Cam StyleHydraulic roller tappet
Grind NumberXE266HR
Exh. Duration Advertised (Deg)274
Locks IncludedNo
Engine Make/SizeFord 260-302
Retainers IncludedNo
Intake Valve Lift With Factory Rocker Arm Ratio (I0.544
Int. Duration @ .050 In. (Deg)216
Assembly Lubricant IncludedNo
Basic Operating Rpm Range1,600-5,600
Pushrods IncludedNo
Gaskets IncludedNo
Rocker Arms IncludedNo
Intake Valve Lift0.544 in (13.818 mm)
Computer-Controlled CompatibleYes
Int. Duration Advertised (Deg)266
Lobe Separation (Deg)112
Rpm Range1500-5500
Lifter StyleHydraulic roller
Advertised Duration266 int./274 exh.
Exhaust Valve Lift With Factory Rocker Arm Ratio (0.555
Valve Springs IncludedNo
UsageStreet/Performance
Valve Lift With Factory Rocker Arm Ratio0.544 int./0.555 exh.
QuantitySold as a kit
Valve Stem Seals IncludedNo
Exhaust Valve Lift0.555 in (14.097 mm)
Advertised Intake Duration266
Intake Duration At 050 Inch Lift216
Exhaust Duration At 050 Inch Lift224
Timing Chain And Gears IncludedNo
Advertised Exhaust Duration274
Lifter TypeHydraulic Roller
Part FitmentSemi Universal
Duration At 050 Inch Lift216 int./224 exh.
Valve Springs RequiredYes
Lifters IncludedYes
Vendor Part NumberCL35-514-8
Package Qty1
Package TypeEA
