Vehicle Info NeededCOMPETITION ENGINEERINGPART NUMBER: 247-6021

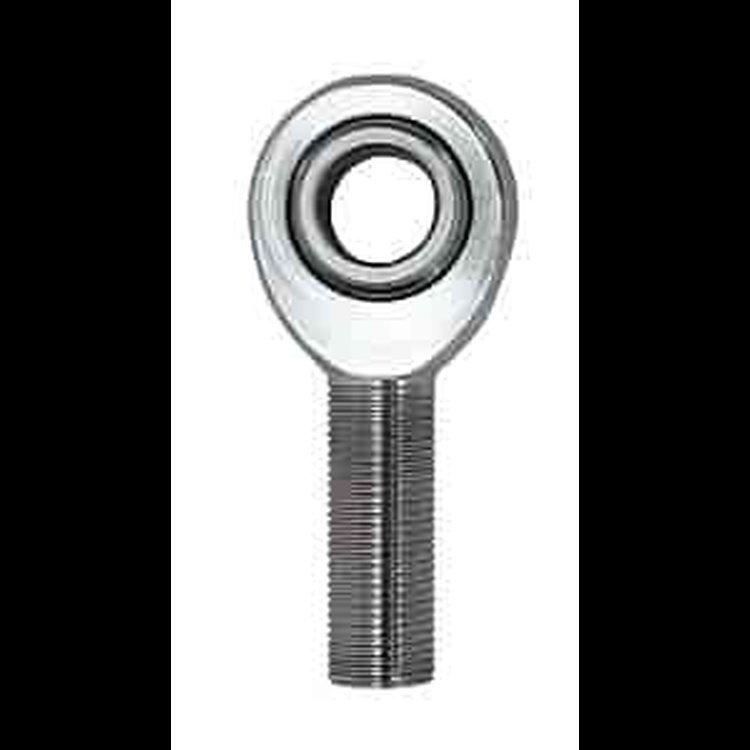

Magnum Series Chrome Moly Rod End Right-Hand Thread Thread: 5/8"
$2299
5 left in stock
Ships on Sep 08, 2026
Lowest Price Guarantee
Magnum Series Chrome Moly Rod Ends
- Magnum Series Chrome Moly Rod End
- Thread: 5/8"
- Shank: 5/8"
- Hole: 5/8"
- Load Capacity: 14,480 lbs
Magnum Series; Replacement Rod Ends; Chrome Moly; 5/8 in. R/H Thread; 5/8 in. Shank x 5/8 in. Hole; 14480 lbs. Static Radical Load; Incl.1 Jam Nut; 5/8" Right Hand ThreadThe Best Choice for Ladder Bar and 4-Link Applications• Self-lubricating, self-sealing Rod Ends have increased thickness for greater tensile strength• Perfect for demanding Motorsports applications• When loaded, creates metal to metal contact for unsurpassed strength, yet when unloaded, the Rilsan® AZM30 injected liner will not rattle or squeak like standard two or three piece rod ends• Jam nut included• 5/8" x 5/8" Shank & Hole• 14,480 lb Load Capacity
Right-Hand Thread
Great Choice for Ladder Bar and 4-Link Applications!
Competition Engineering's Magnum Series Chrome Moly Rod Ends are perfect for demanding motorsports applications. These rod ends use increased cross-sectional thickness for greater tensile strength. When loaded, this unique design creates metal-to-metal contact for unsurpassed strength yet, when unloaded, the PTFE/Kevlar-injected liner will not rattle or squeak like standard multi-piece rod ends. Sold individually.
Show More
Features:
- Self-lubricating
- Self-sealing
- Jam Nut Included
Part TypeRod End
Product LineCompetition Engineering Magnum Series Chrome Moly Rod Ends
BrandCOMPETITION ENGINEERING
Package Height1.3
Package Width3.4
Package Length7.4
Weight0.5 PG
Part CategoryPerformance Parts
Rod End AttachmentMale Threads
Rod End Head Bore Size0.625 in (15.9 mm)
Rod End Thread Size (In.)5/8-18 RH
QuantitySold individually
Jam Nut IncludedYes
Grease FittingNo
Rod End Construction3-piece
Heat-TreatedYes
Rod End Static Load Capacity (Lbs.)14,480
Rod End MaterialChromoly
Rod End StylePTFE lined
Part FitmentUniversal
Vendor Part NumberC6021
Package Qty1
Package TypeEA
