Vehicle Info NeededQA1PART NUMBER: 122-XMR10

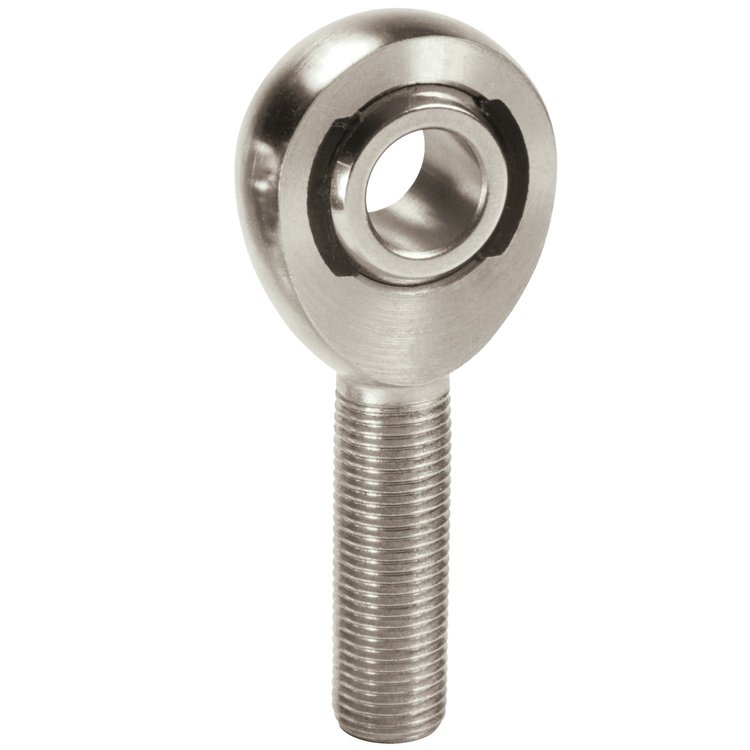

XM Chromoly Steel Series Rod End Hole I.D.: .6250"
$2599
5 left in stock
Ships Today
Lowest Price GuaranteeXM Chromoly Steel Series Rod EndRight Hand Thread
- XM Chromoly Steel Series Rod End
- Hole I.D.: .6250"
- RH Thread: 5/8"-18
ROD END (X) ENDURA ALLOY HT , M-R 5/8-5/8
Part TypeRod End
BrandQA1
Package Height0.7
Package Width1.1
Package Length3.2
Weight0.4 PG
Part CategoryPerformance Parts
Rod End AttachmentMale Threads
Rod End FinishZinc plated
Thread Length1.625 in (41.3 mm)
Rod End Head Bore Size0.625 in (15.9 mm)
Rod End Thread Size (In.)5/8-18 RH
QuantitySold individually
Rod End Centerline Length2.625 in (66.7 mm)
Jam Nut IncludedNo
Rod End Misalign Angle (Deg)16 degrees
Rod End Head Diameter1.5 in (38.1 mm)
Rod End Ball Width0.75 in (19.1 mm)
Grease FittingNo
Rod End Construction2-piece
Heat-TreatedYes
Rod End Head Width0.75 in (19.1 mm)
Rod End Static Load Capacity (Lbs.)17,955
Rod End MaterialChromoly
Rod End StylePTFE/KEVLAR« lined
Part FitmentUniversal
Vendor Part NumberXMR10
Package Qty1
Package TypeEA
No Questions
No Reviews
