707475-4X Front Dana 60 Ring & Pinion Kit Fits Select 1999-2001 Ford F250, F350, F450, F550 Super Duty/ XL, 4WD, 4.88 Ratio
Product Discontinued
DANA SPICERPART NUMBER: 094-707475-4X

707475-4X Front Dana 60 Ring & Pinion Kit Fits Select 1999-2001 Ford F250, F350, F450, F550 Super Duty/ XL, 4WD, 4.88 Ratio

Currently Unavailable

This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

Premium - Dana 60
Front Dana 60 Ring & Pinion Kit
  • 1999-2000 Ford F250, F350 Super Duty, Super Duty XL
  • 2000-2001 Ford F450, F550 Super Duty, Super Duty XL
  • 4WD Models
  • See Fitment Tab for All Applications
  • 4.88 Ratio
  • Reverse Rotation
  • Sold as a Kit

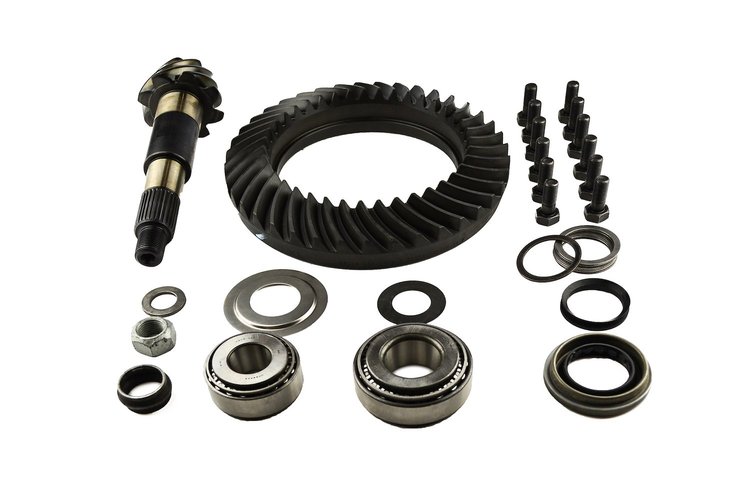

    Spicer 707475-4X Front Dana 60 Ring & Pinion Kit Includes:

    • (1) 4.88 Ratio Reverse Rotation Ring & Pinon Gear Set
    • (1) Inner Pinion Bearing and Race
    • (1) Outer Pinion Bearing & Race
    • (1) Crush Sleeve
    • (1) Ring Gear Bolt Kit - Set of 12
    • (1) Pinion Nut and Shim Kit
    • (1) Pinion Seal

    Spicer 707475-4X Front Dana 60 Ring & Pinion Kit Features:

    • All Spicer ring gear and pinion sets are designed and tested to meet original equipment specifications
    • Lapped to reduce noise and heat. The lubrication process allows for no break-in period.
    • Precision heat-treating and shot-peening deliver consistent quality| enhanced life by reducing residual stress, doubling the fatigue life of the gear
    • High-grade steel for maximum durability
    • Replaces Ford OE Part Number F81Z-3222-DA
    • Part TypeRing and Pinion
    BrandDANA SPICER
    Package Height4.4
    Package Width13.4
    Package Length15.3
    Weight25.25 PG
    Part CategoryReplacement Parts
    Ring Gear RotationReverse
    Pinion Gear Teeth8
    PositionFront
    QuantitySold as a kit
    Differential Carrier Break4.56 and Higher
    Pinion Spline Count29
    Ring Gear Diameter9.75 in (247.7 mm)
    Ring And Pinion Ratio4.88
    Pinion Shaft Diameter1.625 in (41.275 mm)
    Installation Kit IncludedYes
    Axle TypeDana 60
    Ring Gear Bolts12
    Cover Bolts10
    Ring Gear Teeth39
    Part FitmentSemi Universal
    Grade TypeOEM Performance
    Vendor Part Number707475-4X
    Package Qty1
    Package TypeEA
