Metallic Ceramic Coated Headers 1967-1994 Small Block Chevy 265-400 1-5/8" Tube Diameter
InfoVehicle Info Needed
DOUG'S HEADERSPART NUMBER: 776-D305

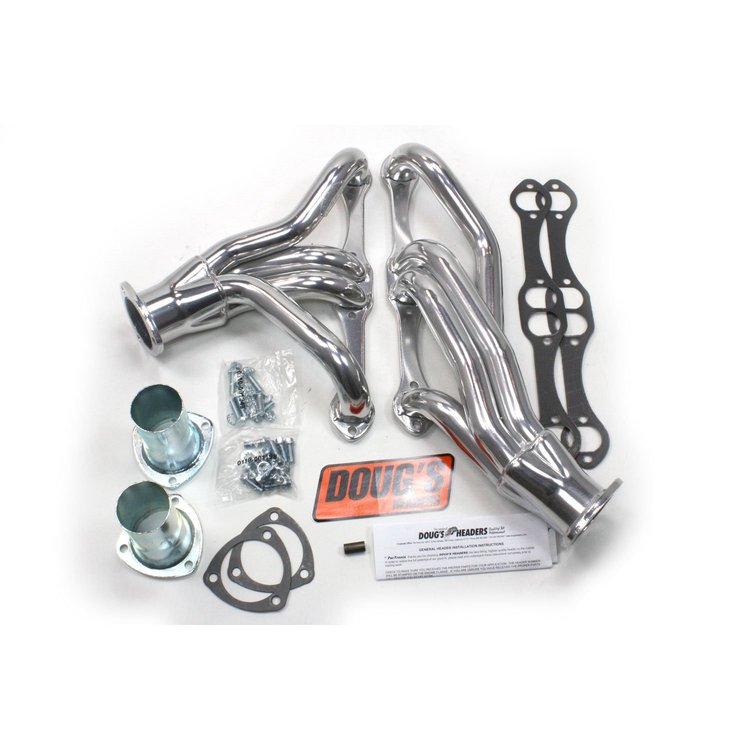

Metallic Ceramic Coated Headers 1967-1994 Small Block Chevy 265-400 1-5/8" Tube Diameter

$80093$889.92You Save$88.99
Lowest PriceLowest Price Guarantee

Small Block Chevy - 1-5/8'' Tube Diameter
Metallic Ceramic Coated Headers
  • 1967-1994 Small Block Chevy 265-400
  • 1-5/8'' Tube Diameter
  • 3'' Collector
  • Oval Port Shape

    Fits:

    • 1967-1981 Camaro
    • 1968-1977 Chevelle
    • 1968-1979 Chevy II, Nova
    • 1968-1977 El Camino
    • 1970-1977 Monte Carlo
    • 1971-1994 Passenger Car, Wagon

    Notes:

    • Shorty design for maximum ground clearance.
    • Fits D-Port cylinder heads including ZZ4 crate engines.
    • Will not fit Saginaw close ratio with 825 power steering box.
    • Does not fit 67-69 Camaro with A/C.
    • Will fit most angle plug heads including factoy Chevrolet 'Bow-Tie' heads.
    • Requires removal or modification of locking steering columns if equipped.
    • Installation requires left side A/C bracket part number 776-H7608. 1979 and later vehicles with short compressors can use the stock bracket.
    • Must use non-shell style motor mounts

    Emission Code:

    • The product accompanying this document is legal only for off-highway use (except in California or states that have adopted California emission standards), racing use or for use on pre-emission-controlled motor vehicles/motor vehicle engines (pre-1974 domestic vehicles certified to California standards, pre-1974 domestic vehicles certified to federal standards and all pre-1974 foreign vehicles), per the manufacturer's application guide.
     AutomaticManual
    A/CP/BP/SColumnFloorColumnFloor
    YYYNNNY

    Emissions Note:

    This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.

    CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART

  • Every Doug's Header is Tuned with the Proper Tube Size & Length to Efficiently Remove Exhaust Gasses from Each Cylinder

    Headers feature 3/8'' flanges and 16-gauge tubing on passenger car applications. They include all necessary mounting hardware, collector reducers or connection pipes, premium gaskets and detailed instructions. Headers are available in either a Metallic Ceramic Thermal Barrier Coating or a uncoated raw finish. The Metallic Ceramic Thermal Barrier Coating will withstand up to 1400 degree temperatures! This coating is polished which increases corrosion resistance over 60%!

    Show More

    Features:

    • Thick Flanges Prevent Warping
    • Stitch Welded Ports for Added Strength
    • Machined Sealing Bead Eliminates Leaks
    • Heavy Gauge Tubing for Longer Life
    • Precision-Formed Collectors Reduce Back Pressure
    • CNC Mandrel-Bent Tubing Provides Accurate Fit & Better Flow

      See More Info for Applications Listing

    Part TypeHeader
    Product LineDoug's Headers for GM Passenger Cars
    BrandDOUG'S HEADERS
    Package Height11.4
    Package Width20.4
    Package Length25.4
    Weight23.75 PG
    Part CategoryPerformance Parts
    Steering SystemVarious - Application Specific
    PositionN/A
    Brake SystemVarious - Application Specific
    Part FitmentSemi Universal
    Vendor Part NumberD305
    Package Qty1
    Package TypeEA
