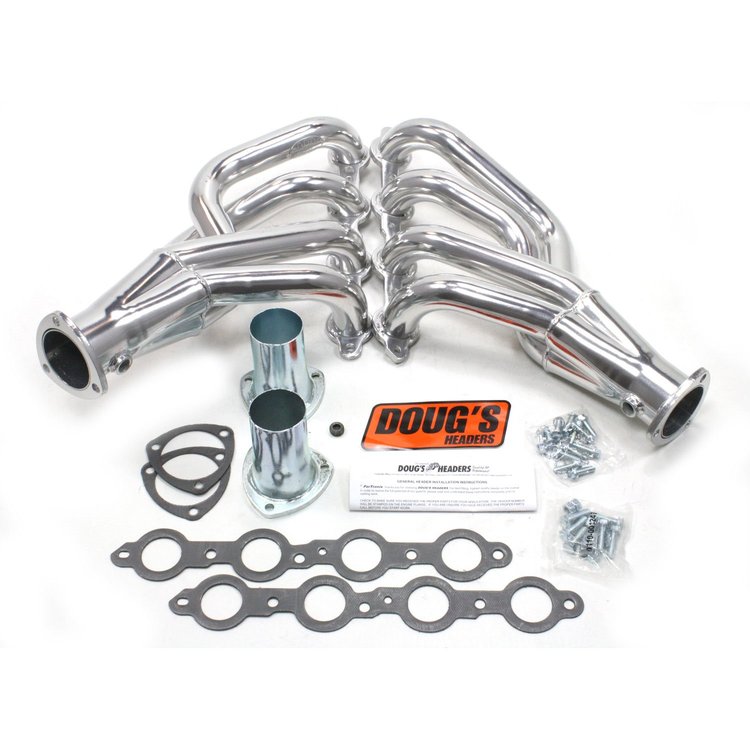

Metallic Ceramic Coated Headers 1955-57 GM LS1/LS6 1-7/8" Tube Diameter

Name: Metallic Ceramic Coated Headers 1955-57 GM LS1/LS6 1-7/8" Tube Diameter
Brand: DOUG'S HEADERS
SKU: 776-D311
Price: 754.88 USD
Availability: InStock

^$754⁸⁸$838.75You Save$83.87

Ships on 09/10/2026

Lowest Price Guarantee

GM LS1/LS6 - 1-7/8'' Tube Diameter

Metallic Ceramic Coated Headers

1955-57 GM LS1/LS6

1-7/8'' Tube Diameter

3'' Collector

SAP Port Shape

Fits:

1955-57 Passenger Car, Wagon

Notes:

Shorty design for maximum ground clearance.
O2 bungs are welded on both collectors.
Requires use of Street & Performance (or equivalent) billet aluminum adaptors, along with D & P Chassis (or equilvalent) Chevy frame stands.
LS1/LS6 engines require the use of a LS1 oil pan for proper header fit.
Will fit with 605 power steering box.

Emission Code:

The product accompanying this document is legal only for off-highway use(except in California or states that have adopted California emission standards),racing use or for use on pre-emission-controlled motor vehicles/motor vehicleengines (pre-1974 domestic vehicles certified to California standards, pre-1974domestic vehicles certified to federal standards and all pre-1974 foreignvehicles), per the manufacturer's application guide.

			Automatic		Manual
A/C	P/B	P/S	Column	Floor	Column	Floor
Y	Y	Y	Y	Y	N	Y

Emissions Note:

This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.

CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART

Every Doug's Header is Tuned with the Proper Tube Size & Length to Efficiently Remove Exhaust Gasses from Each Cylinder

Headers feature 3/8'' flanges and 16-gauge tubing on passenger car applications. They include all necessary mounting hardware, collector reducers or connection pipes, premium gaskets and detailed instructions. Headers are available in either a Metallic Ceramic Thermal Barrier Coating or a uncoated raw finish. The Metallic Ceramic Thermal Barrier Coating will withstand up to 1400 degree temperatures! This coating is polished which increases corrosion resistance over 60%!

Features:

Thick Flanges Prevent Warping
Stitch Welded Ports for Added Strength
Machined Sealing Bead Eliminates Leaks
Heavy Gauge Tubing for Longer Life
Precision-Formed Collectors Reduce Back Pressure
CNC Mandrel-Bent Tubing Provides Accurate Fit & Better Flow
See More Info for Applications Listing

Part TypeHeader

Product LineDoug's Headers for GM Passenger Cars

BrandDOUG'S HEADERS

Package Height10.9

Package Width20.7

Package Length25.7

Weight26.0 PG

Part CategoryPerformance Parts

Steering SystemPower

PositionN/A

Brake SystemPower

Part FitmentSemi Universal
