DOUG'S HEADERSPART NUMBER: 776-D567-SS

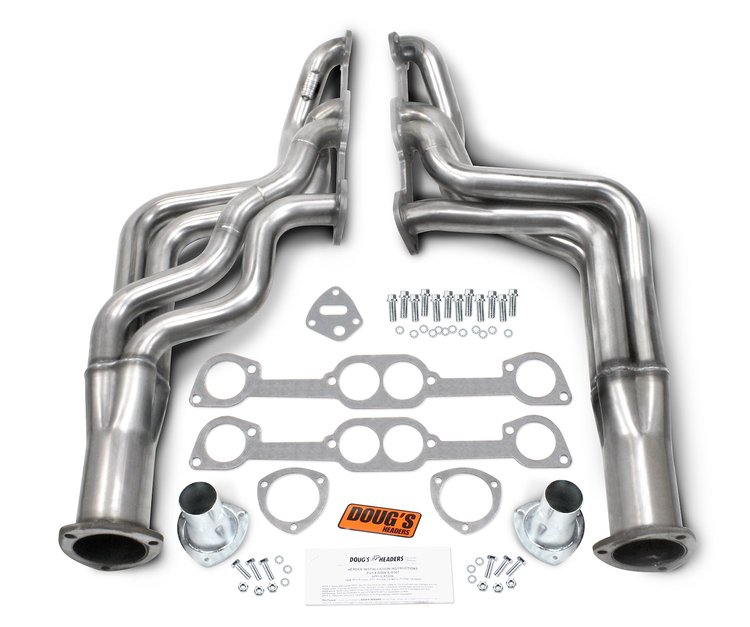

D567-SS Stainless Steel Long-Tube Headers, 1964-1972 Pontiac 326-455, 1-7/8 in. Tube Diameter
$1,19313
Pontiac - 1-7/8'' Tube Diameter
Stainless Steel Long-Tube Headers1964-1972 Pontiac 326-455 1-7/8'' Tube Diameter 3-1/2'' Collector Round Port Shape
Fits:
Fits:
- 1964-1972 GTO, Le Mans, Tempest
Notes:
- Requires removal or modification of locking steering columns if equipped.
- Some factory heads do not have end bolt holes and should be drilled and tapped to assure proper sealing.
- Fits Edelbrock Performer, RAM-Air, Super Duty and H.O. heads only.
- 4 speed applications must use 1964-65 Z-Bar 9776376.
- Applications with scatter shield or factory bell housings with dual starter pockets must use Fram oil filter 410-PH3675 or equivalent.
- Turbo 400 equipped applications must use shorter aftermarket modulator valve (2-3/4' Long).
- Compatible with OEM oil pans as well as Milodon oil pans 697-30355, 697-31660 and 697-31665.
Emission Code:
- The product accompanying this document is legal only for off-highway use(except in California or states that have adopted California emission standards),racing use or for use on pre-emission-controlled motor vehicles/motor vehicleengines (pre-1974 domestic vehicles certified to California standards, pre-1974domestic vehicles certified to federal standards and all pre-1974 foreignvehicles), per the manufacturer's application guide.
| Automatic | Manual | |||||
| A/C | P/B | P/S | Column | Floor | Column | Floor |
| Y | Y | Y | N | Y | N | Y |
Part TypeHeader
BrandDOUG'S HEADERS
Package Height12.0
Package Width21.9
Package Length39.0
Weight44.2 PG
Part CategoryPerformance Parts
PositionN/A
Header FinishNatural
QuantitySold as a pair
Bolts/Studs IncludedYes
Cylinder Head Port ShapeRound
Transmission Mount IncludedNo
Header Material304 Stainless Steel
Gaskets IncludedYes
Weld-UpNo
Brake SystemPower
Collector Attachment3-bolt flange
Flange StyleStandard
TunedNo
Collector Diameter3.5 in (88.9 mm)
Motor Mounts IncludedNo
Part FitmentSemi Universal
Reducers IncludedYes
Primary Tube Gauge18-gauge
Header StyleFull-length
Cross Over Pipe IncludedNo
Catalytic Converter(S) IncludedNo
Primary Tube Diameter1.875 in (47.6 mm)
Vendor Part NumberD567-SS
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
