Metallic Ceramic Coated Headers 1966-1970 Ford/Mercury 390-428
InfoVehicle Info Needed
DOUG'S HEADERSPART NUMBER: 776-D627

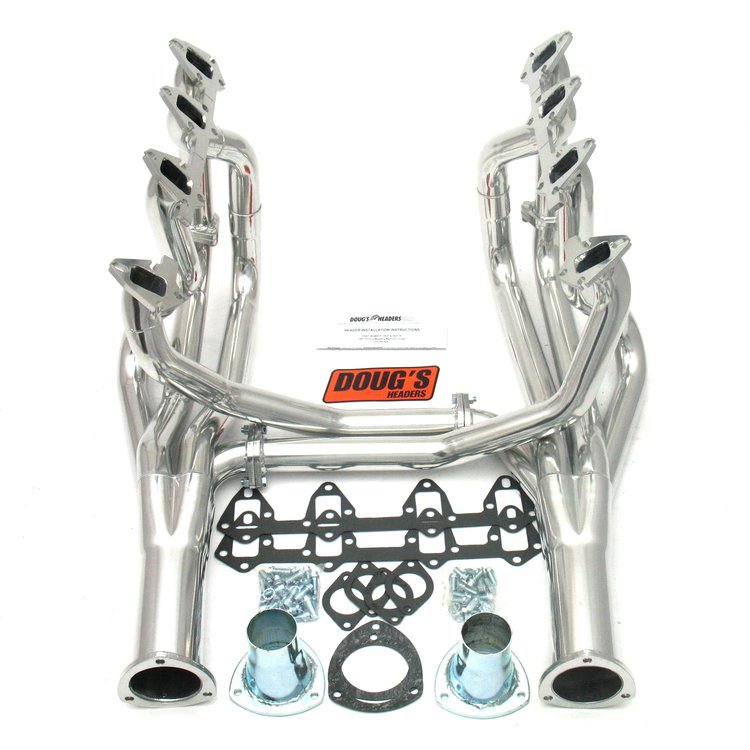

Metallic Ceramic Coated Headers 1966-1970 Ford/Mercury 390-428

$1,38235$1535.94You Save$153.59
ShippingShips on 09/09/2026
Lowest PriceLowest Price Guarantee

Ford 390-428
Metallic Ceramic Coated Headers
  • 1966-1970 Ford/Mercury 390-428
  • 2'' Tube Diameter
  • 3-1/2'' Collector
  • Rectangular Port Shape

    Fits:
    • 1966-1970 Fairlane
    • 1967-1970 Mustang
    • 1967-1970 Cougar

    Notes:

    • Will only fit 16 bolt FE cylinder heads with the top four exhaust bolt holes in line. Will not seal properly on heads with the end upper bolts lower than the center bolts.
    • Header design features two primary pipes crossing behind oil pan for improved fit. Originally designed on factory Cobra Jet Super Sotck Cars.
    • Extremely tight fit between shock towers. Fits better when shock towers are boxed.
    • Will not fit Mustang or Cougar with A/C.

    Emission Code:

    • The product accompanying this document is legal only for off-highway use(except in California or states that have adopted California emission standards),racing use or for use on pre-emission-controlled motor vehicles/motor vehicleengines (pre-1974 domestic vehicles certified to California standards, pre-1974domestic vehicles certified to federal standards and all pre-1974 foreignvehicles), per the manufacturer's application guide.
    AutomaticManual
    A/CP/BP/SColumnFloorColumnFloor
    YYNNYNY
  • Part TypeHeader
    BrandDOUG'S HEADERS
    Package Height12.0
    Package Width22.0
    Package Length39.0
    Weight55.8 PG
    Part CategoryPerformance Parts
    PositionN/A
    Header FinishSilver ceramic coated
    QuantitySold as a pair
    Bolts/Studs IncludedYes
    Cylinder Head Port ShapeRectangular
    Transmission Mount IncludedNo
    Header MaterialSteel
    Gaskets IncludedYes
    Weld-UpNo
    Brake SystemVarious - Application Specific
    Collector Attachment3-bolt flange
    Flange StyleStandard
    TunedNo
    Collector Diameter3.5 in (88.9 mm)
    Motor Mounts IncludedNo
    Part FitmentSemi Universal
    Reducers IncludedYes
    Primary Tube Gauge16-gauge
    Header StyleFull-length
    Cross Over Pipe IncludedNo
    Catalytic Converter(S) IncludedNo
    Primary Tube Diameter2 in (50.8 mm)
    Vendor Part NumberD627
    Package Qty1
    Package TypeEA
